Vetro 511
Fixed shower screen
The fixed shower screen protects the space and the fixtures located next to the shower from splashing water. The fixed shower screen is sturdy and can be efficiently used for protection from water.

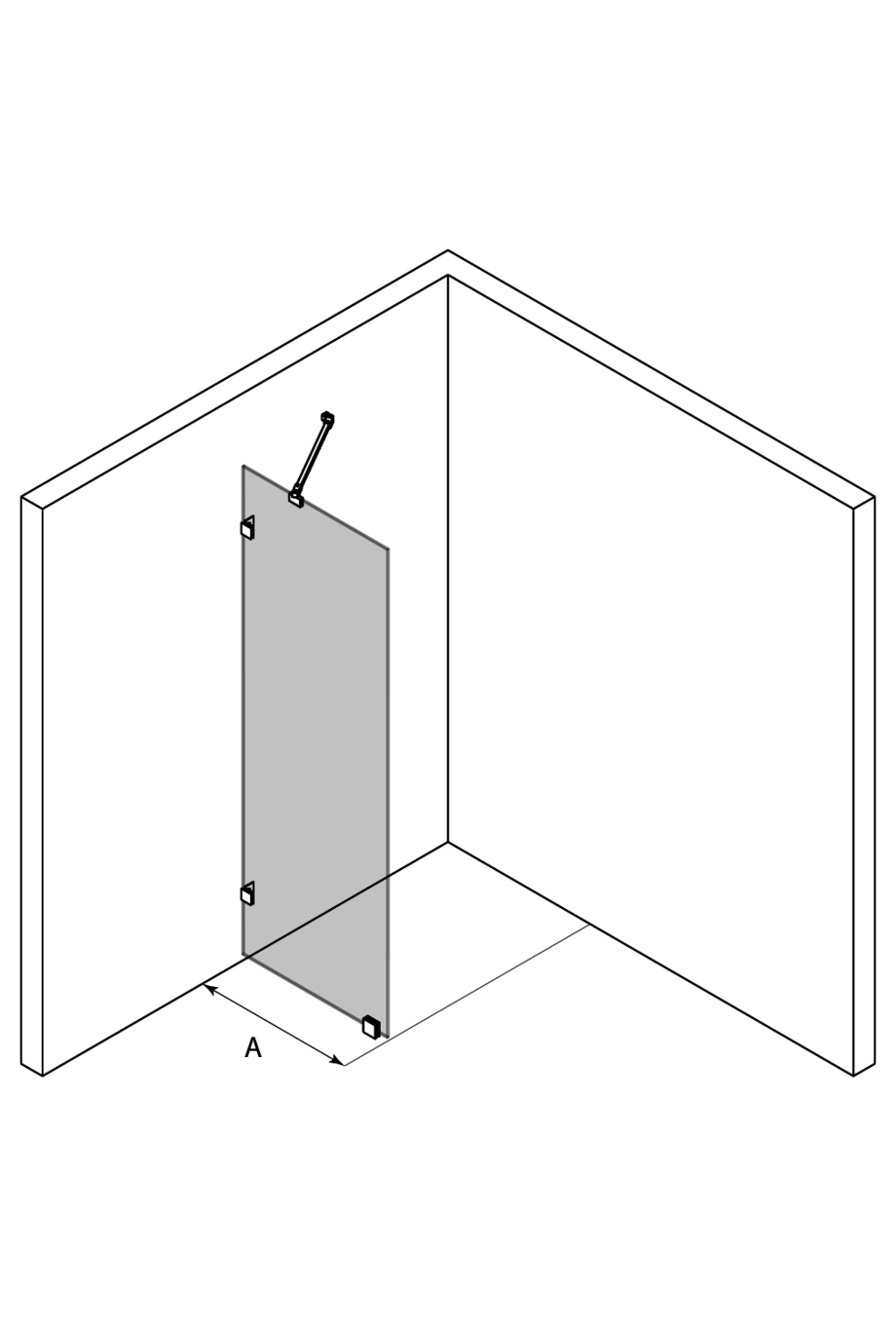

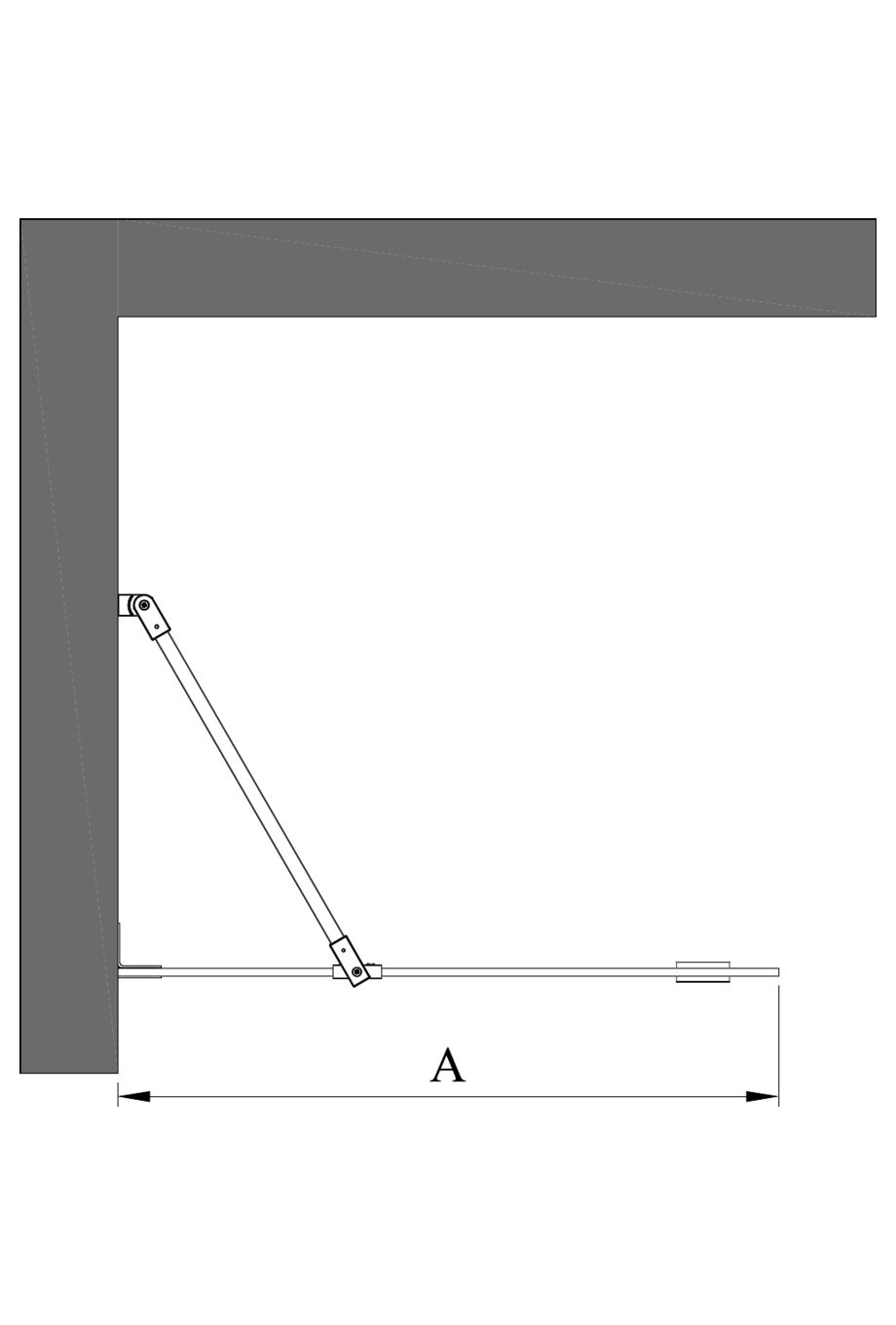

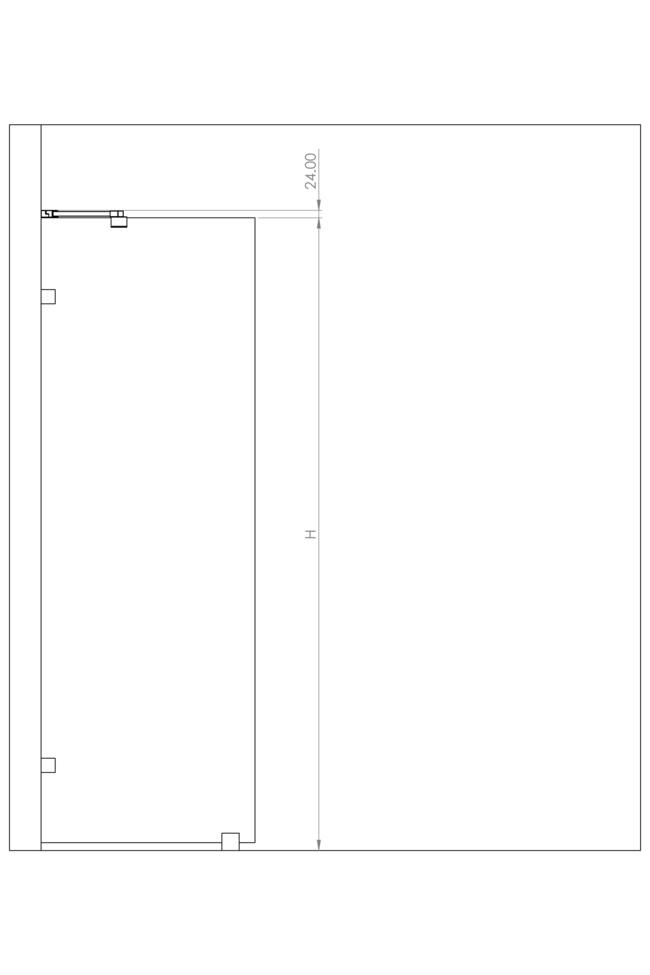

The shower screen is attached by its sides to the building wall by means of
wall mountedfixtures. The panel is supported from the upper edge by the
braces
installed into the corner and from the bottom edge by means of the fixture
glued to the floor, so that a 25 mm gap remains between the panel and the
floor. Between the panel and the floor may be installed a seal (standard
part)
, so that water will not be able to flow under the panel.
Installation guide
Installation services are available in Finland capital (Helsinki, Espoo, Vantaa, Kauniainen, Porvoo, Sipoo) and Tampere (Tampere, Nokia, Kangasala, Lempäälä ja Pirkkala) regions. Service is carried out by manufacturers professional mechanic. When product is ordered with installation service, transport company delivers the product to customer site. When the product has arrived, mechanic will phone customer and agree the exact installation date and time. Installation is done to clean and installation ready surfaces. If there is an old product in the bathroom, you can order the additional service for removal of the old product. Installation work includes besides installation of the product also silicone seaming of wall mounting joints and drilled holes and taking away the installation garbage. If you are unsure about the measures of the product (for example in case of custom sized products), you can order a measurement visit on-site done by the mechanic. In this case the mechanic will fill-in the final measures of the product to the system and the responsibility that measures are correct is carried by the manufacturer.
7 Working days
20 year warranty
The fittings used in the product are manufactured of brass alloy. Surface treatment options are Chrome plated, Brushed, Brass, White (RAL 9016), Black (RAL 9005), Sand (RAL 1019), Mocha (RAL 8025) and Cocoa (RAL 8019). Chrome and Brass are shiny surface treatments, brushed fittings are brushed matte, White, Black, Sand, Mocha and Cocoa fittings are painted.
The product is manufactured of 8 mm thick tempered safety panel (EN 12150). Glassoptions are Transparent, grey, brown, satin, super bright and black. One side of the satin glasses is etched to acquire a velvety feel and the other side is smooth. When choosing a satin glass product, bear in mind that the etched surface of the panel is sensitive to scratches and stains. The black glass is slightly see through in heavy light and almost nontransparent if the space is darker. The super bright glasses are manufactured with the iron removed, thus removing most of the green tint that glasses naturally have. Please note, that productpictures of satin glass use super bright satin of which an offer can be calculated via our customer srevice. All glasses can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size
The total width of the selected product is 378mm.:
The brace mounted to the upper edge of the panel can be replaced by a long side support mounted to the corner. The side support can be used for drying towels or as a rail for a shower curtain.An extension step can be placed under the glass clamp to raise it by 10mm.
Product
Product code
Price
1
Vetro 511
Product code
511-21-4
Price
0.00 €
2
Fixed screen
Chrome/Transparent/A=378 x 2000
Product code
511 21 0038
Price
470.00 €
3
TOTAL
Product code
Price
470.00 €
The total width of the selected product is 378mm.:
