Forma 319

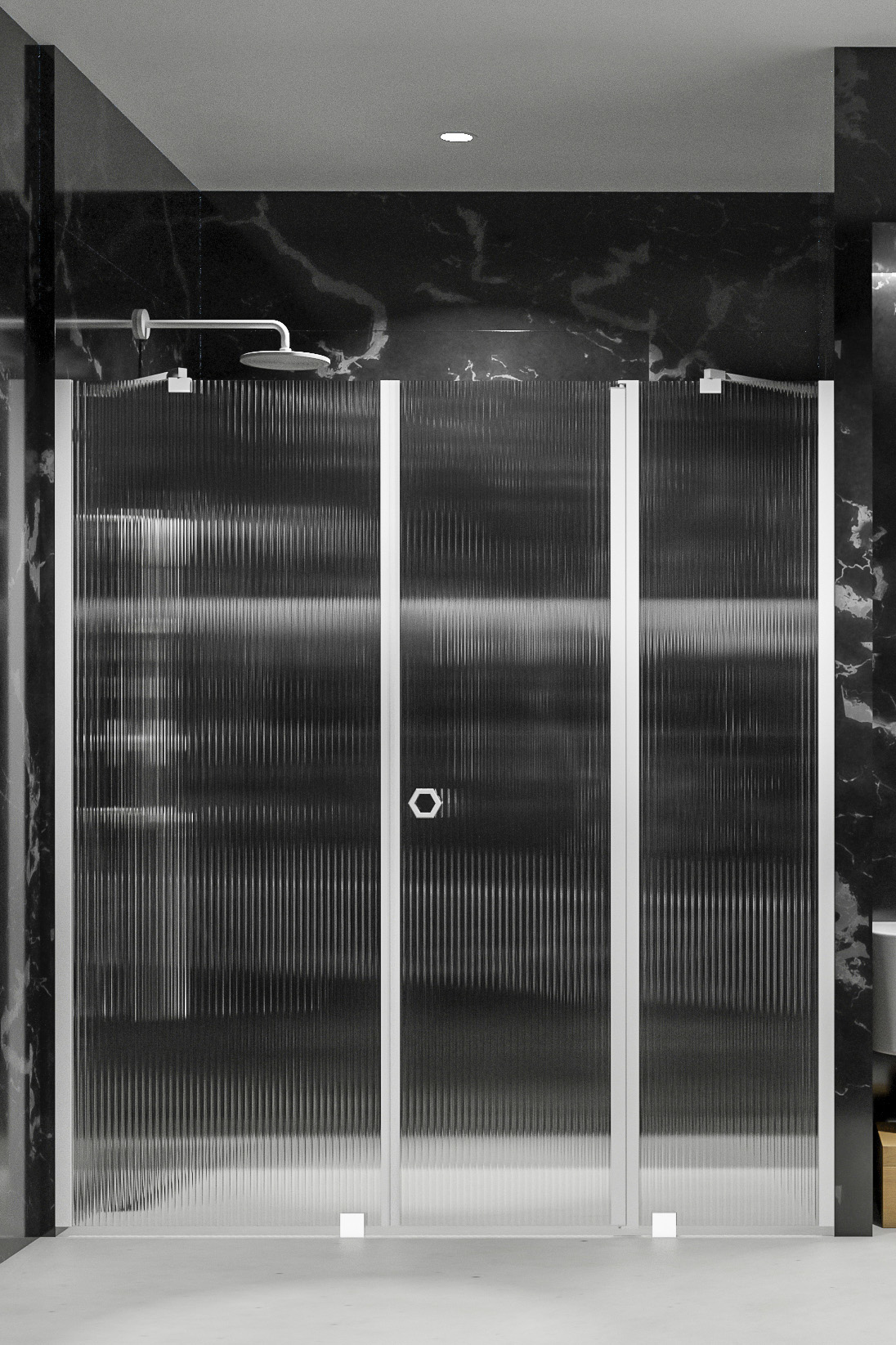

Alcove fitting with a fixed wall and hinged door which has a fixed part

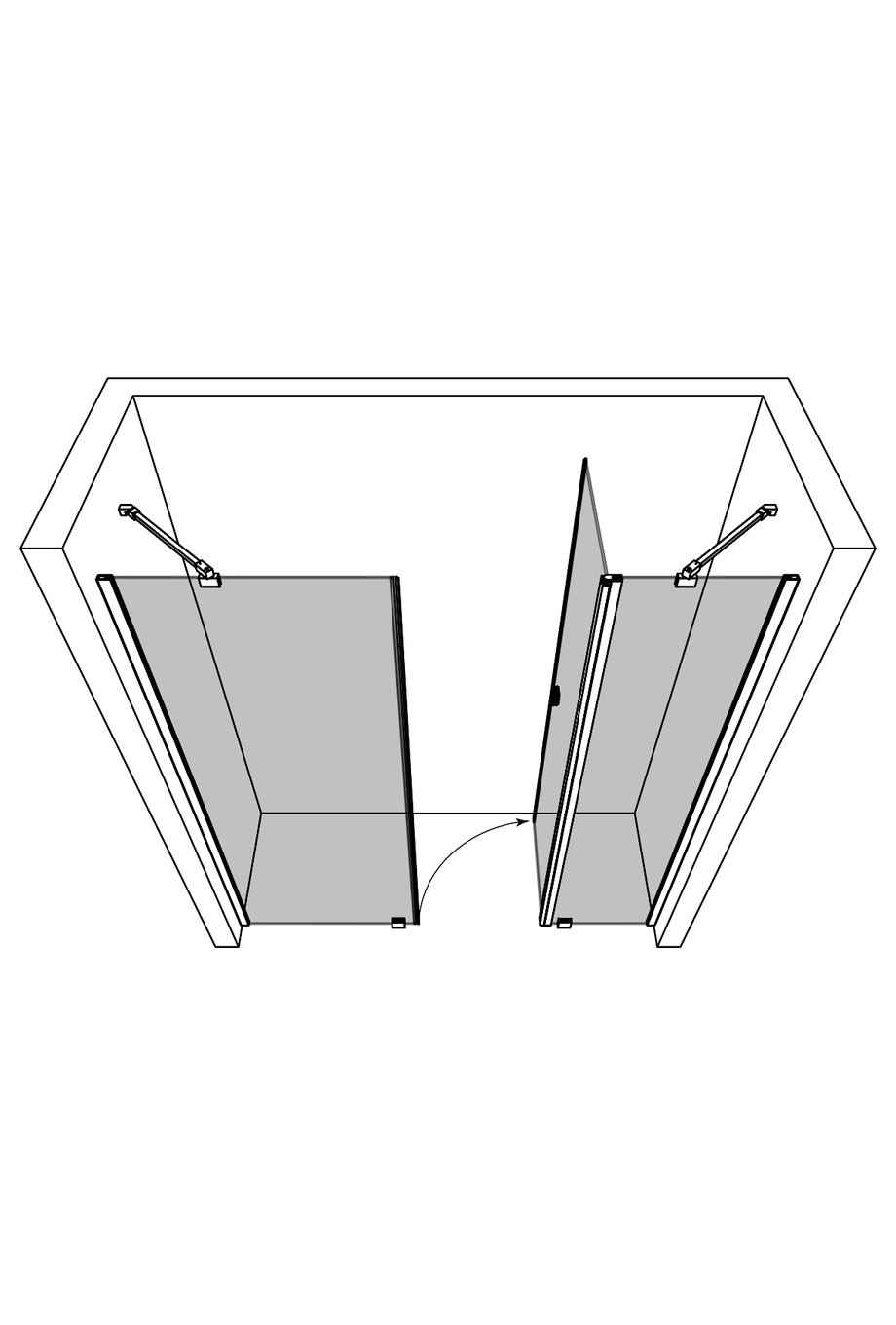

The Alcove fitting configuration consists of two fixed walls one of which has a hinged door. The product is well-suited for a shower enclosure with fixtures on both sides. Fixed walls can be dimensioned according to the depth of the fixtures, so that when opened the door does not hit the fixtures. The door opens 90 degrees to the outside and is equipped with an adjustable centring. The function of the centring is to return the door to the open and closed positions. A pair of magnet seals keeps the doors tightly closed during showering.

Fixed walls are attached from the sides to the walls of the building by means of wall mountedand supported from the top edge by the brace bars installed in the corners as well as from the bottom edge by the fitting glued to the floor. There is a gap of 25 mm between the panel of the fixed walls and the floor. seal (standard part)s may be installed between the panel and the Floor, in order to prevent water from flowing under the panel. At the bottom edge of the door panel can be installed along the bottom edge of the door panel. Installation guide

Icon

11 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and bronze are smooth surfaced and transparent glasses. Chinchilla, satin and reeded glasses are not fully transparent, details cannot be made out through the panel. Chinchilla and reeded are textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 40mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm and it can be grooved for example for the inlet of the surface water pipes.

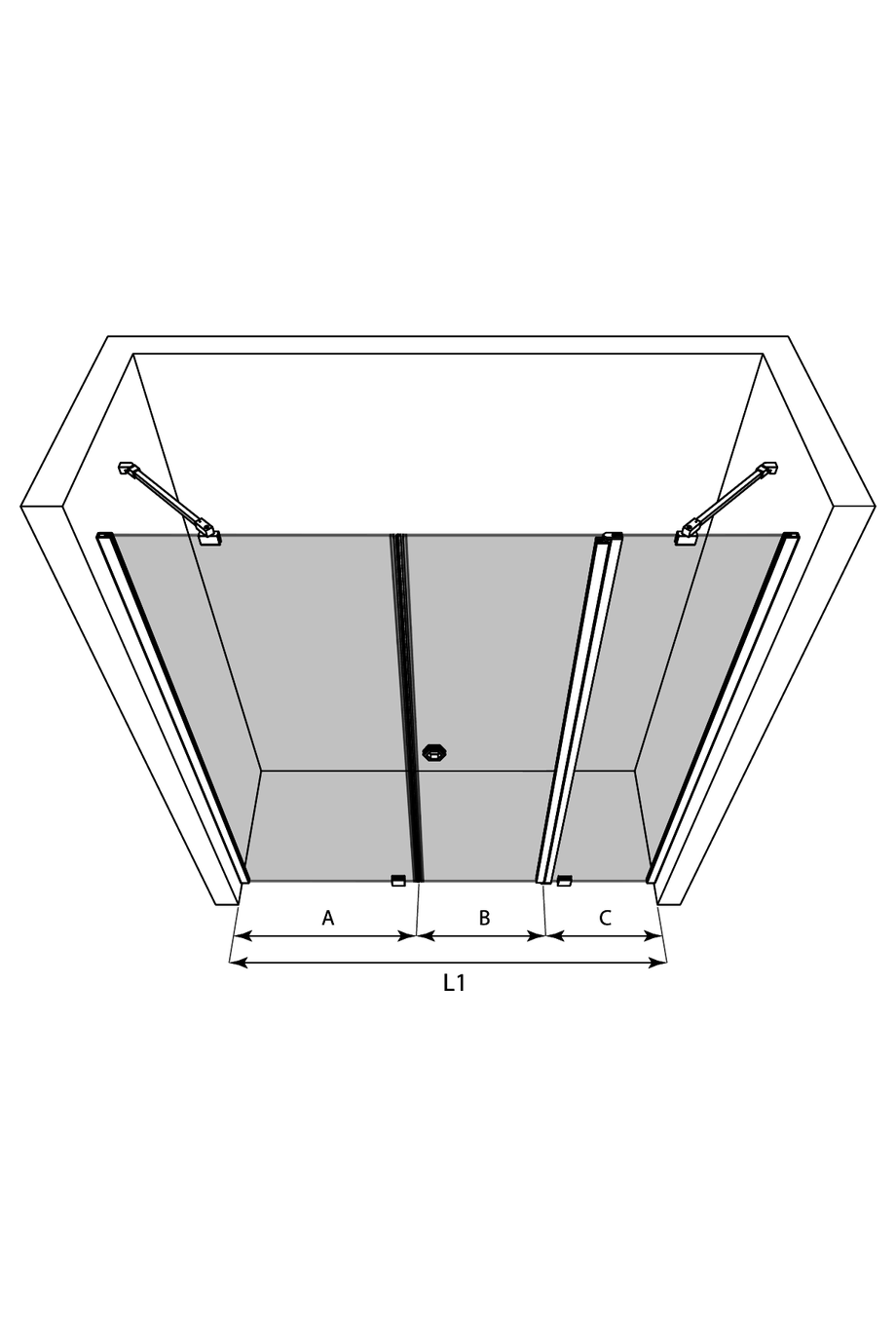

Product size

Alcove fixed screen (A)

X

Alcove hinged door (B)

X

Alcove fixed screen (C)

X

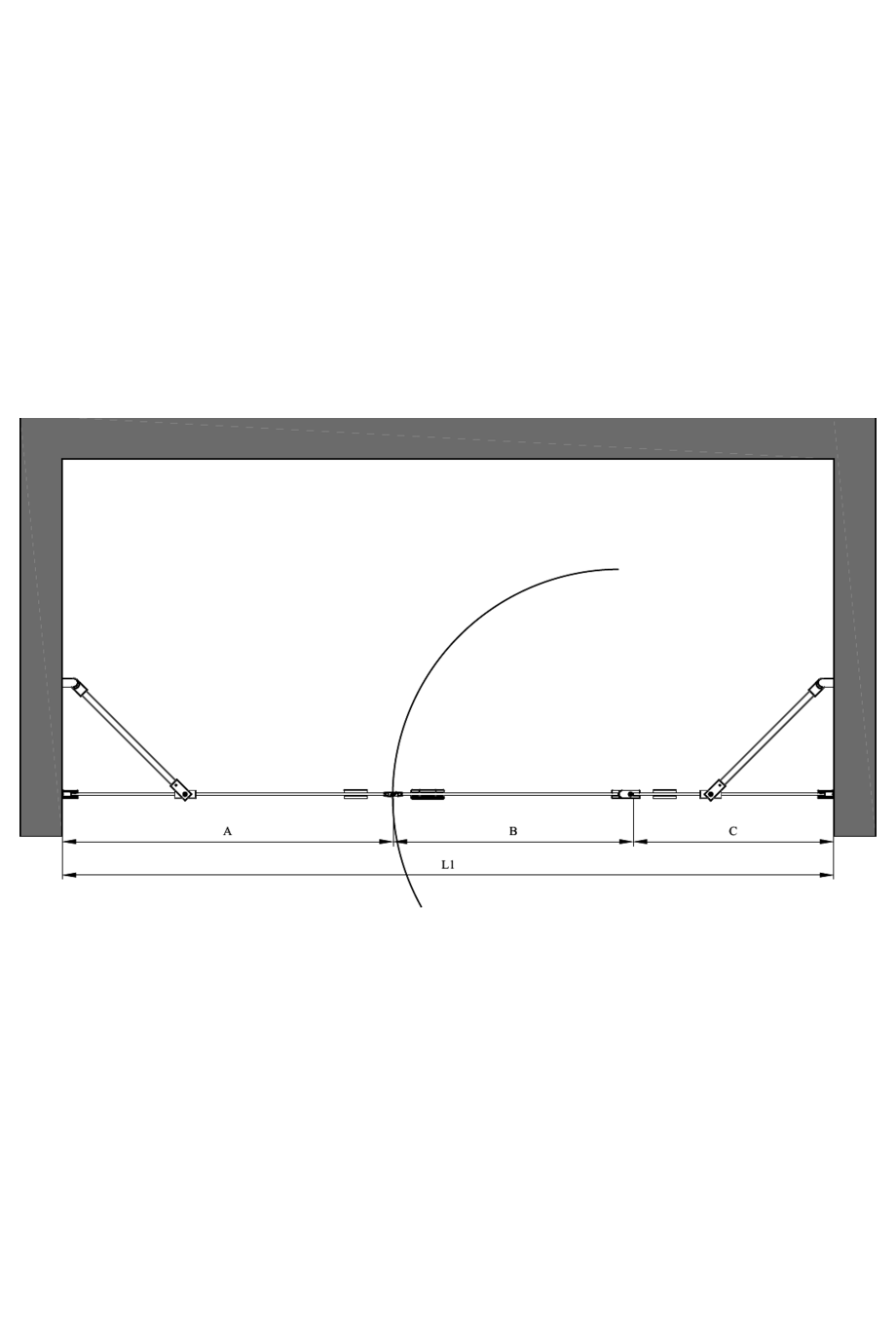

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1148mm
- At its widest: 1188mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Please select handle model:

Product

Product code

Price

1

Forma 319

Product code

319-61-111

Price

0.00 €

2

Forma 301 Alcove fixed screen
White painted/Transparent/A=393 x 2025

Product code

301 61 0038

Price

346.00 €

3

Forma 304 Alcove hinged door
White painted/Transparent/B=375 x 2025

Product code

304 61 1036

Price

357.00 €

4

Forma 304/305 Alcove fixed screen
White painted/Transparent/C=380 x 2025

Product code

304 61 0038

Price

378.00 €

5

Magnet seal pair

Product code

F06 6L 0001

Price

21.00 €

6

Hexagonal handle chrome

Product code

F01 RL MMMM

Price

63.00 €

7

TOTAL

Product code

Price

1165.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1148mm
- At its widest: 1188mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:
