Vetro 550

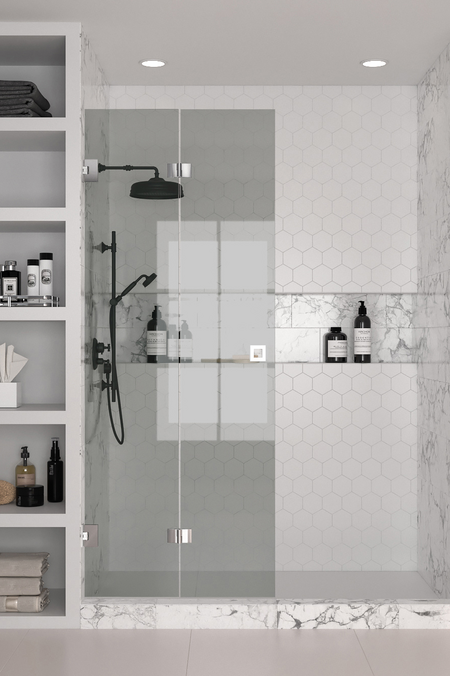

Alcove fitting with a framed fixed wall and folding door

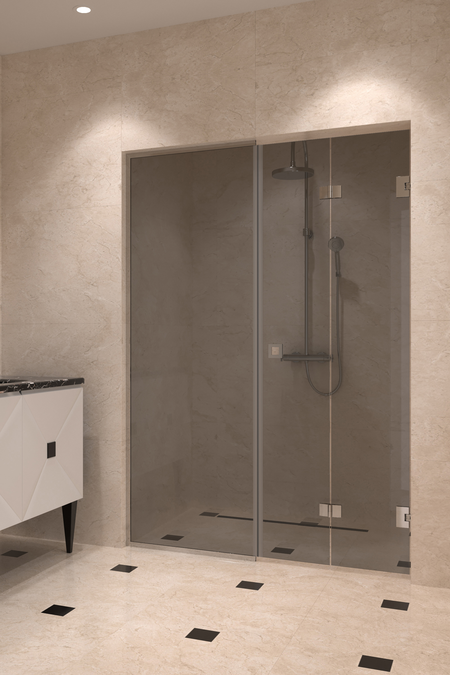

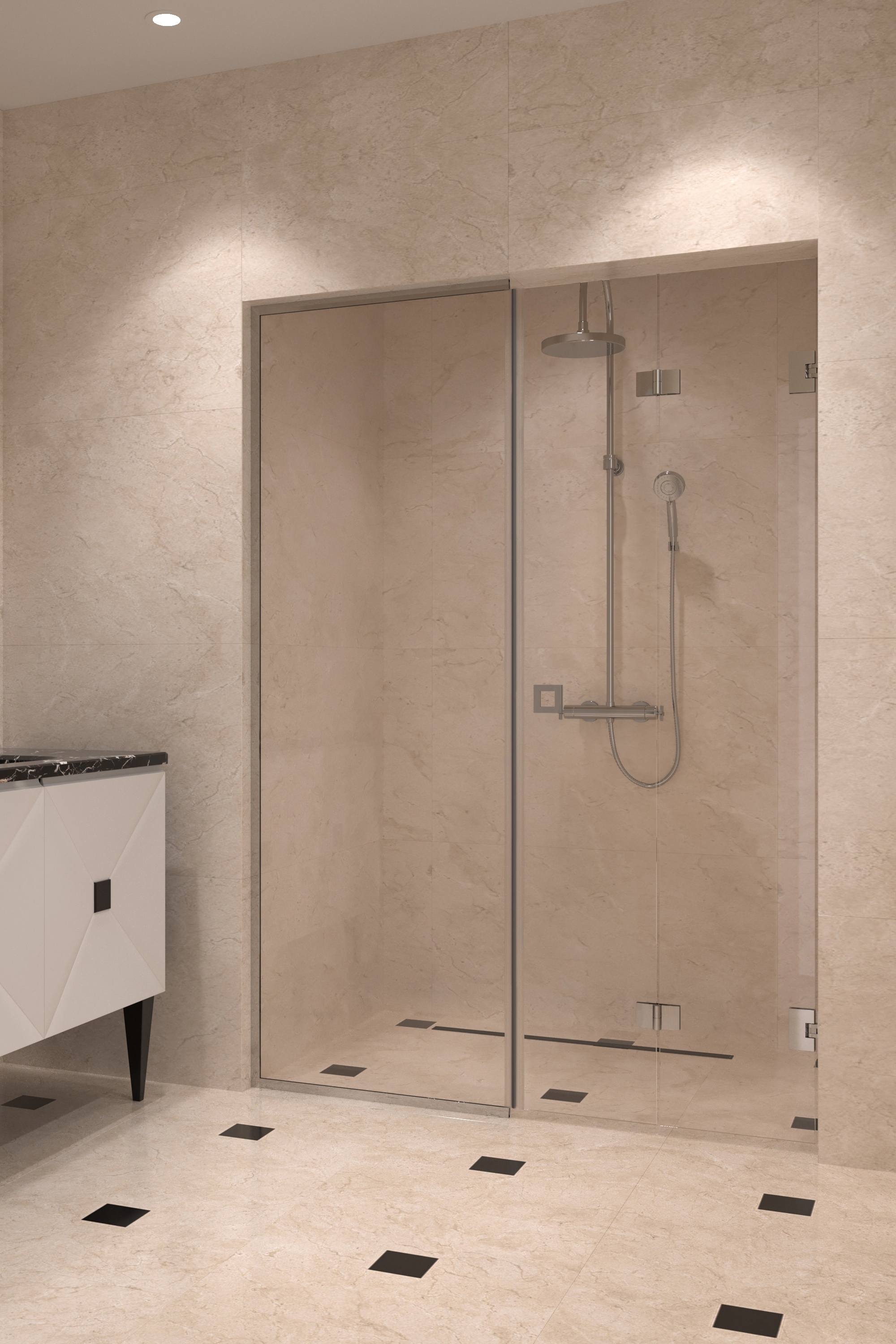

Alcove fixture consists of a fixed wall and a folding door. The product is well-suited for a shower enclosure outside of which on one side is fixtures and on the other side the space is cramped so that the door may not have enough space to properly open outwards. The folding door does not require space for opening outside the shower area; instead, the door folds inside the shower area so that the door panels fold into a small space against the wall of the building. Fixed wall and door can be dimensioned so that the fixed wall protects the fixtures and the door is of the width of the available space.

The door rotates 90 degrees in both directionsand is equipped with an adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition the outer panel turns 180 degrees in relation to the inner panel so that the panels fold against each other into the inside portion of the shower area. A magnet seal keeps the door tightly closed during showering.

Icon

26 Working days

Icon

20 year warranty

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

Shower wall is manufactured according to custom measures.

Product size

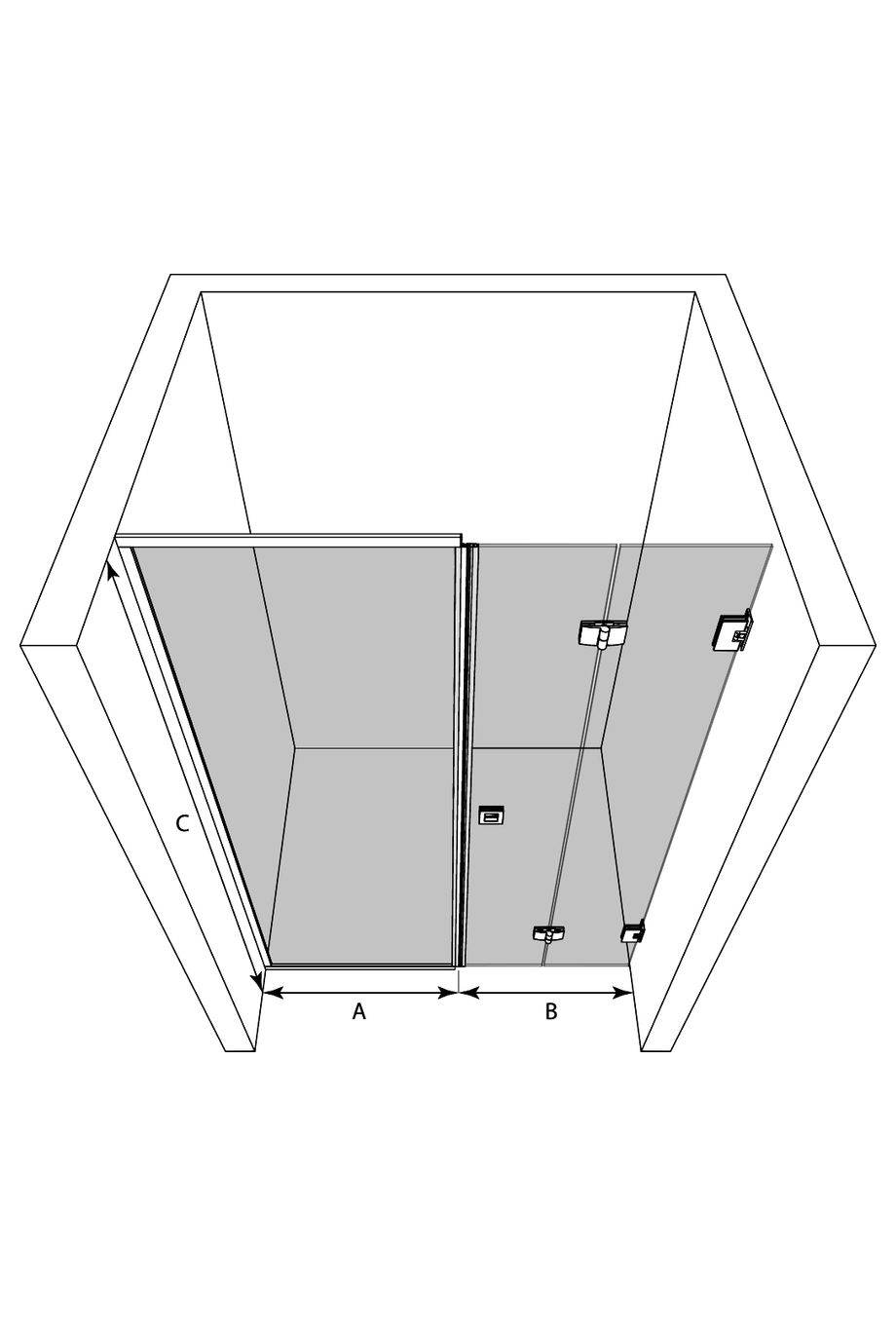

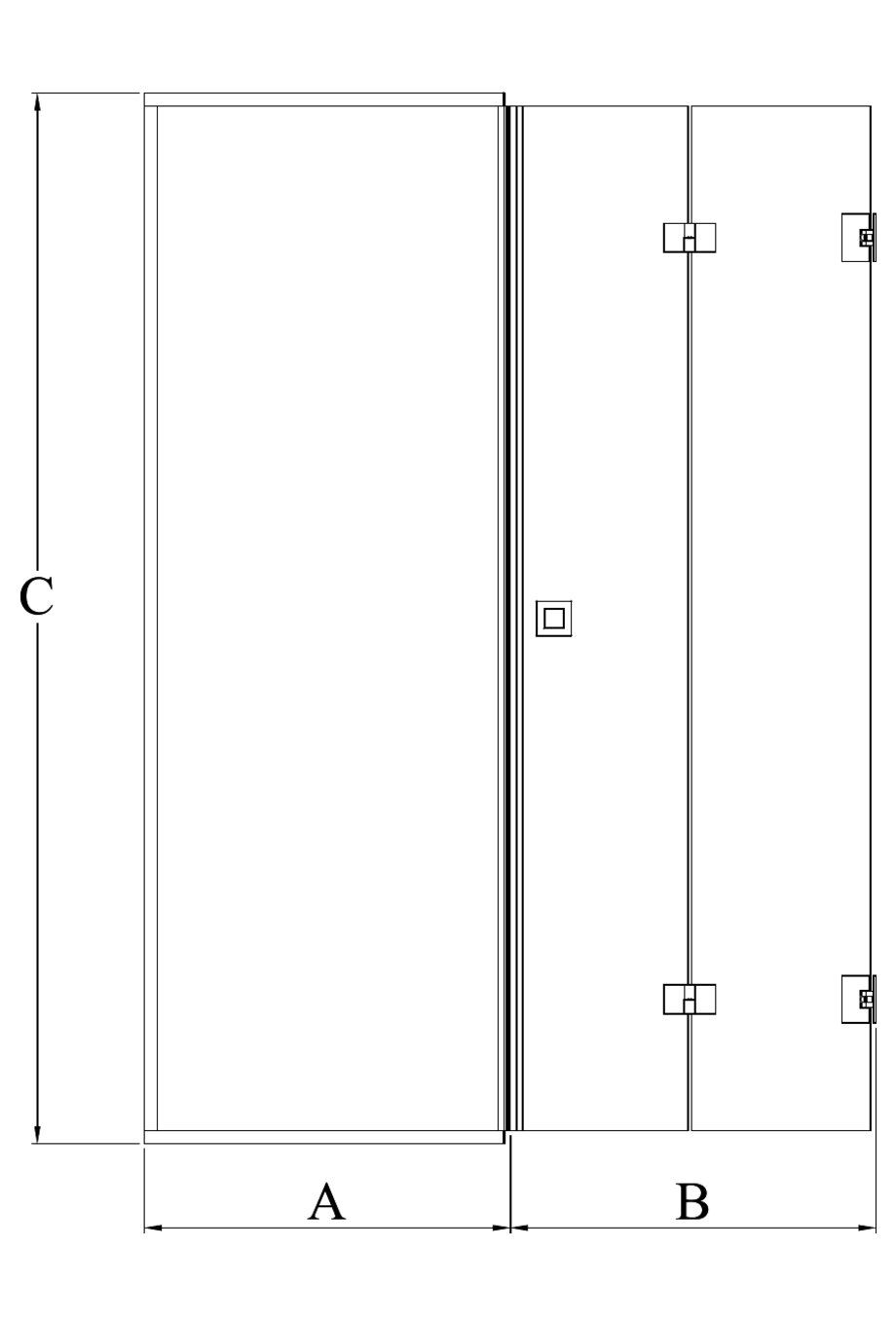

The selected product can be installed into the opening the total width L1 of which is 1300mm and the total length L2 2000mm.:

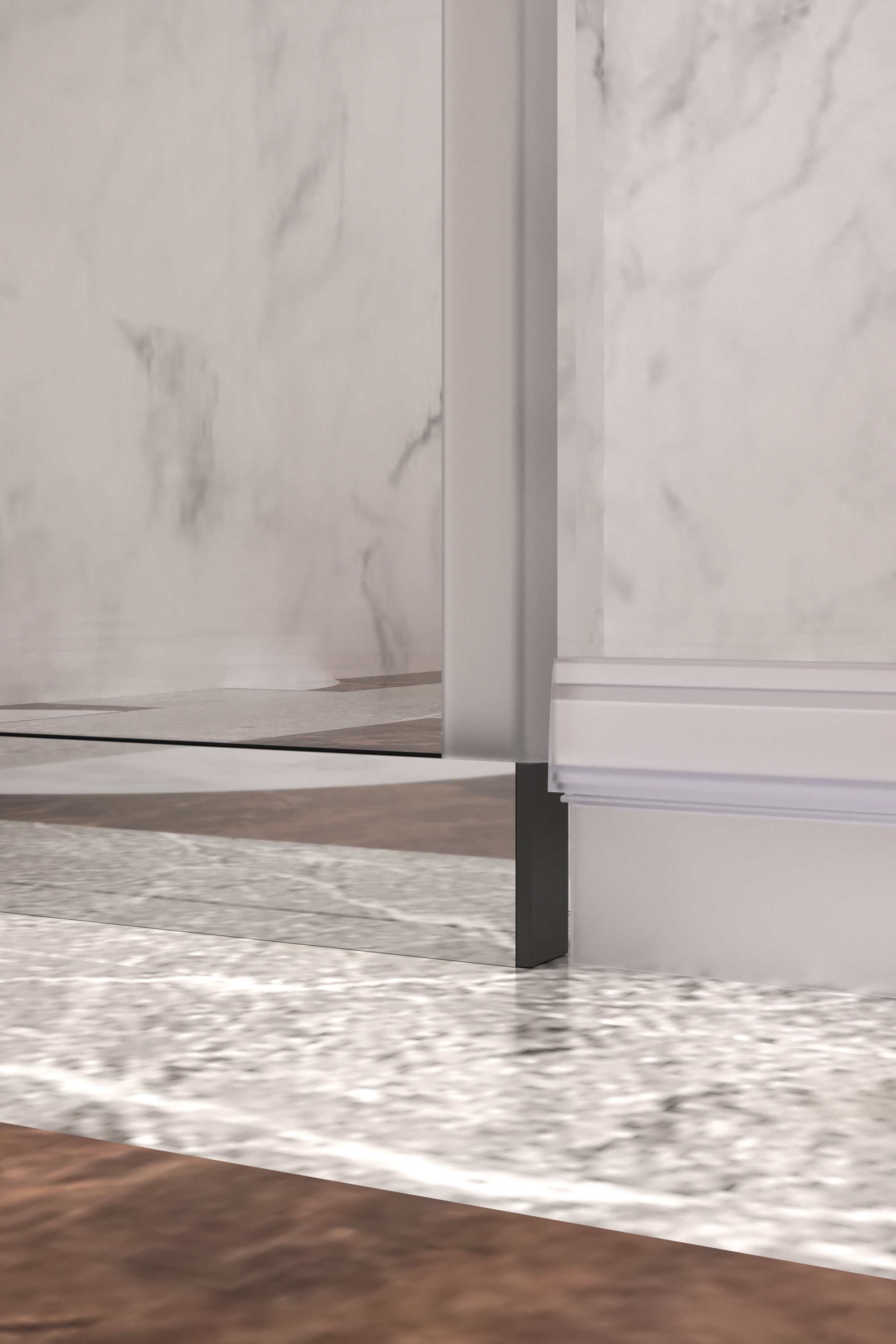

The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Choose handle

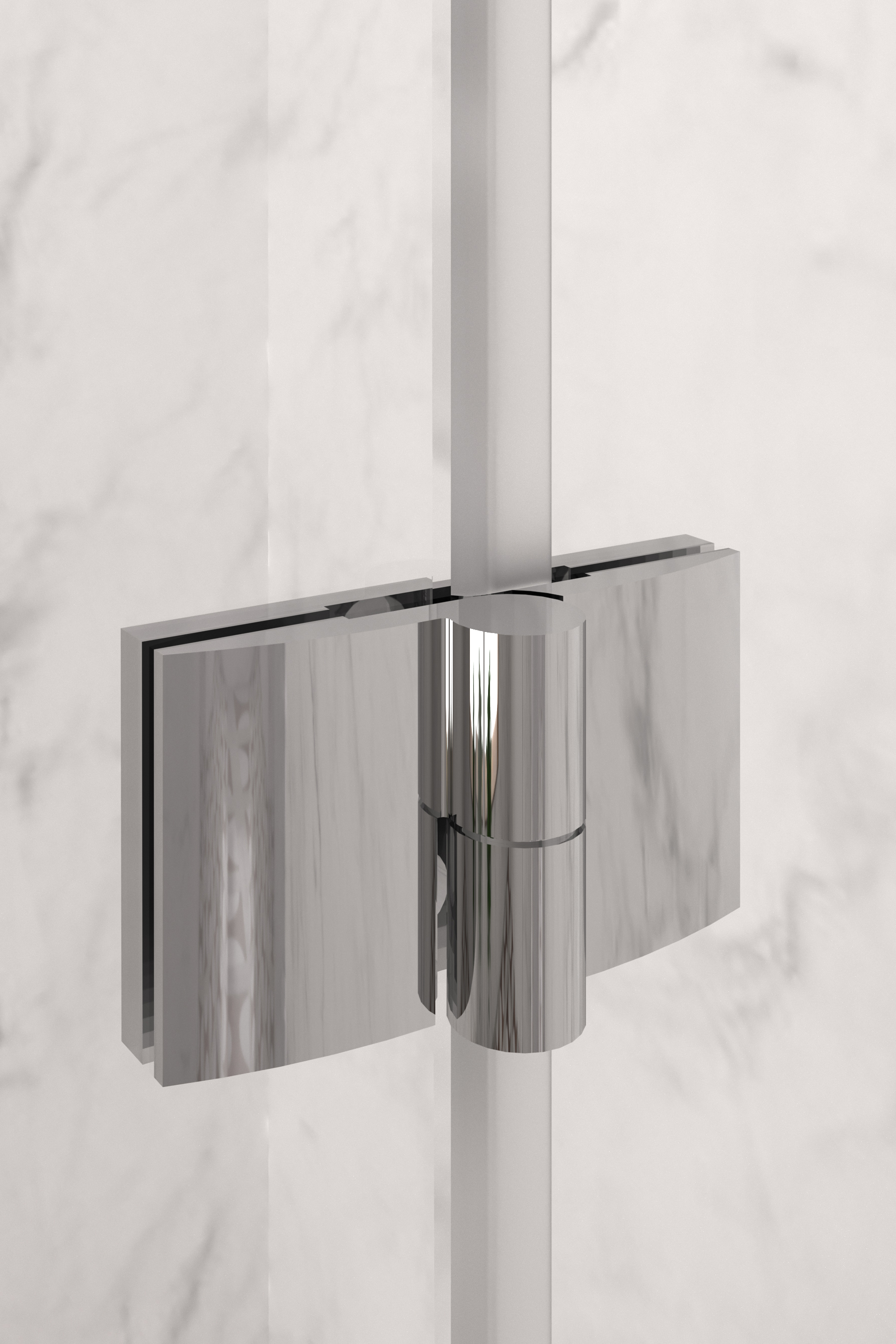

The middle hinges of the folding door have handedness. When ordering, you must choose whether the folding door is to be installed to the left or the right side when viewed from outside of the shower area. Changing handedness afterwards requires changing the middle hinges initially installed in the factory with others.

Product

Product code

Price

1

Vetro 550

Product code

550-21-00

Price

0.00 €

2

Vetro 516 Alcove fixed screen
Chrome plated/Transparent/A=787 x 2000

Product code

516 21 0000

Price

650.00 €

3

Vetro 513 Alcove folding door
Chrome plated/Transparent/B=487 x 1965

Product code

513 21 0000

Price

610.00 €

4

Magnet seal pair

Product code

915 2L 0000

Price

40.00 €

5

Left

Product code

961 RL MMMM

Price

0.00 €

6

Round handle

Product code

Y45 2L MMMM

Price

25.00 €

7

TOTAL

Product code

Price

1325.00 €

The selected product can be installed into the opening the total width L1 of which is 1300mm and the total length L2 2000mm.:
