Bläk 89S Tokyo

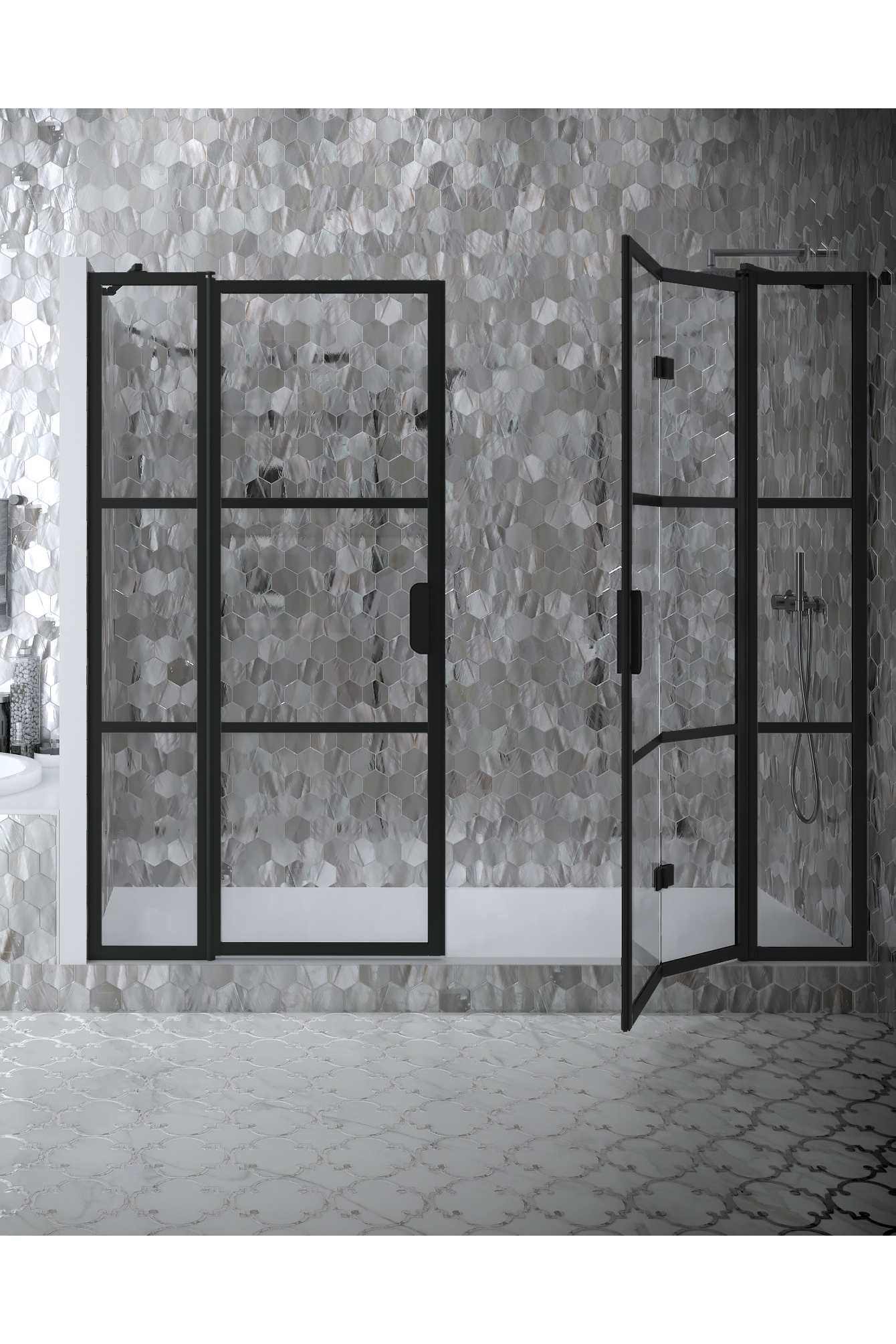

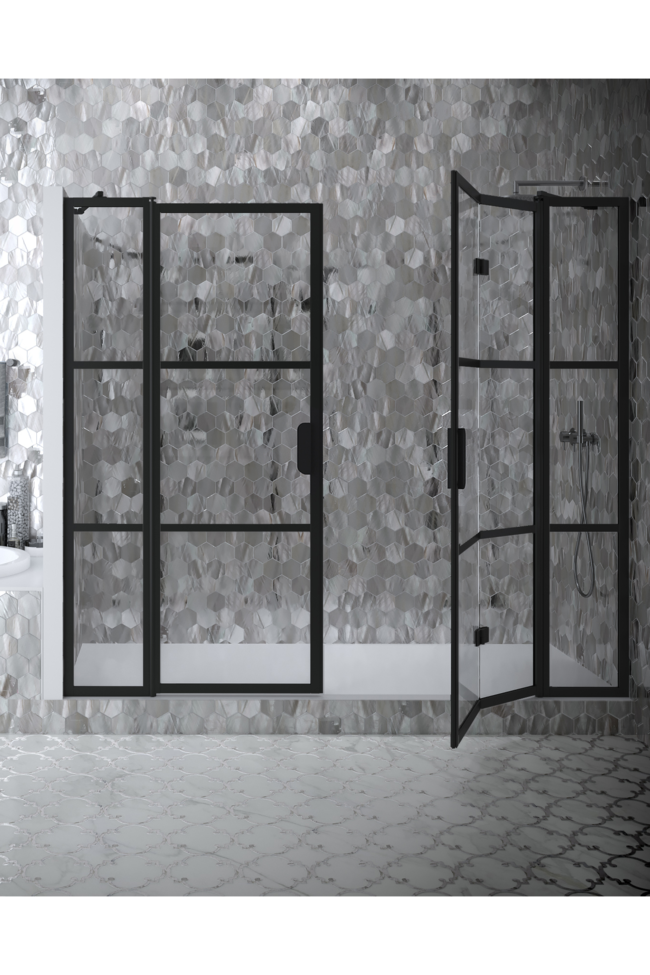

Alcove fitting with a hinged and folding door with fixed parts

The Alcove fitting configuration consists of two fixed walls, into one of which is a hinged folding door and the other a hinged door have been installed. The product is well-suited for a shower enclosure on the other side of which are fixtures on the external side of the shower and on the other side on the internal side of the shower and where the doors may not necessarily have enough space to open outside to both sides Folding door does not require space for opening from outside of the shower area, but instead folds into the small space inside the shower area in the direction of the building wall. The fixed wall to which the folding door is hinged can be dimensioned according to the fixture (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. Correspondingly, the fixed wall to which the hinged door has been hinged can be dimensioned according to the fixtures outside of the shower area such that the space remains free. The doors can be d

The fixed panels are mounted to the building wall using wall mounting profiles on each side of the enclosure space.The door panels are attached to the wall fixed panels from both sides.The support bar is set up from the top edge of the fixed panel and screwed into the building wall.Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention.Magnet seals are installed on each of the doorway panels to keep door tightly closed.

Icon

19 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.

The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions. The wall mounted profiles have the total of 0mm adjustment tolerance The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. For the purposes of accommodating the fitting into the opening, one or more extension profiles (optional accessory). One extension profile extends the width of the alcove fitting by 34mm(door), 40mmm(fixed panel) and it can be grooved for example for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected instead when ordering.

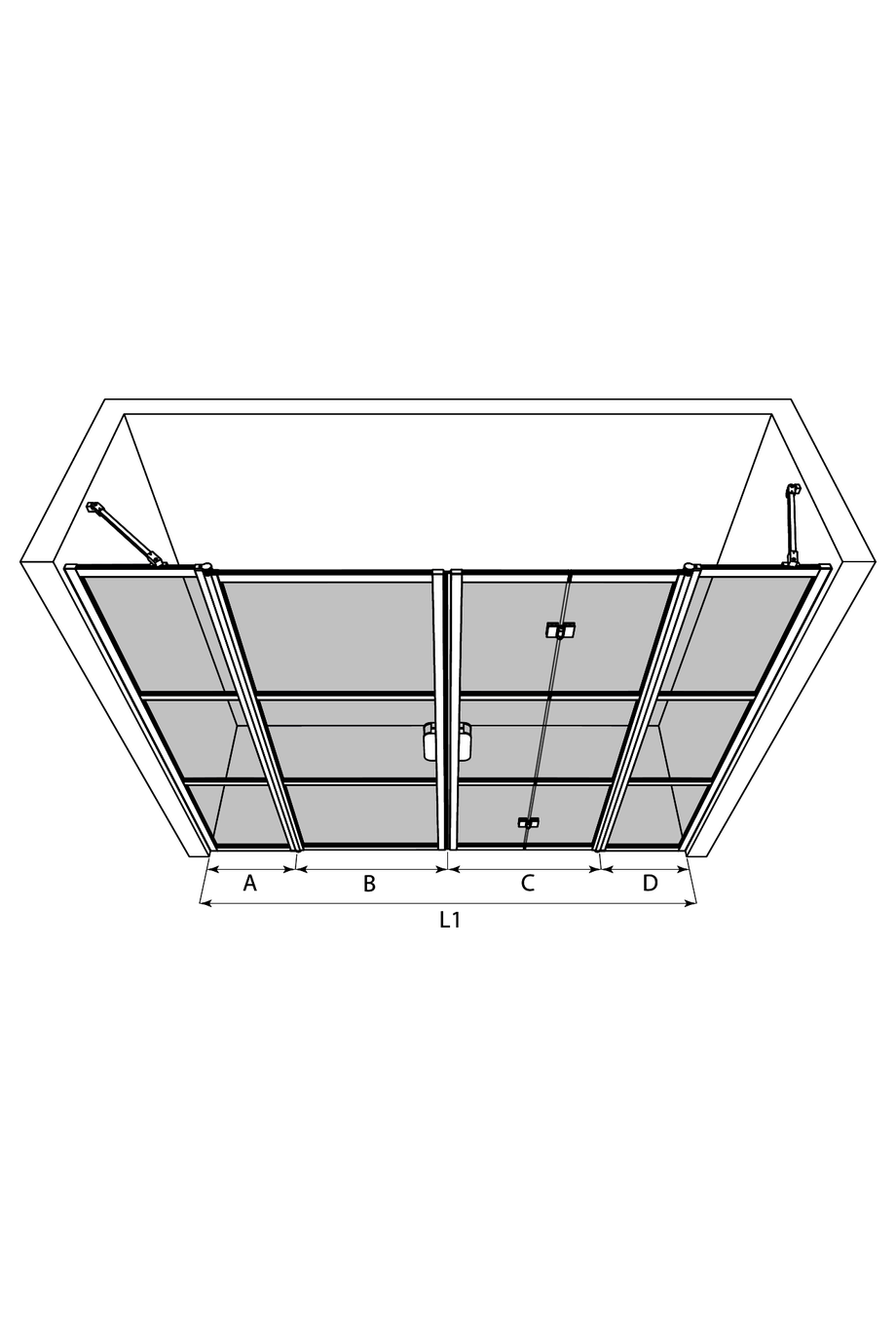

Product size

Alcove fixed screen (A)

X

Alcove hinged door (B)

X

Alcove hinged door (C)

X

Alcove fixed screen (D)

X

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1499mm
- At its widest: 1499mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Product

Product code

Price

1

Bläk 89S Tokyo

Product code

89S-61-1111

Price

0.00 €

2

Bläk 714 Alcove fixed screen
White painted/Transparent/A=260 x 1950

Product code

714 61 0026

Price

295.00 €

3

Blak 714 Alcove hinged door
White painted/Transparent/B=347 x 1950

Product code

714 61 1033

Price

295.00 €

4

Blak 715 Alcove hinged door
White painted/Transparent/C=632 x 1950

Product code

715 61 0062

Price

395.00 €

5

Bläk 714 Alcove fixed screen
White painted/Transparent/D=260 x 1950

Product code

714 61 0026

Price

295.00 €

6

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

7

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

8

Magnet seal pair

Product code

705 RL 0001

Price

40.00 €

9

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

10

TOTAL

Product code

Price

1620.00 €

The selected combination can be installed into the opening (L1) the width of which is:
- At is narrowest: 1499mm
- At its widest: 1499mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls. Note! The parts of the combination can also be installed in the direction opposite to the direction shown in the layout.:

EAN: 6418379001247
