Bläk 869 New York

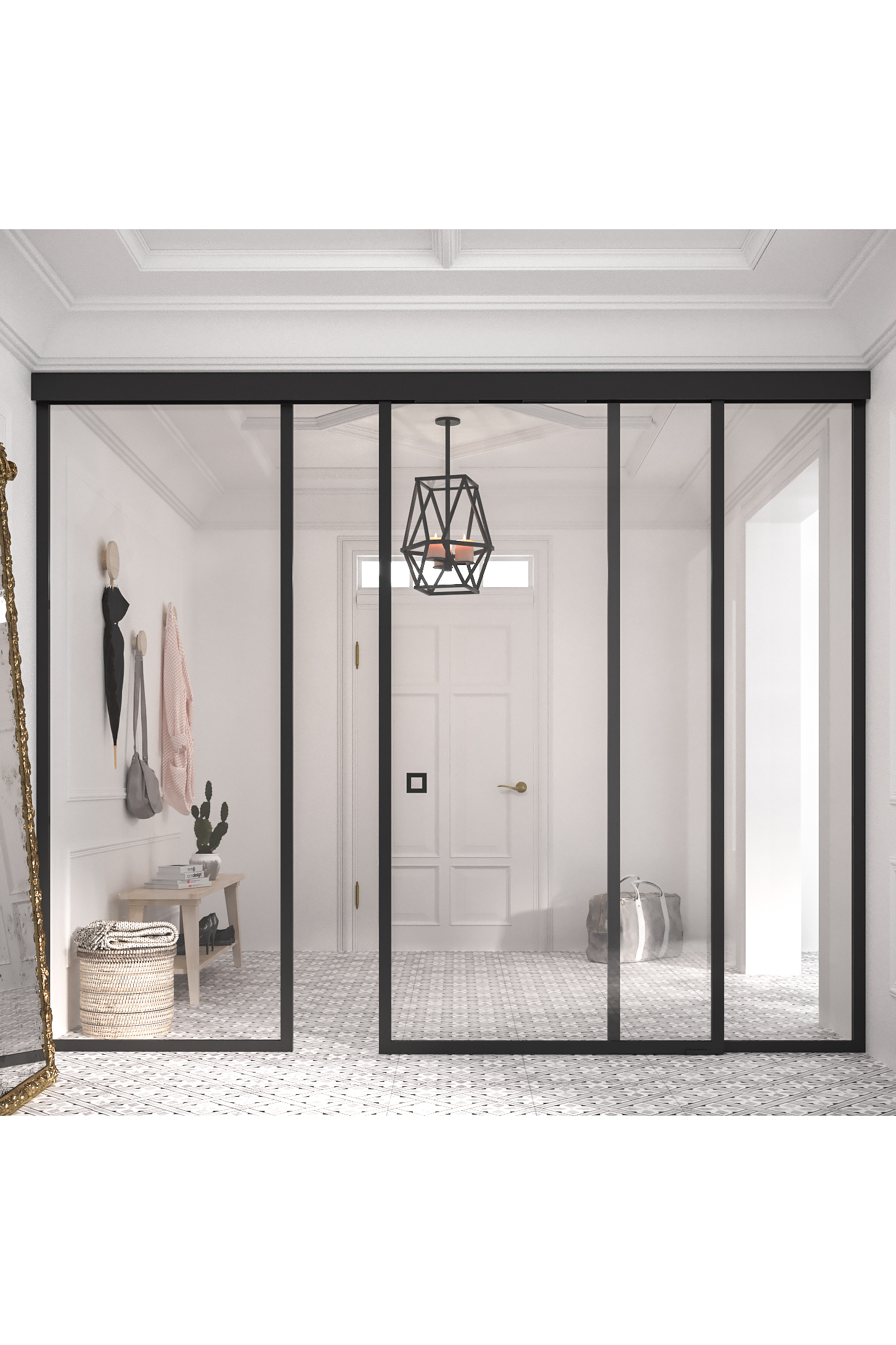

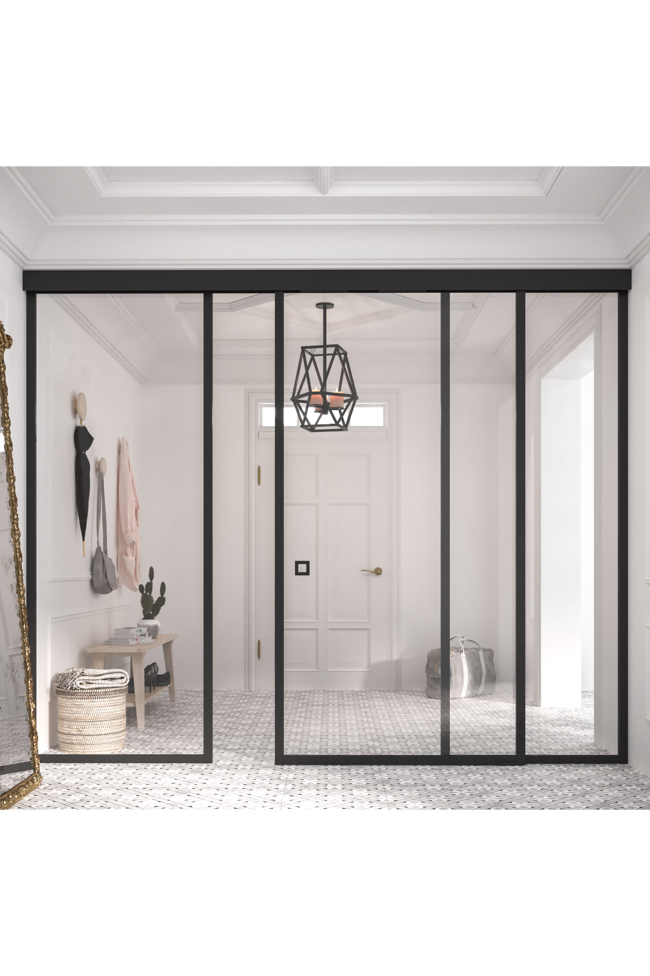

Sliding door with soft closing mechanism and 2 fixed walls

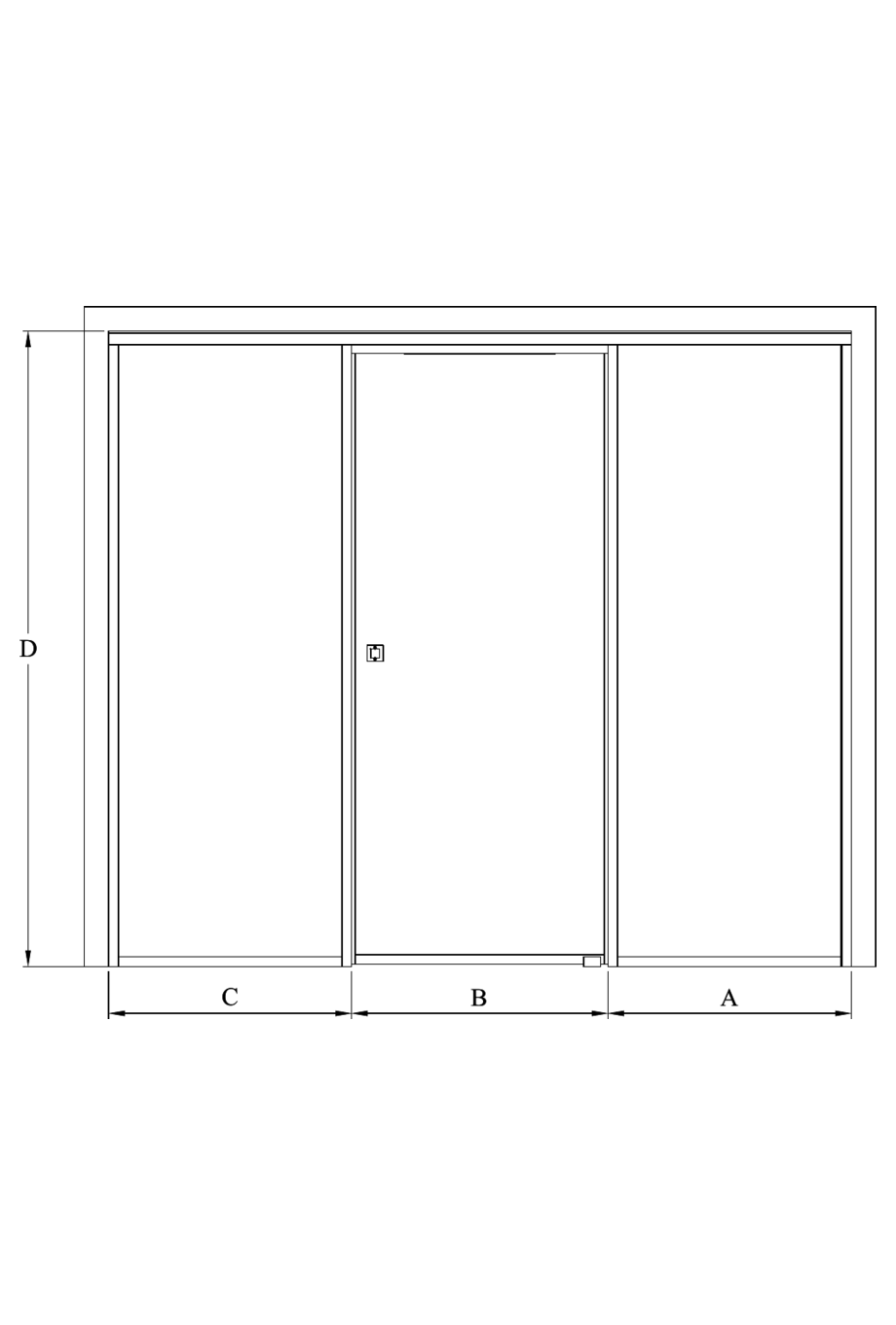

The sliding door with two fixed panels glass wall consists of fixed wall panels,a sliding door panel and ceiling mounted sliding mechanism. Sliding door fixture takes up very little space in the room, a quality sliding mechanism and a floor guide fitting provides a smooth and safe door movement. The doors are equipped with soft closing mechanism which cushions the closing and gently pulls the door into position. Handle height is 0.48H (Height) (as per 2D drawing).
The sliding rail profile is fixed to the ceiling.The sliding mechanism is affixed to the top of the door panel before being mounted on the sliding profile.The fixed wall panel is mounted to the top profile and a floor fitting profile.The fixed wall panels are mounted to the top profile and floor fitting profiles on each side of the enclosure.A door guide is installed on the floor.The sliding rail profile is covered from the front and sides with cover plates
21 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. Profiles are painted black (RAL 9005) through powder coating.
The product is manufactured of 8mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.
Glass wall is manufactured according to custom dimensions.
Product size
:
Product
Product code
Price
1
Bläk 869 New York
Product code
869-91-000
Price
2934.00 €
2
Blak sliding Fixed panel A
Black painted/Transparent=800 x 1900
Product code
751 91 0000
Price
0.00 €
3
Blak ceiling Door
Black painted/Transparent=800 x 1900
Product code
752 91 0000
Price
0.00 €
4
Blak sliding Fixed panel B
Black painted/Transparent=700 x 1900
Product code
751 91 0000
Price
0.00 €
5
Ceiling mounted Sliding profiles
Black painted/Transparent=10 x 2300
Product code
755 91 0000
Price
0.00 €
6
Blak sliding Broad ceiling list
Black painted/Transparent=10 x 2300
Product code
756 91 0000
Price
0.00 €
7
Maintenance manual Maintenance guide
/=1000 x 1000
Product code
8/25 7ARLM
Price
0.00 €
8
Blak Sliding Installation instructions
/=
Product code
8/25 5DRLM
Price
0.00 €
9
TOTAL
Product code
Price
2934.00 €
:
