Bläk 783 Paris

Glass wall with fixed panel on handle side

The glass wall configuration consists of a fixed panel and a door.

The door opens 90 degrees to the outside and is equipped with an adjustable centring. The function of the centering is to return the door to the open and closed positions.

The fixed wall panel is attached to the building wall and floor the using wall mounting profile and floor fitting profile. The door panel is mounted to the other side of the enclosure using wall mounting profile. The panels are secured with self-drilling screws. The top of the glass wall is secured by a long profile, covering the top of the unit from one side, and a short profile, covering the fixed part on the side which the door opens to. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.

Icon

26 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

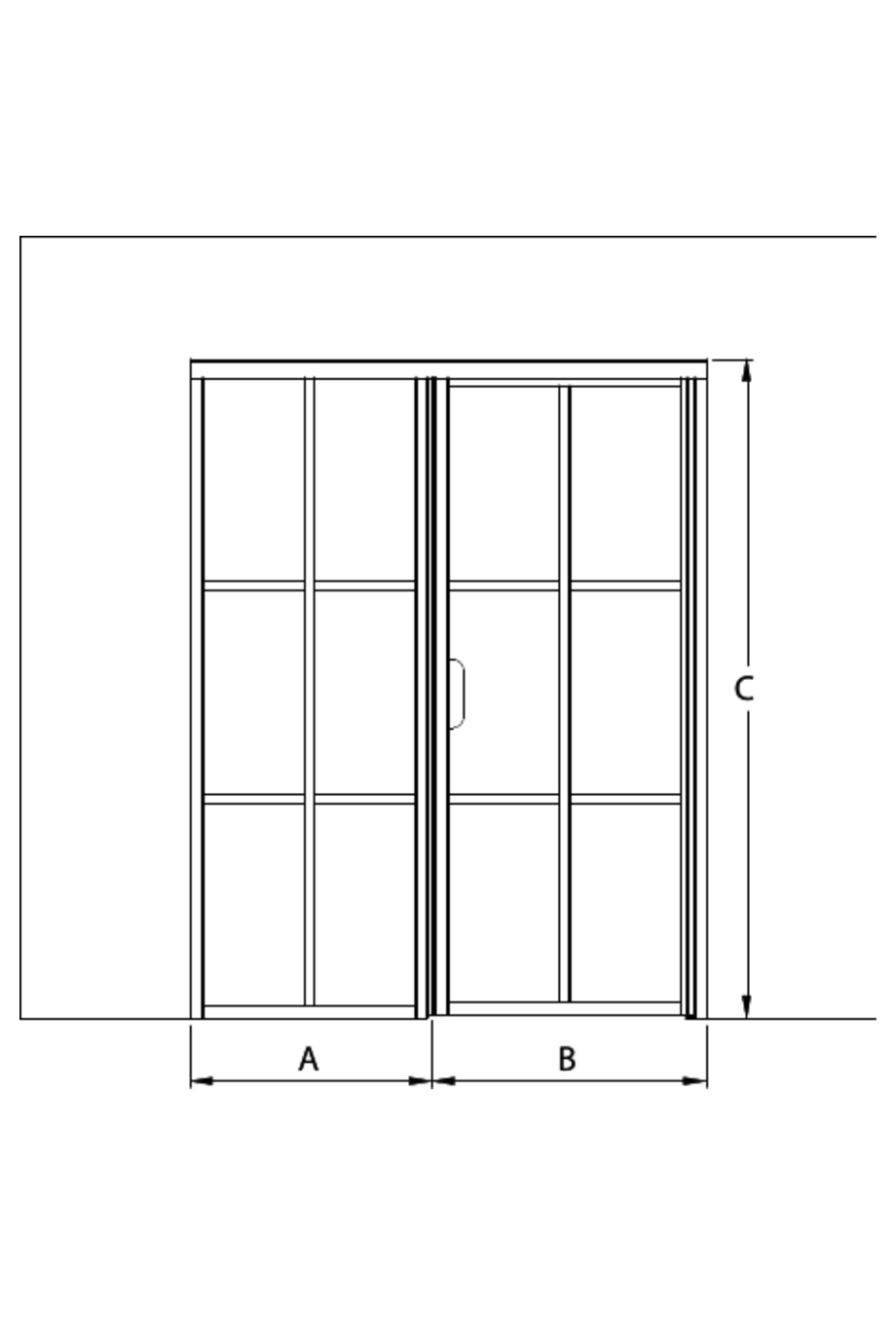

The unit is always manufactured according to custom dimensions. When selecting the size, enter the width of the opening and the height of the opening, entering the smallest measurements in the actual gap. When the width consists of more than one panel, all entered width measurements should add up to the total measurement of the actual gap at its narrowest.

Product size

The selected product can be installed into the opening the total width L1 of which is 1000mm and the total length L2 2000mm.:


Product

Product code

Price

1

Bläk 783 Paris

Product code

783-61-00

Price

0.00 €

2

Bläk 731 Handle side panel
White painted/Transparent=488 x 2000

Product code

731 61 0000

Price

346.00 €

3

Bläk 732 Door
White painted/Transparent=485 x 2000

Product code

732 61 0000

Price

440.00 €

4

Bläk 704 Broad ceiling list
White painted/Transparent=10 x 1000

Product code

704 61 0000

Price

0.00 €

5

Maintenance manual Maintenance guide
/=

Product code

059 RL MMMM

Price

0.00 €

6

Grid placement

Product code

782 RL 0000

Price

0.00 €

7

Paris -frame

Product code

703 6L 0000

Price

126.00 €

8

Magnet locking

Product code

723 RL MMMM

Price

0.00 €

9

Grid placement

Product code

781 RL 0000

Price

0.00 €

10

Paris -frame

Product code

703 6L 0000

Price

126.00 €

11

BLÄK SERIES 01.08-30.11.2024 -20%

Product code

DISCOUNT

Price

-207.60 €

12

TOTAL

Product code

Price

830.40 €

The selected product can be installed into the opening the total width L1 of which is 1000mm and the total length L2 2000mm.:

EAN:
