Bläk 923 New York

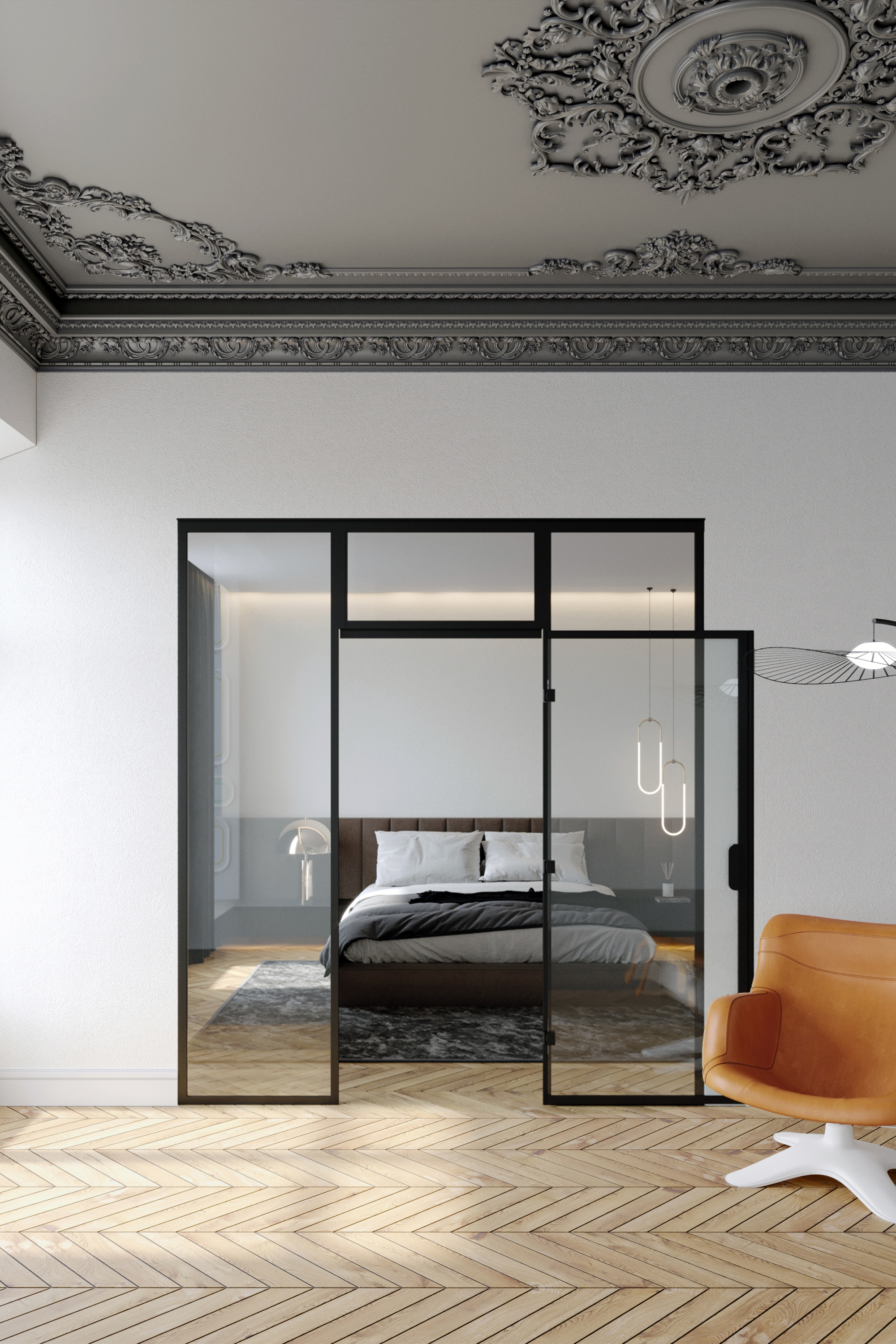

Glass wall with fixed panels on hinge and handle side and an upper window

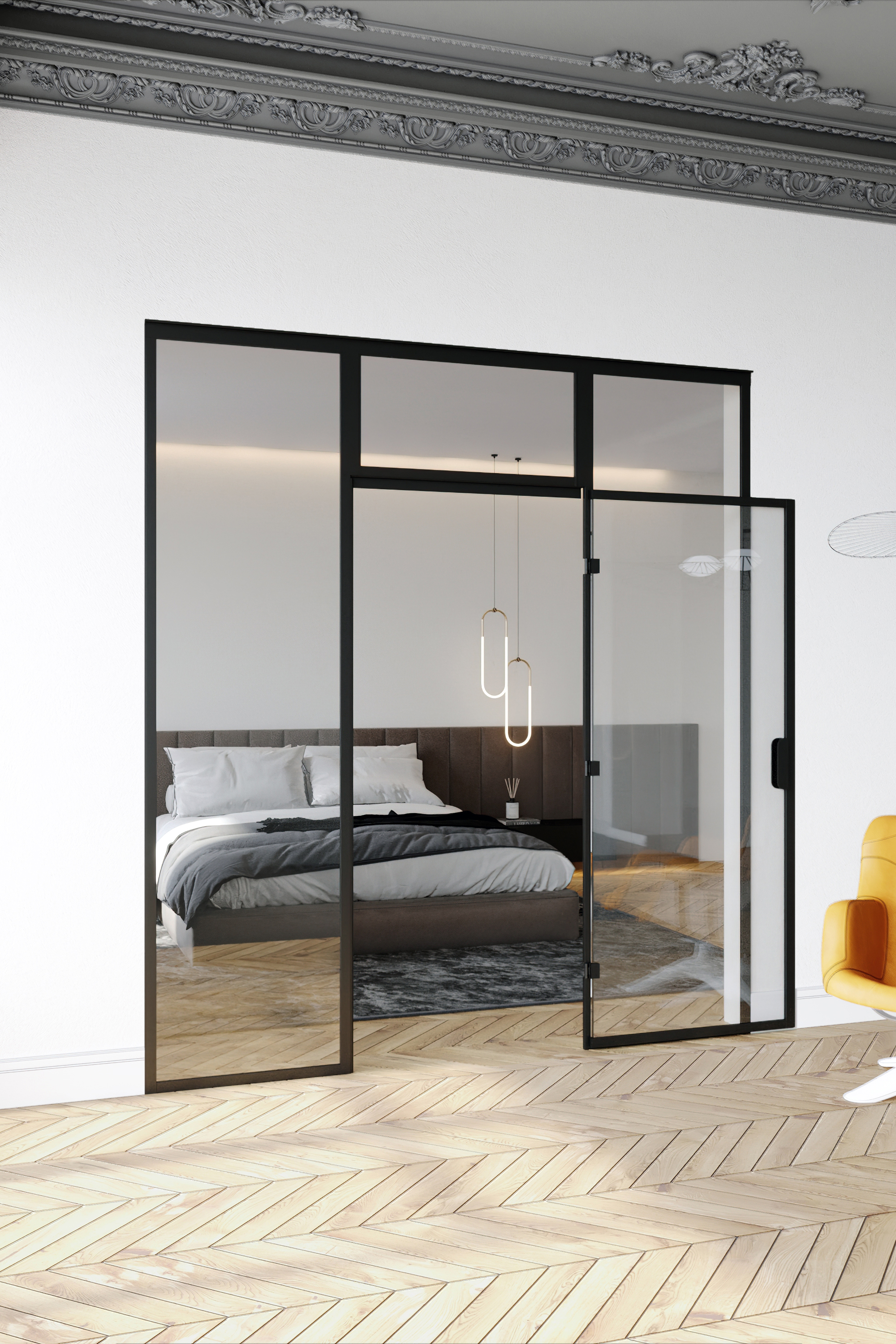

The glass wall configuration consists of an upper window and two fixed walls one of which has a hinged door. The door opens 180 degrees to the outside.

The fixed wall panels are mounted to the building wall on both sides of the enclosure using wall mounting profiles and floor fitting profiles. The door panel is attached to the fixed panel. The panels are secured with self-drilling screws. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.

Icon

21 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).

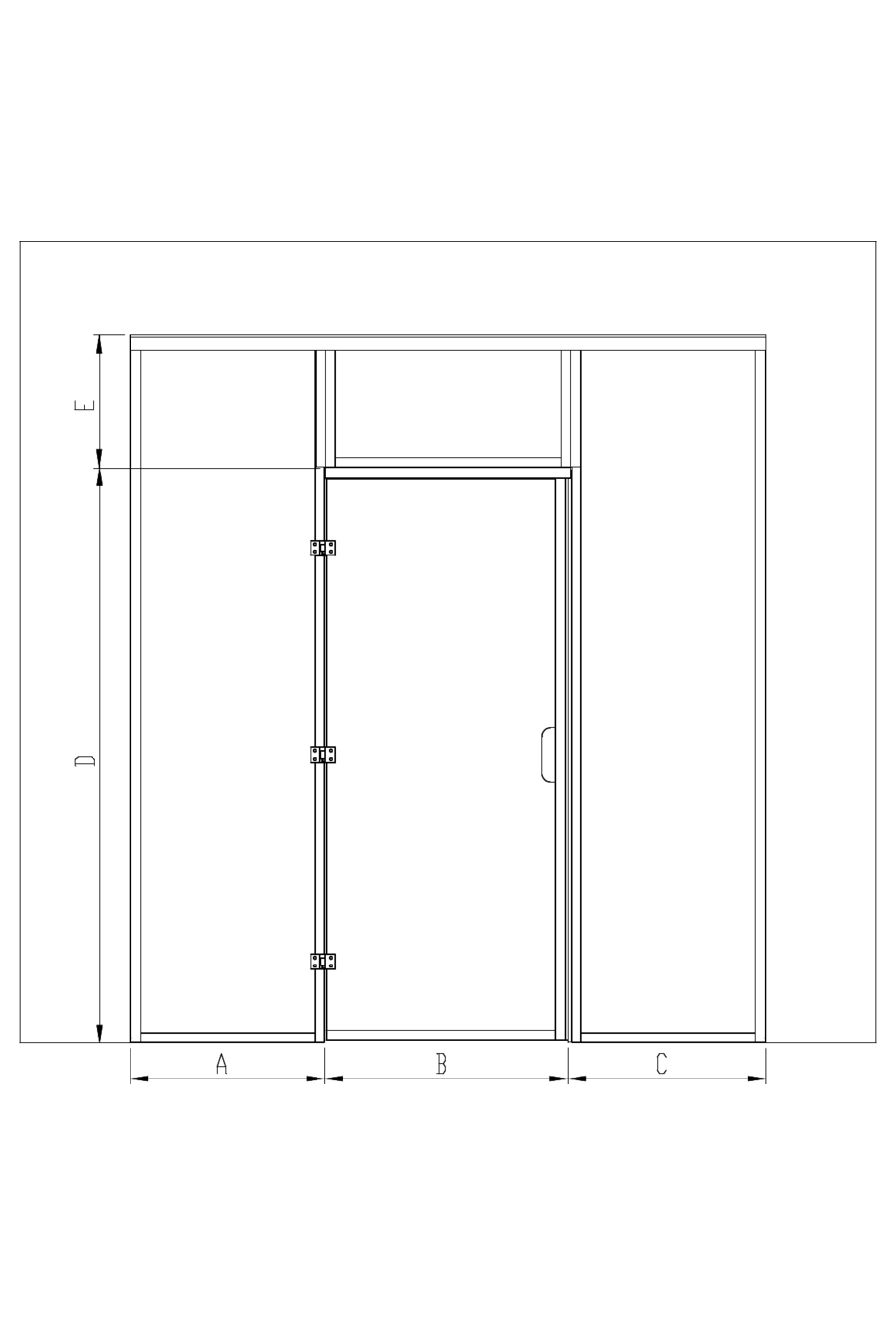

Glass wall is manufactured according to custom dimensions. The wall mounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is 15 mm smaller than indicated total door measure.

Product size

The selected product can be installed into the opening the total width of which is 1500mm and the total length 2400mm.:


Product

Product code

Price

1

Bläk 923 New York

Product code

923-61-0000

Price

0.00 €

2

Blak 736 Door
White painted/Transparent=512 x 2000

Product code

036 61 0000

Price

440.00 €

3

Blak 737 Hinge side panel
White painted/Transparent=500 x 2400

Product code

037 61 0000

Price

629.00 €

4

Blak 737 Handle side panel
White painted/Transparent=500 x 2400

Product code

U37 61 0000

Price

629.00 €

5

Bläk 735 Upper window
White painted/Transparent=503 x 400

Product code

U35 61 0000

Price

231.00 €

6

Bläk 710 Broad ceiling list
White painted/=10 x 1500

Product code

778 6L 0000

Price

0.00 €

7

TOTAL

Product code

Price

1929.00 €

The selected product can be installed into the opening the total width of which is 1500mm and the total length 2400mm.:

EAN: 6418379001407
