Bläk 925 Paris

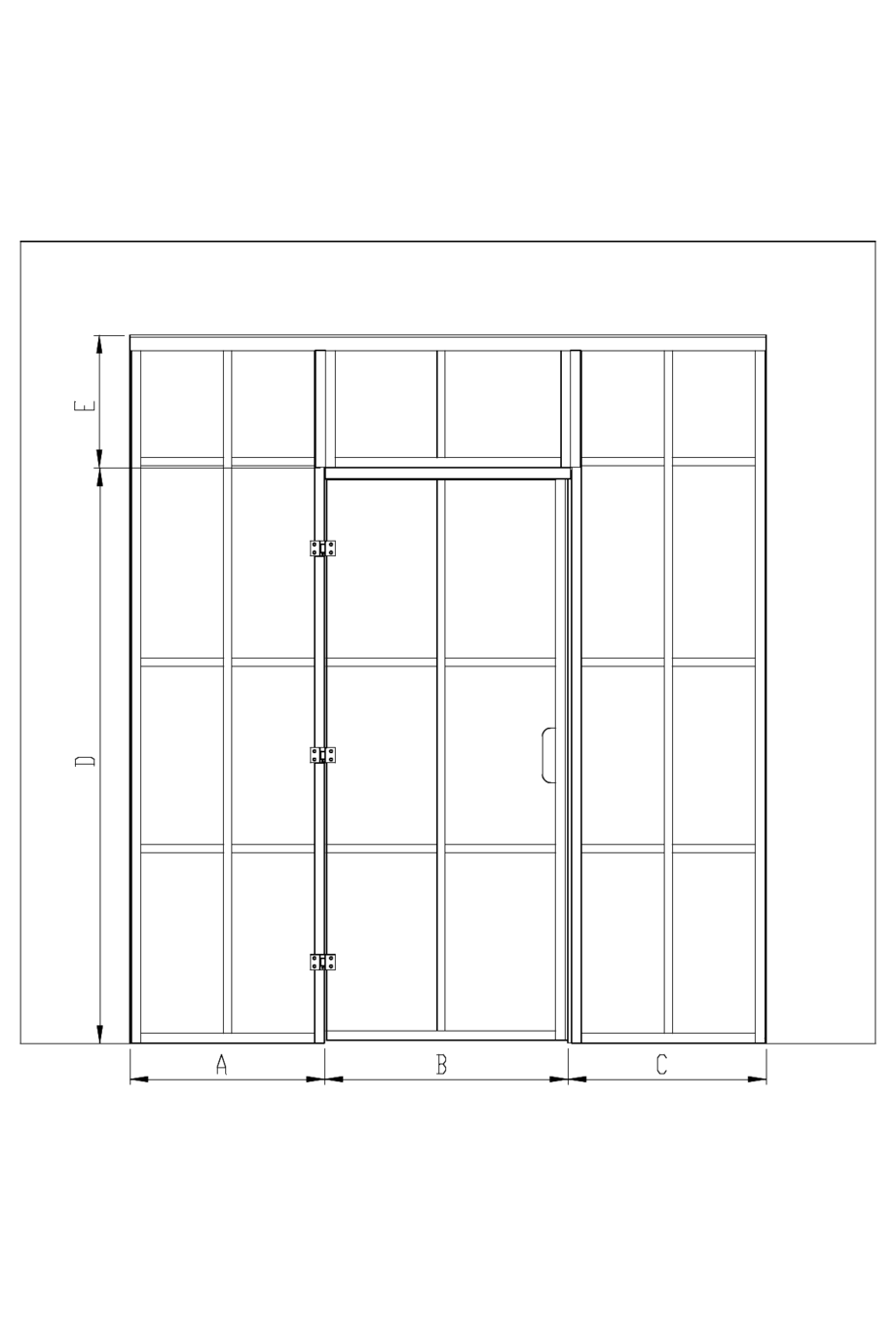

Glass wall with fixed panels on hinge and handle side and an upper window

The glass wall configuration consists of an upper window and two fixed walls one of which has a hinged door. The door opens 180 degrees to the outside.

The wall panels are mounted to the building wall on each side of the enclosure using wall mounting profiles and floor fitting profiles.The door panel is attached to the fixed panel.The panels and the upper window are secured with self-drilling screws.Magnet seals are installed on each of the doorway panels to keep the door tightly closed.

Icon

26 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).

Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening.Door opening is 93mm smaller than indicated total door measure.

Product size

The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2400mm.:


Product

Product code

Price

1

Bläk 925 Paris

Product code

925-61-0000

Price

0.00 €

2

Blak 736 Door
White painted/Transparent=512 x 2000

Product code

036 61 0000

Price

440.00 €

3

Blak 737 Hinge side panel
White painted/Transparent=500 x 2400

Product code

037 61 0000

Price

629.00 €

4

Blak 737 Handle side panel
White painted/Transparent=500 x 2400

Product code

U37 61 0000

Price

629.00 €

5

Bläk 735 Upper window
White painted/Transparent=503 x 400

Product code

U35 61 0000

Price

231.00 €

6

Paris -grid

Product code

703 6L 0000

Price

126.00 €

7

Paris -grid

Product code

703 6L 0000

Price

126.00 €

8

Paris -grid

Product code

703 6L 0000

Price

126.00 €

9

Paris -grid

Product code

703 6L 0000

Price

126.00 €

10

BLÄK SERIES 01.08-30.11.2024 -20%

Product code

DISCOUNT

Price

-486.60 €

11

TOTAL

Product code

Price

1946.40 €

The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2400mm.:

EAN: 6418379001445
