Bläk 997 Tokyo

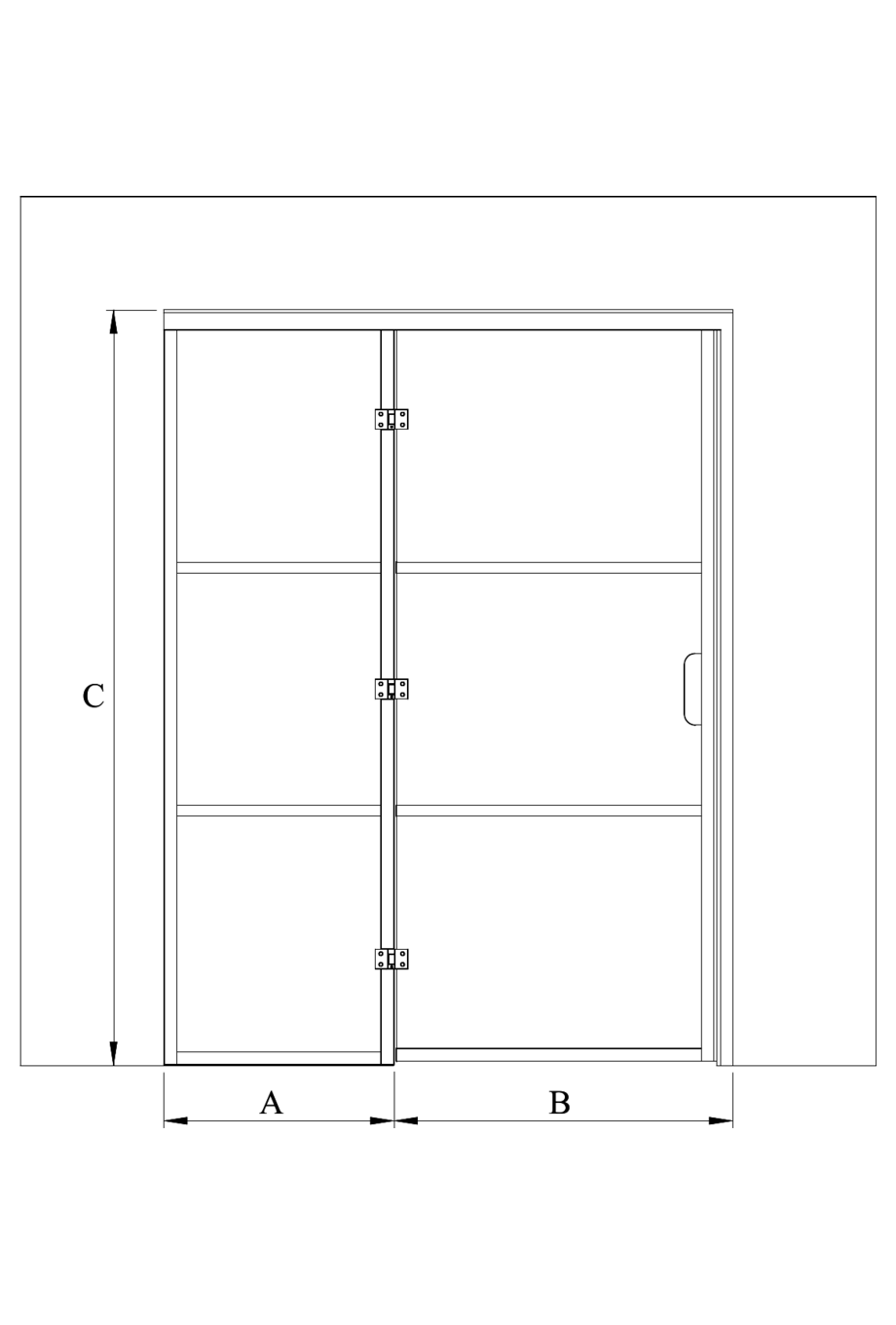

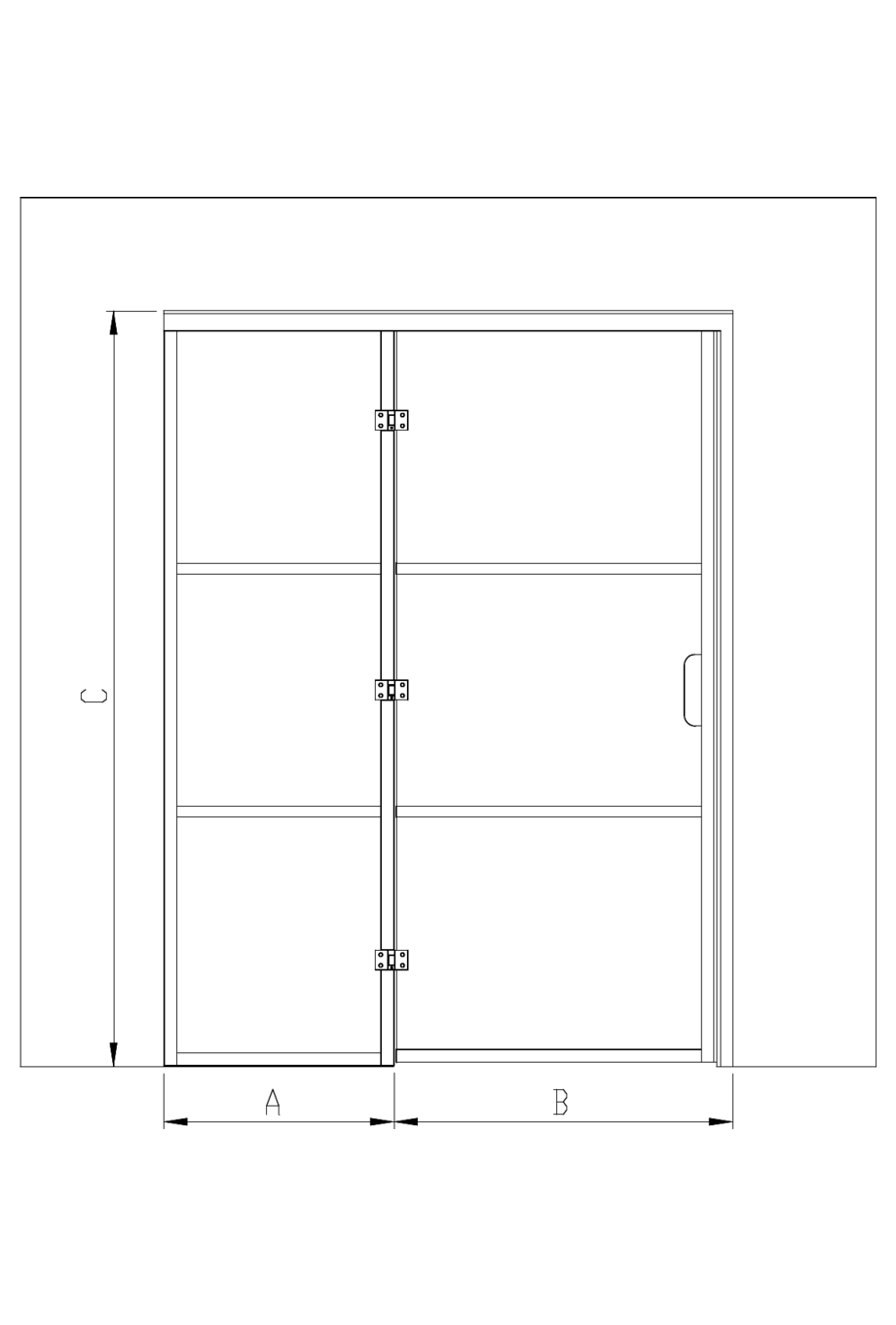

Glass wall with fixed panel on a hinge side

The glass wall configuration consists of a fixed panel with a hinged door.

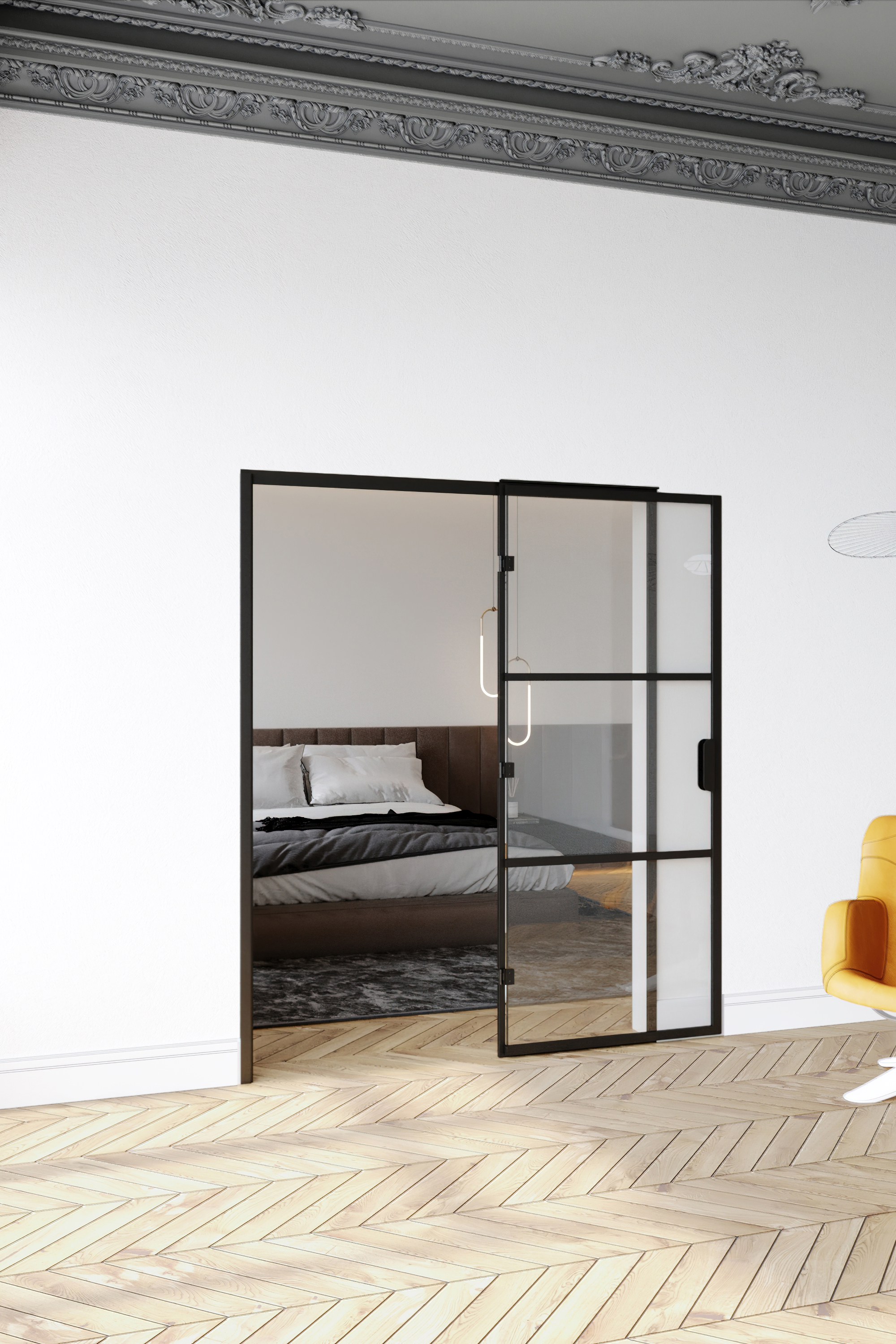

The door opens 180 degrees outside.

The fixed wall panel is attached to the building wall and floor the using wall mounting profile and floor fitting profile. The door panel is attached to the fixed panel. The panel are secured with self-drilling screws. Magnet seals are installed on both the door panel and the wall profile to keep door tightly closed.

Icon

26 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).

Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 22mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is 46 mm smaller than indicated total door measure.

Product size

The selected product can be installed into the opening the total width of which is 1000mm and the total length 2000mm.:


Product

Product code

Price

1

Bläk 997 Tokyo

Product code

997-61-00

Price

0.00 €

2

Bläk 734 Hingeside panel
White painted/Transparent=502 x 2000

Product code

U34 61 0000

Price

330.00 €

3

Bläk 734 Door
White painted/Transparent=482 x 1986

Product code

U34 61 1000

Price

420.00 €

4

Blak full Blak full edge profile, middle part
White painted/=668

Product code

03A 6L 0000

Price

0.00 €

5

Tokyo -frame

Product code

708 RL 0000

Price

100.00 €

6

Tokyo -frame

Product code

708 RL 0000

Price

100.00 €

7

TOTAL

Product code

Price

950.00 €

The selected product can be installed into the opening the total width of which is 1000mm and the total length 2000mm.:

EAN:
