Bläk 77A New York

Interior Window

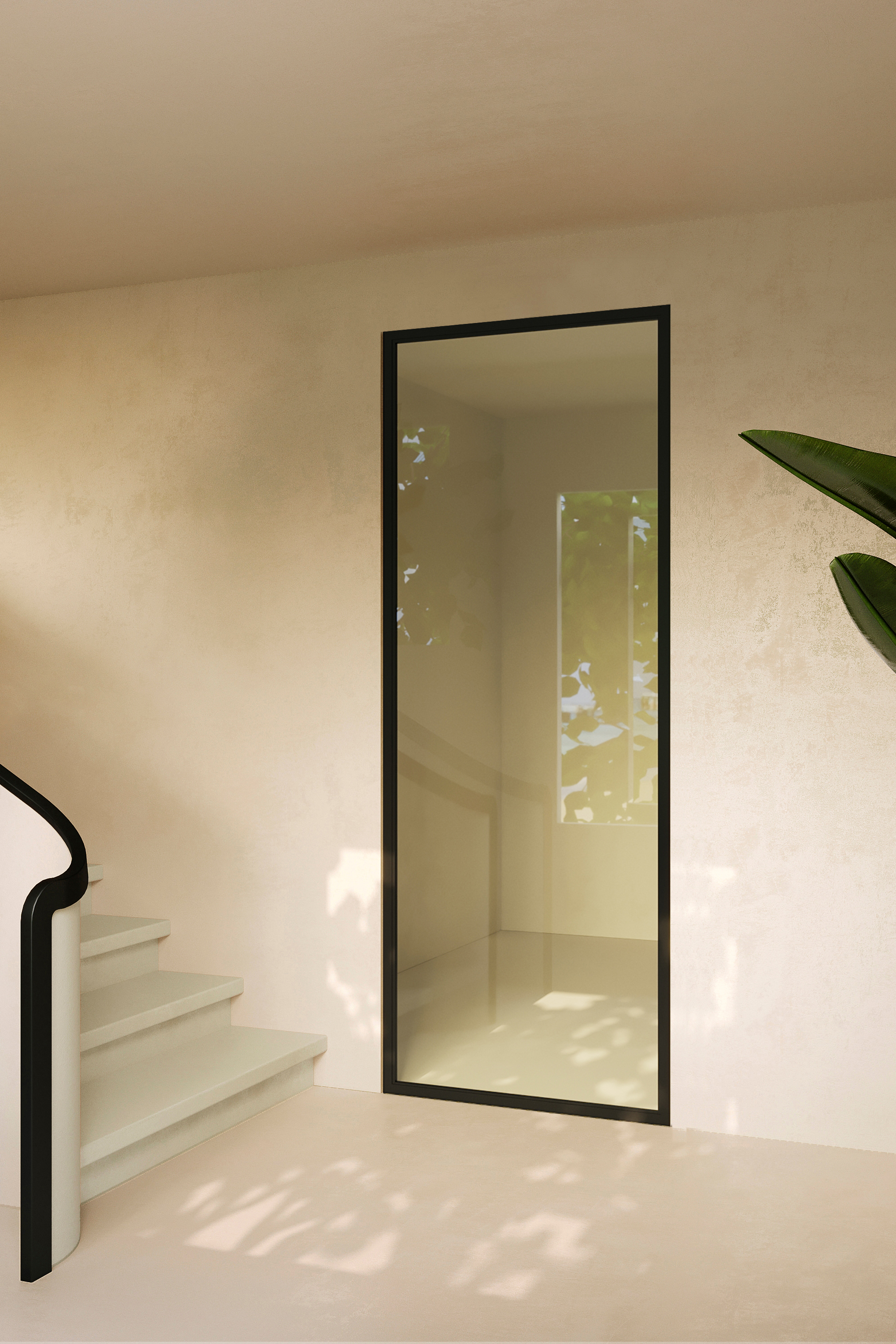

Interior window made of glass that is fitted into an opening.

The product is mounted with L-profiles on four sides. The L-profiles are screwed to the walls and the ceiling on 3 sides, the fourth profile is glued to the floor. The panel is then fixed to the profiles with self drilling screws. Lastly the installation is finished by gluing flat profiles on the other side, to cover small gaps from tuning during the installation. Please note, that the profiles will need to be cut to correct length on site.

Icon

26 Working days

Icon

20 year warranty

The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). Transparent, super bright, grey and brown are smooth surfaced and transparent panels. Reeded and satin panels are not fully transparent, details cannot be made out through the panel. The reeded glass is smooth on one side and textured on the other. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

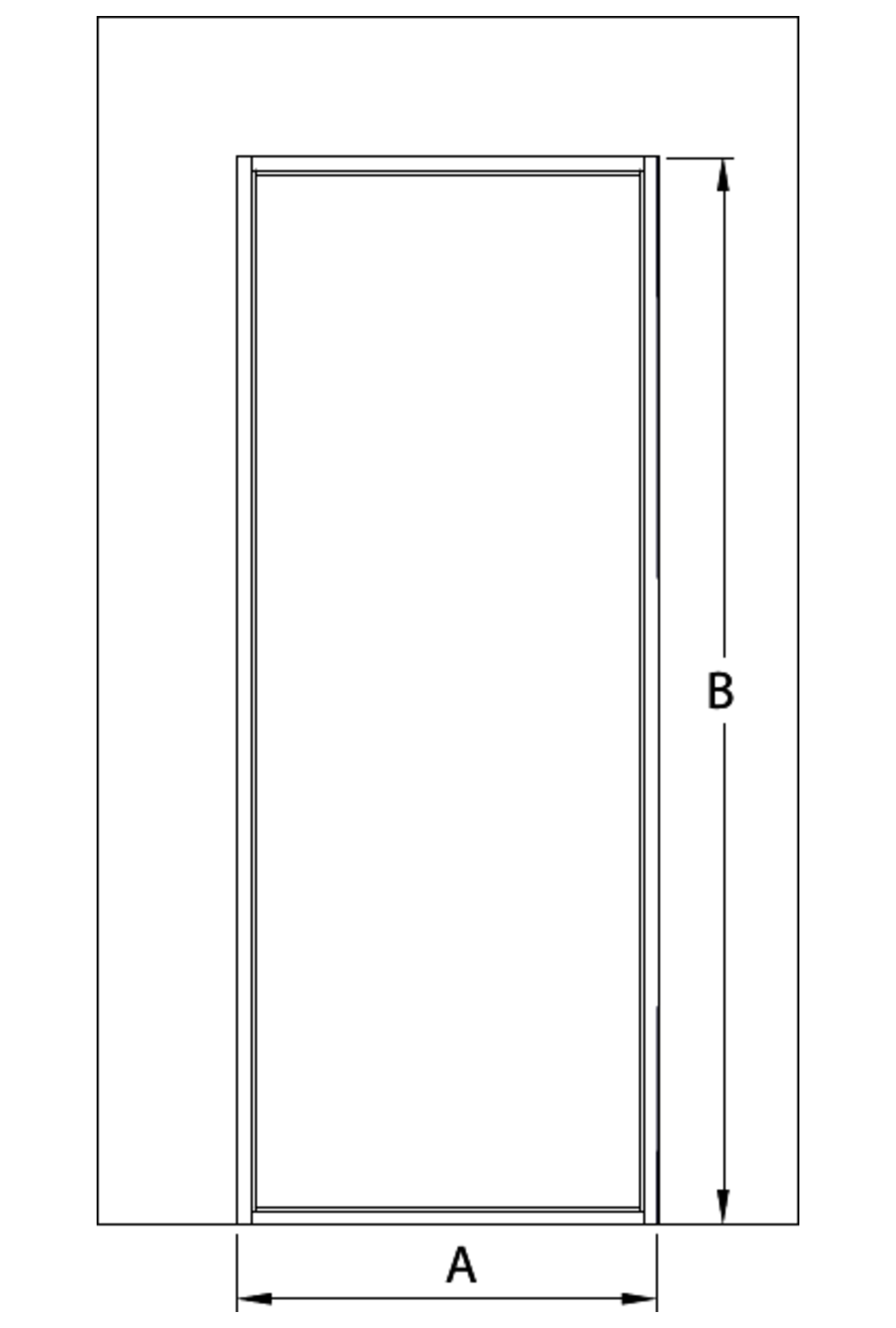

The product is always manufactured according to given measurements. When selecting the size it should be done with actual opening sizes. A=total width of opening, B=total height of opening.

Product size

.:


Product

Product code

Price

1

Bläk 77A New York

Product code

77A-61-0

Price

0.00 €

2

Bläk 77A Fixed wall
White painted/Transparent=500 x 2000

Product code

77A 61 0000

Price

378.00 €

3

Maintenance manual Maintenance guide
/=

Product code

059 RL MMMM

Price

0.00 €

4

BLÄK SERIES 01.08-30.11.2024 -20%

Product code

DISCOUNT

Price

-75.60 €

5

TOTAL

Product code

Price

302.40 €

.:

EAN: 6418379013707
