Infinia 256 (212x213)

Shower enclosure with a hinged door and a folding door

Shower enclosure consists of a hinged door and a folding door. Product is well-suited for a shower corner where doors may not have the space to properly open outward on both sides. The folding door does not require space from outside the shower area; instead, the door folds into the shower area with the door panel folding into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the walls of the building.

Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.

Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels Chinchilla and satin panel are not fully transparent, details cannot be made out through the panel. Chinchilla is textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mounted profiles have an adjustment tolerance 15mm. The adjustment tolerance may be used for levelling the tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

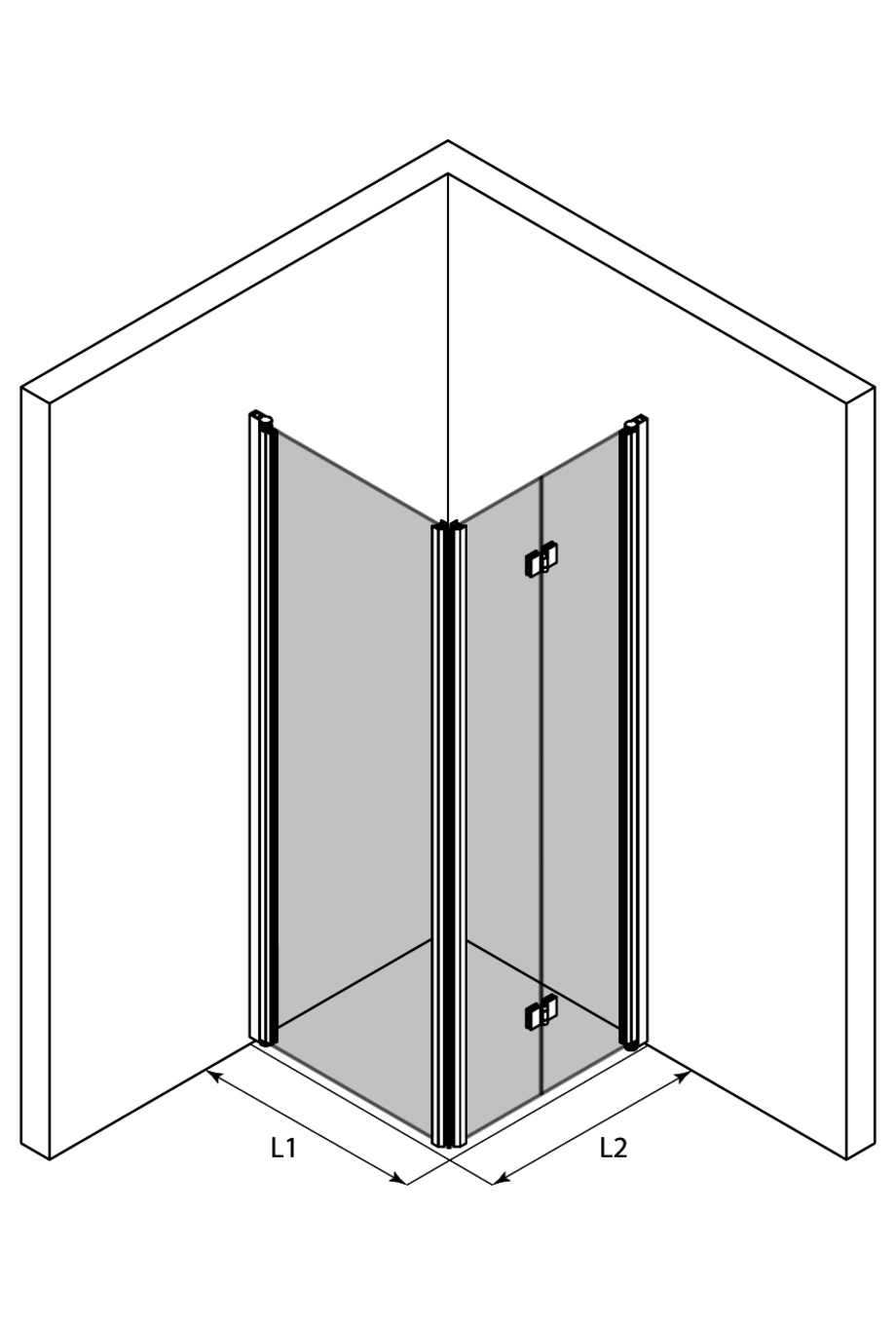

Product size

Shower enclosure hinged door (L1)

X

Shower enclosure folding door (L2)

X

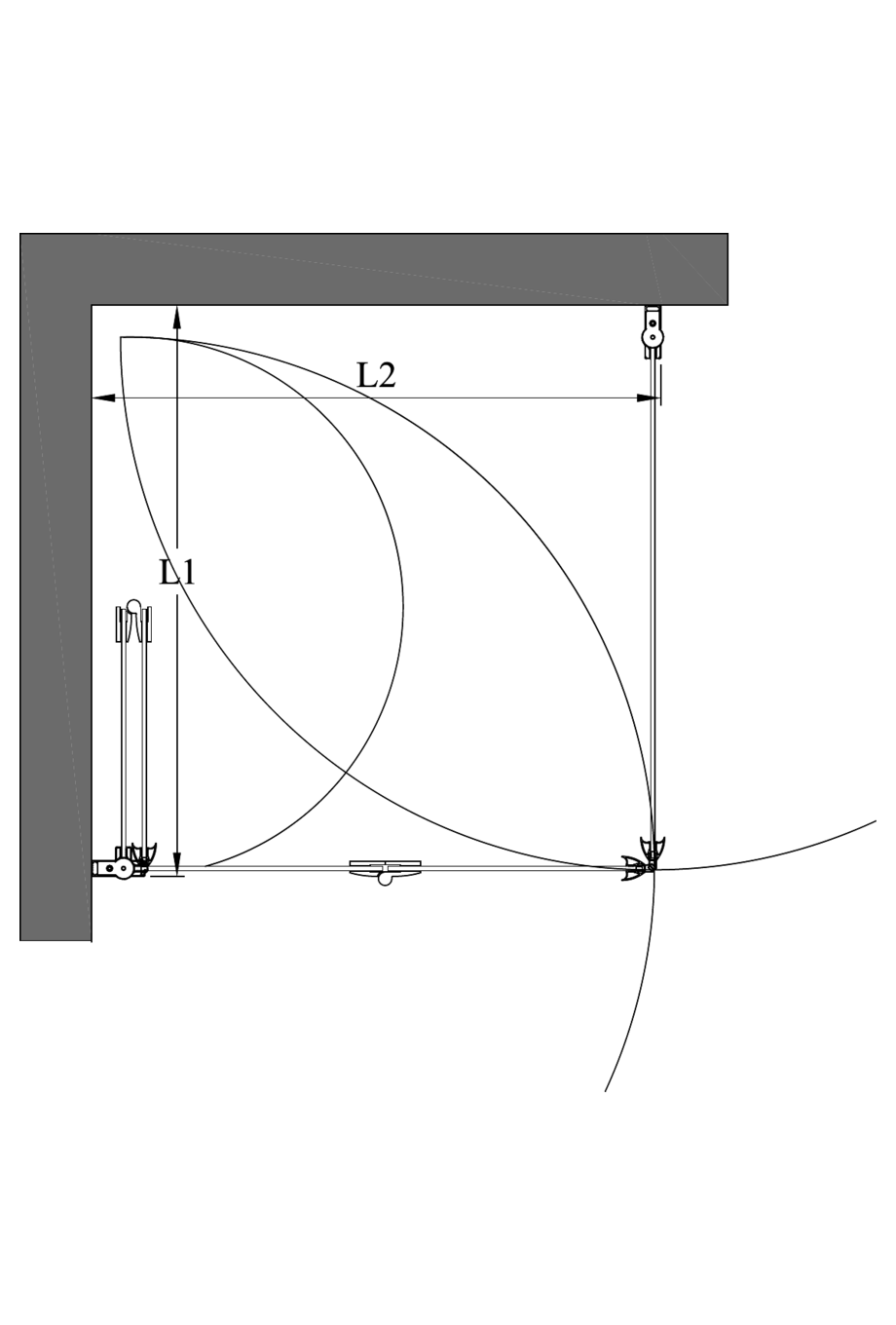

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 300mm - 315mm
- Side L2 : 598mm - 613mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Product

Product code

Price

1

Infinia 256 (212x213)

Product code

256-61-21

Price

0.00 €

2

Infinia 212 Shower enclosure hinged door
White painted/Transparent/L1=300 x 1900

Product code

212 61 0027

Price

300.00 €

3

Infinia 213 Shower enclosure folding door
White painted/Transparent/L2=598 x 1900

Product code

213 61 0056

Price

470.00 €

4

Magnet handle

Product code

913 6L 0002

Price

40.00 €

5

Magnet handle

Product code

913 6L 1001

Price

40.00 €

6

TOTAL

Product code

Price

850.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 300mm - 315mm
- Side L2 : 598mm - 613mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
