Classic 155 (122x122)

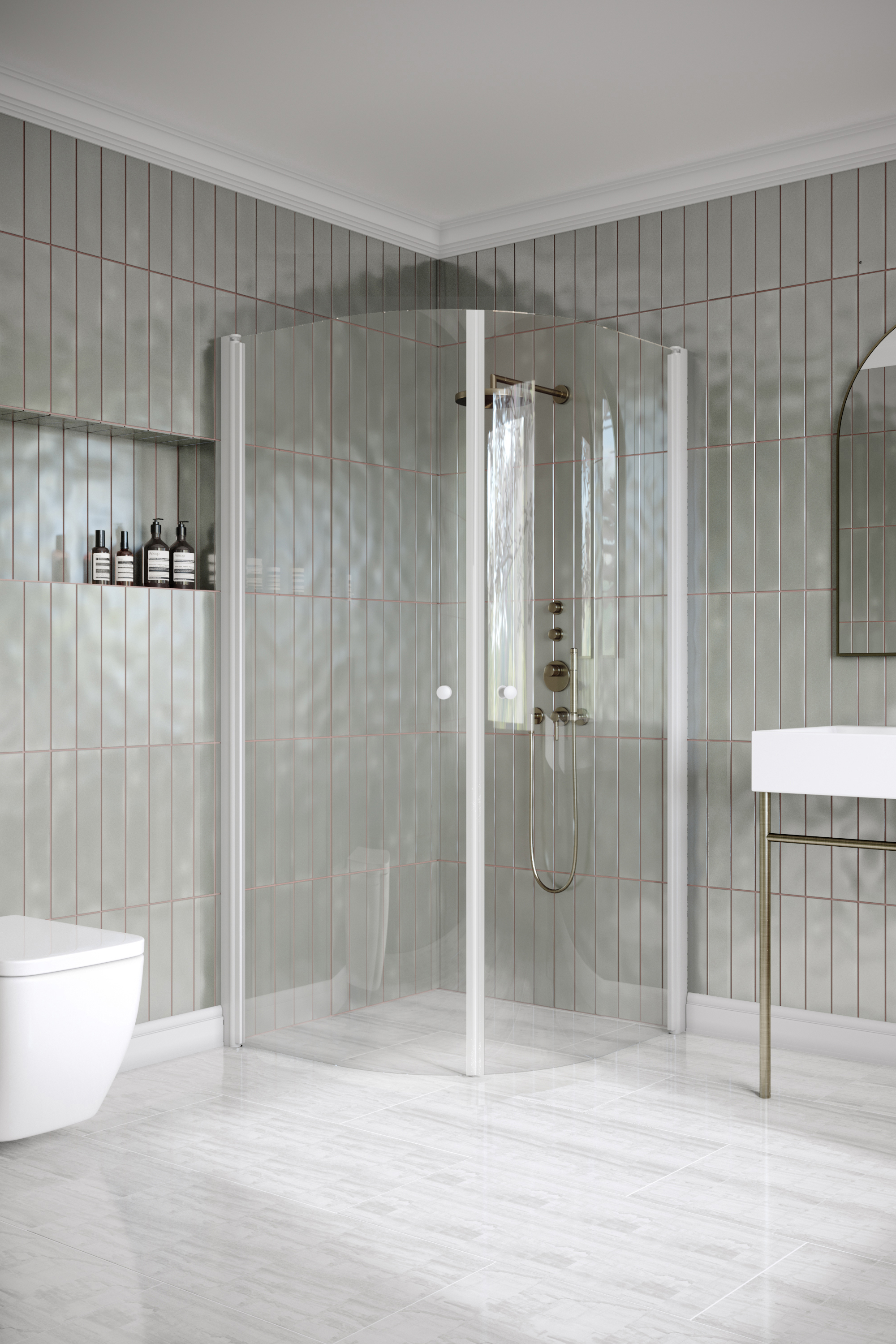

Curved shower enclosure with hinged doors

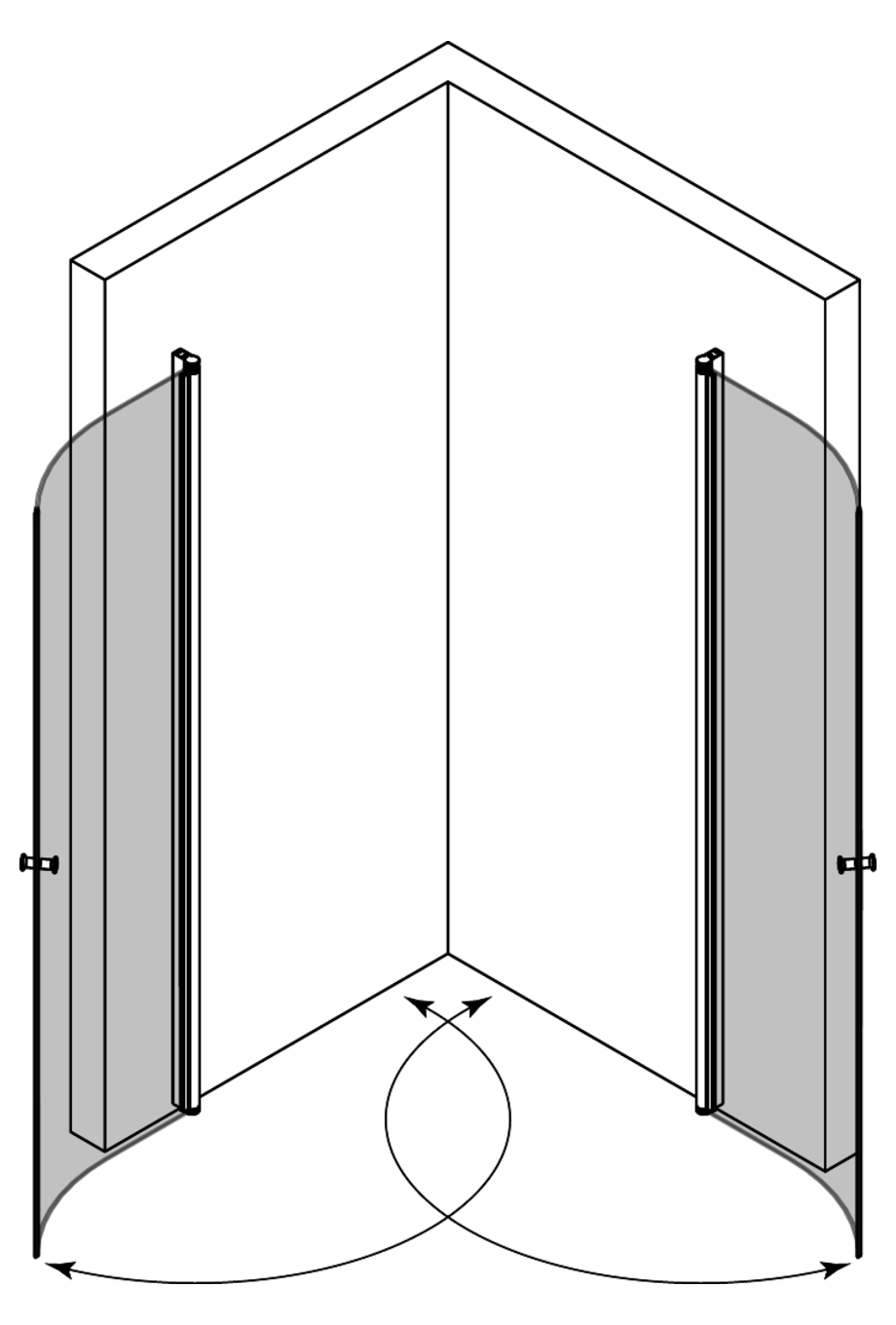

Shower enclosure consists of two hinged doors. The product is well-suited for for a shower corner where there is space for opening the door either to the inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the direction walls. Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. A pair of magnet handles keeps the doors tightly closed during showering.

Doors are attached to the building walls by means of wall mounted profiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel.Installation guide

Icon

19 Working days

Icon

5 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The grey coating is manufactured with profiles that are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings and grey profiles have chrome plated fittings.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and smoke are smooth surfaced and transparent panels

The size of the shower enclosure is selected from the standard dimensions. The wall mountedprofiles have adjustment range of 15mm. The adjustment range can be used for levelling any tilt of the building s walls or for extension of the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved for example for the inlet of the surface water pipes.

Product size

Shower enclosure hinged door (L1)

X

Shower enclosure hinged door (L2)

X

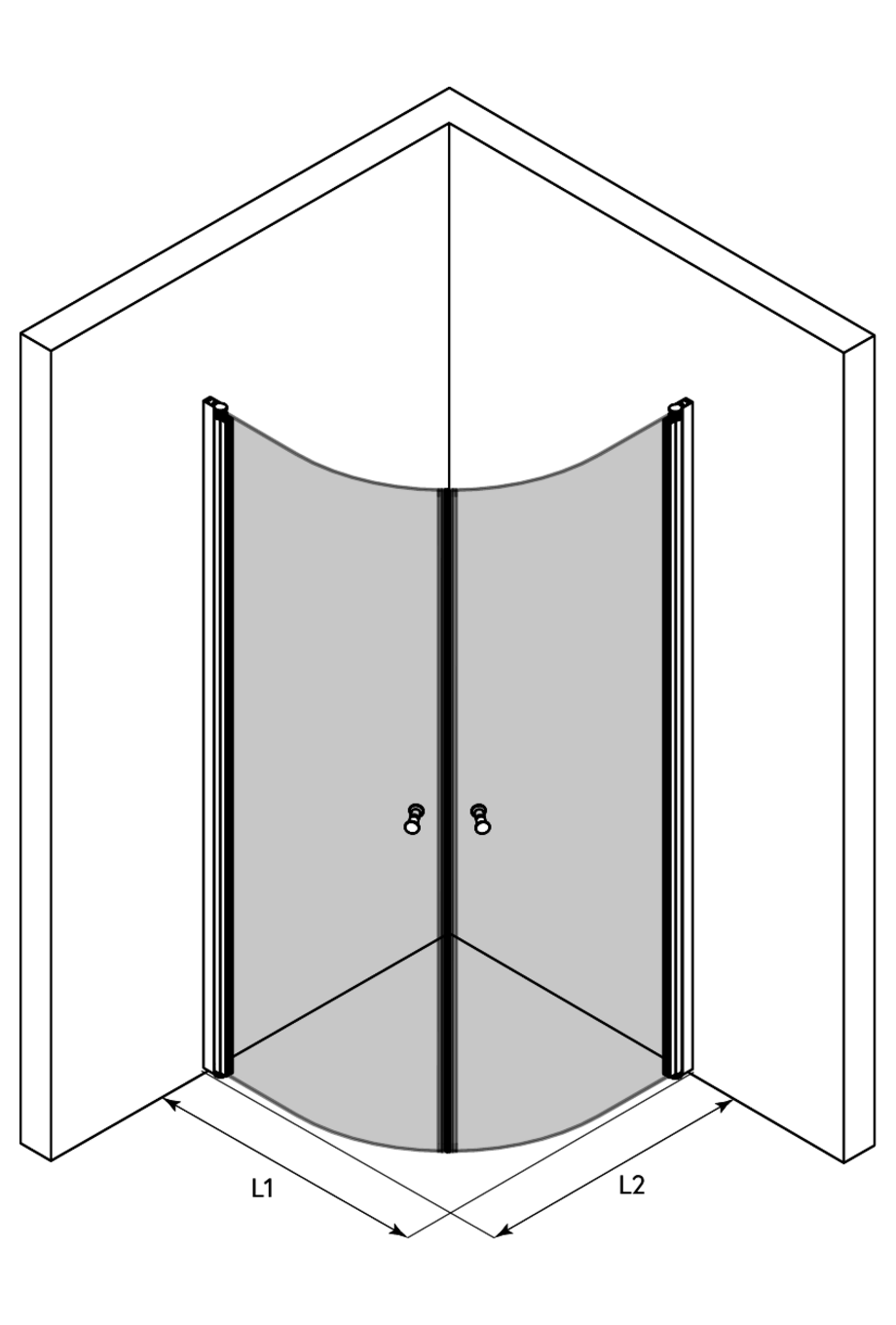

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 800mm - 815mm
- Side L2 : 800mm - 815mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site.

The product is equipped with a round knob handle manufactured from brass. The handle color matches the chosen profile color, for both grey and bright profiled products the handle is chromed.

Product

Product code

Price

1

Classic 155 (122x122)

Product code

155-61-33

Price

0.00 €

2

Classic 122 Shower enclosure hinged door
White painted/Transparent/L1=800 x 1900

Product code

122 61 0065

Price

260.00 €

3

Classic 122 Shower enclosure hinged door
White painted/Transparent/L2=800 x 1900

Product code

122 61 0065

Price

260.00 €

4

Magnet seal pair

Product code

L10 6L 0003

Price

20.00 €

5

TOTAL

Product code

Price

540.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 800mm - 815mm
- Side L2 : 800mm - 815mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
