Bläk 802 Shanghai

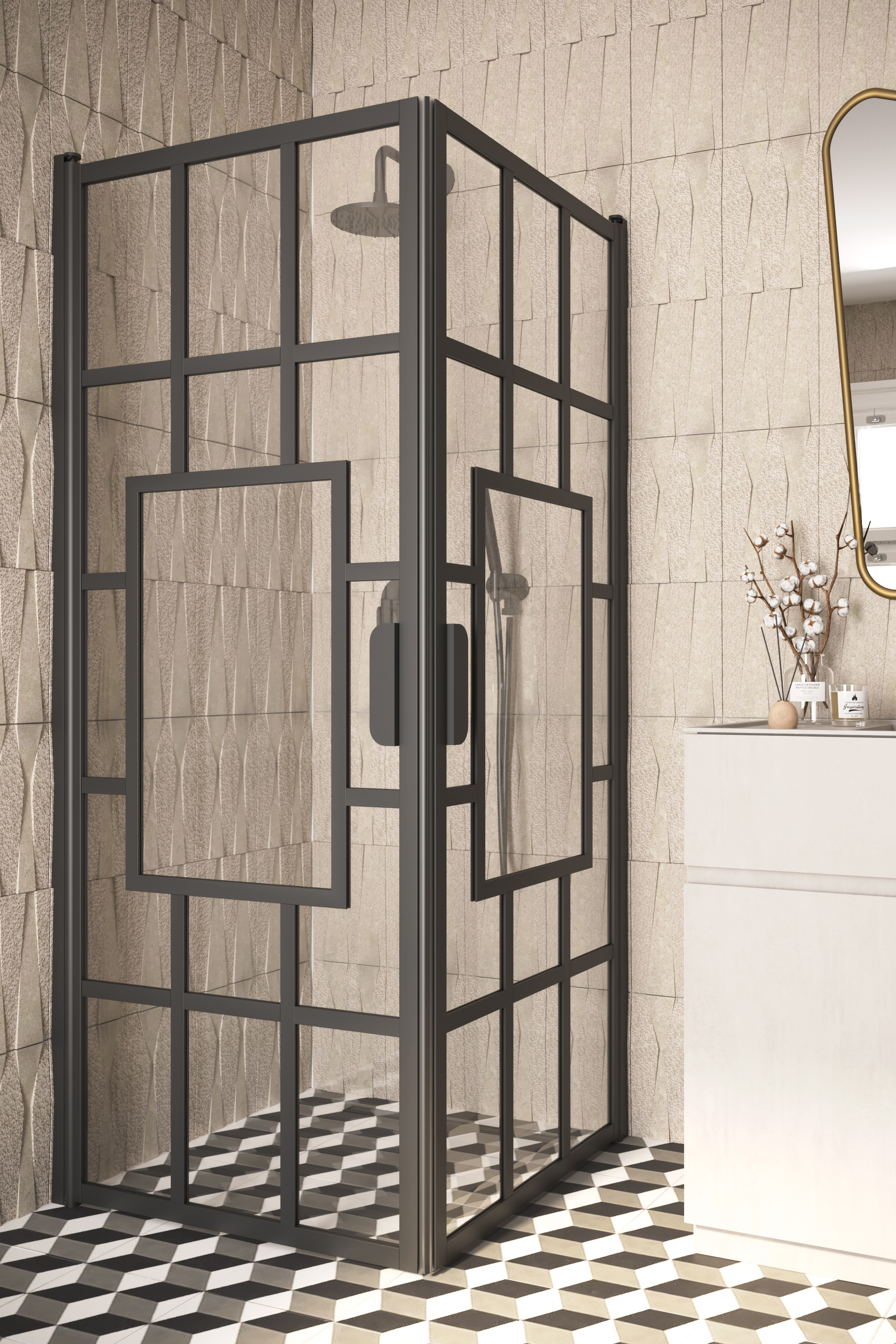

Shower enclosure with hinged doors

Shower enclosure consists of two hinged doors. The product is well-suited for a shower corner where there is space for opening the door either inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the wall of the building.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.

Doors are attached to the building walls by means of wallmounting profiles. A floor seal, which limits the flow of water can be installed along the bottom edge of the door panel. Installation guide

Icon

19 Working days

Icon

20 year warranty

The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of painted brass alloy.

The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mounted profiles have an adjustment tolerance 15mm. The adjustment tolerance may be used for levelling the tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Shower enclosure hinged door (L1)

X

Shower enclosure hinged door (L2)

X

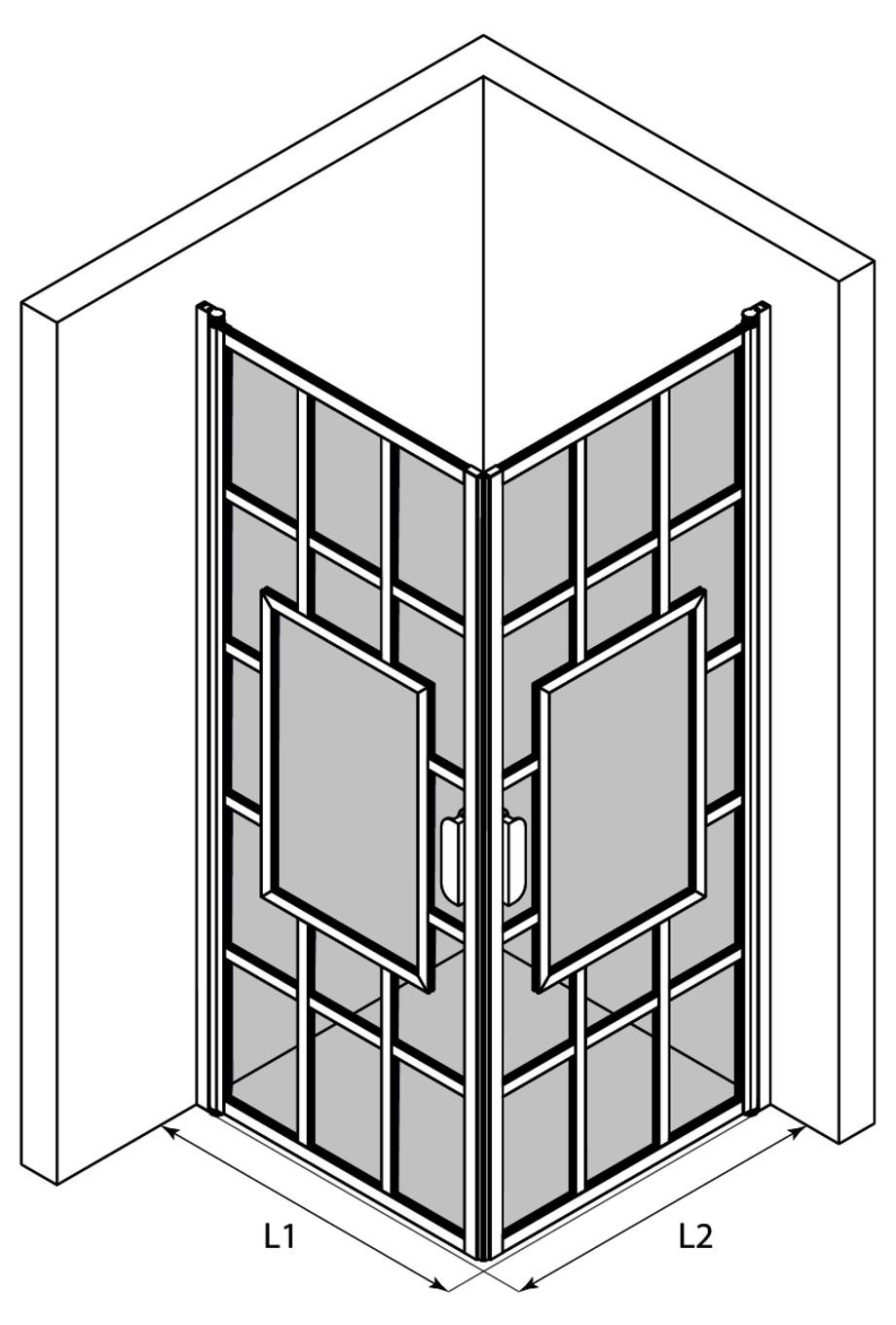

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 417mm - 432mm
- Side L2 : 417mm - 417mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Product

Product code

Price

1

Bläk 802 Shanghai

Product code

802-61-11

Price

0.00 €

2

Bläk 712 Shower enclosure hinged door
White painted/Transparent/L1=417 x 1950

Product code

712 61 0039

Price

390.00 €

3

Bläk 712 Shower enclosure hinged door
White painted/Transparent/L2=417 x 1950

Product code

712 61 0039

Price

390.00 €

4

Shanghai - grid

Product code

741 6L 0001

Price

700.00 €

5

Magnet seal

Product code

705 RL 0001

Price

40.00 €

6

Shanghai - grid

Product code

741 6L 0001

Price

700.00 €

7

TOTAL

Product code

Price

2220.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 417mm - 432mm
- Side L2 : 417mm - 417mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN:
