Bläk 89L Tokyo

Shower enclosure with a hinged and a folding door with fixed parts

The shower enclosure consists of two fixed walls, into one of which a hinged folding door and to the other a hinged door have been installed. The product is well-suited for a shower corner on one side of which fixtures are on the outside of the shower and on the other side on the inside portion of the shower and where the doors may not necessarily have enough space to properly open to both sides. Folding door does not require space for opening from outside of the shower area, but instead folds into the small space inside the shower area in the direction of the building wall. The fixed wall to which the folding door is hinged can be dimensioned according to the fixture (e.g. the mixer) inside the shower area so that the door does not hit the fixtures when being folded. Correspondingly, the fixed wall to which the hinged door has been hinged can be dimensioned according to the fixtures outside of the shower area such so that when opened, the door does not hit the fixture. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use the doors can be positioned parallel to the building walls.

Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. positions. In addition, the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other into the interior portion of the shower area. A pair of magnet handles keeps the doors tightly closed during showering.

The fixed panels are mounted to the building wall using wall mounting profiles on each side of the enclosure space. The door panels are attached to the wall fixed panels from both sides. The support bar is set up from the top edge of the fixed panel and screwed into the building wall. Bottom seals can be attached to the panels and a step profile can be installed under the door panels to improve water retention. Magnet seals are installed on each of the doorway panels to keep door tightly closed.

Icon

19 Working days

Icon

20 year warranty

The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. The fittings used in the product, are made of black/white painted brass alloy.

The product is manufactured with a 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the production with Cranith calcification prevention coating which helps keeping the glass clean. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower corner can be selected from the standard sizes or it can be manufactured based on special dimensions. The wall mountedprofiles have an adjustment tolerance 7mm. The adjustment tolerance may be used for levelling the tilt of the building s walls or for extending the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes. The fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product size

Shower enclosure fixed screen (A)

X

Shower screen hinged part (B)

X

Shower enclosure fixed screen (C)

X

Shower enclosure folding door (D)

X

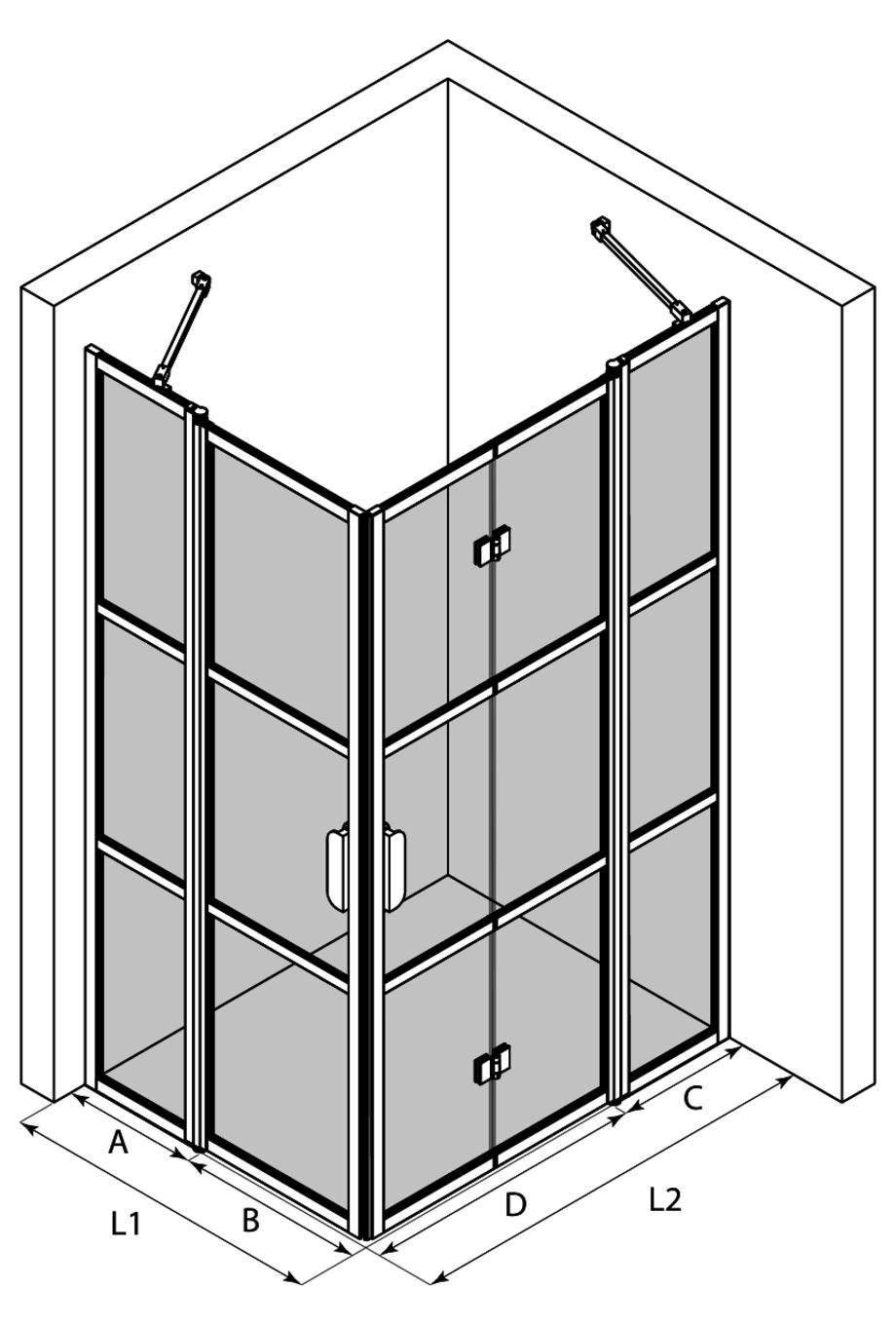

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 617mm - 624mm
- Side L2 : 902mm - 909mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a shower door threshold under the door. The door threshold is cut into a suitable length on the side and glued to the floor. The height of a shaped threshold is 10mm and its width is 16mm.Fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Product

Product code

Price

1

Bläk 89L Tokyo

Product code

89L-61-1111

Price

0.00 €

2

Bläk 714 Shower enclosure fixed screen
White painted/Transparent/A=260 x 1950

Product code

714 61 0026

Price

295.00 €

3

Blak 714 Shower screen hinged part
White painted/Transparent/B=357 x 1950

Product code

714 61 1033

Price

295.00 €

4

Bläk 714 Shower enclosure fixed screen
White painted/Transparent/C=260 x 1950

Product code

714 61 0026

Price

295.00 €

5

Blak 715 Shower enclosure folding door
White painted/Transparent/D=642 x 1950

Product code

715 61 0062

Price

395.00 €

6

Grid placement

Product code

780 RL 0001

Price

0.00 €

7

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

8

Magnet seal pair

Product code

705 RL 0001

Price

40.00 €

9

Grid placement

Product code

780 RL 0001

Price

0.00 €

10

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

11

Grid placement

Product code

780 RL 0001

Price

0.00 €

12

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

13

Grid placement

Product code

780 RL 0001

Price

0.00 €

14

Tokyo -frame

Product code

708 RL 0001

Price

100.00 €

15

TOTAL

Product code

Price

1720.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 617mm - 624mm
- Side L2 : 902mm - 909mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN: 6418379001162
