Forma 386

Forma corner curved double door

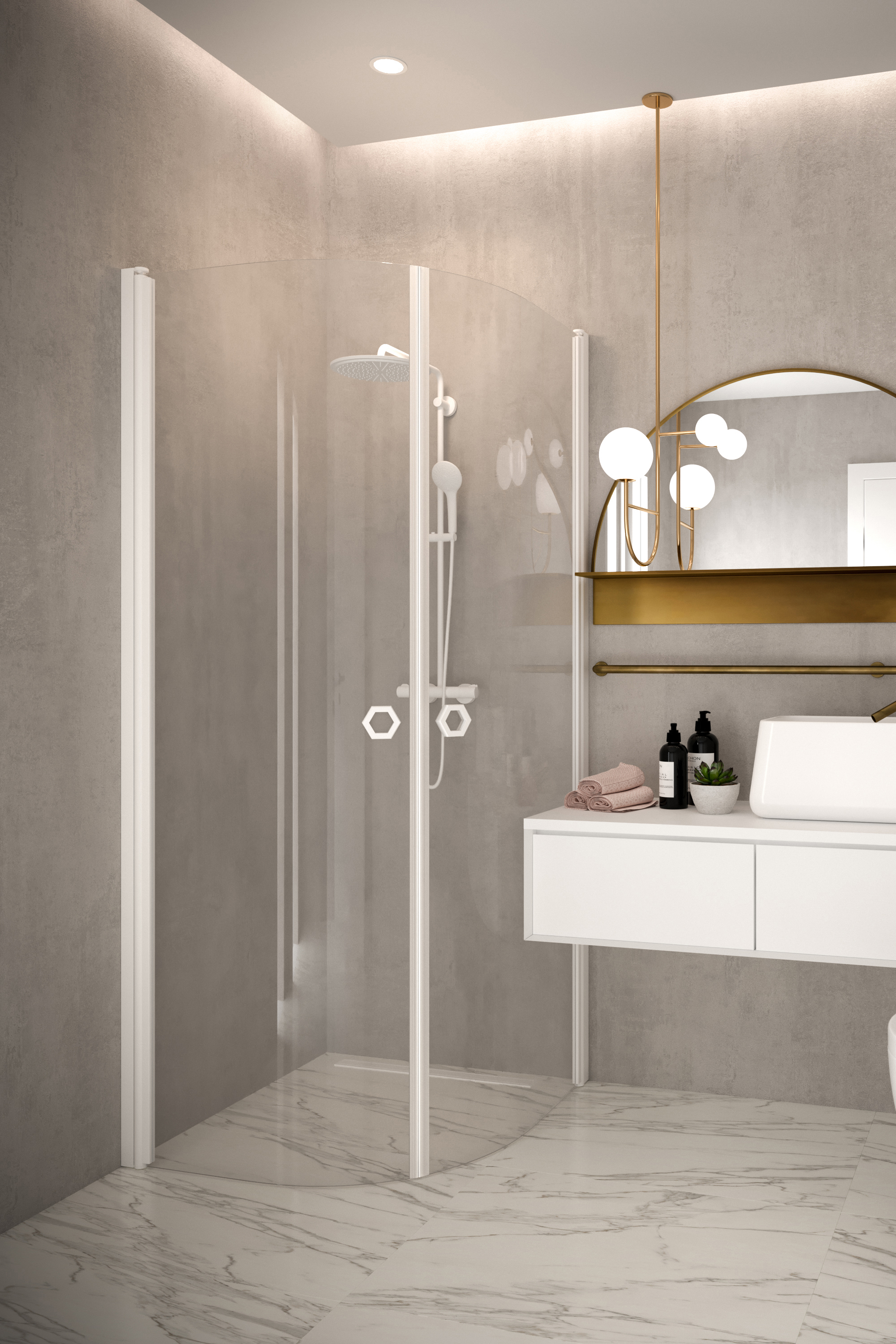

Shower enclosure consists of two hinged curved doors. The product is well-suited for for a shower corner where there is space for opening the door either to the inside or outside of the shower area. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned in the against the walls. Doors rotate 90 degrees in both directions and are equipped with adjustable centrings. The function of the centring is to return the door to the open and closed positions. A pair of magnet seals keeps the doors tightly closed during showering.

Doors are attached to the building walls by means of wall mountedprofiles. A floor seal , which limits the flow of water can be installed along the bottom edge of the door panel.

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey is an anodized coating. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are according to the profile colours and made from brass alloy.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear glasses are smooth surfaced and transparent panels.

The size of the shower enclosure is selected from the standard dimensions. The wall mountedprofiles have adjustment range of 15mm. The adjustment range can be used for levelling any tilt of the building s walls or for extension of the widths of the sides of the shower enclosure in relation to the provided standard dimensions. The widths of one or both sides can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved for example for the inlet of the surface water pipes.

Product size

Door (A)

X

Door (B)

X

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 700mm - 715mm
- Side L2 : 700mm - 715mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:


The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a shower door threshold under the door. The door threshold is cut into a suitable length on the side and glued to the floor. The height of a shaped threshold is 10mm and its width is 16mm.Fixed panel is mounted with tuning leg by default which is suitable for tilted floors in the case of even floor the floor mounted option can be selected.

Please select handle model:

Product

Product code

Price

1

Forma 386

Product code

386-61-11

Price

0.00 €

2

Forma curved Door
White painted/Transparent/A=700 x 2025

Product code

306 61 0056

Price

690.00 €

3

Forma curved Door
White painted/Transparent/B=700 x 2025

Product code

306 61 0056

Price

690.00 €

4

Magnet seal pair

Product code

F06 6L 0001

Price

20.00 €

5

Hexagonal handle chrome

Product code

F01 RL MMMM

Price

60.00 €

6

Hexagonal handle chrome

Product code

F01 RL MMMM

Price

60.00 €

7

Forma campaign 15.1.-14.4.2024 -20%

Product code

DISCOUNT

Price

-304.00 €

8

TOTAL

Product code

Price

1216.00 €

Taking into account the adjustment ranges, the installation dimensions of the selected combination are:
- Side L1 : 700mm - 715mm
- Side L2 : 700mm - 715mm
Installation dimensions mean the location of the outermost side of the wall mountedprofile on the building wall measured from the corner of the shower area. The width of the side of the wall mountedprofile placed against the building wall is 22mm. The dimensions may deviate from the declared values if the adjustment range must be used to level the tilt of the walls. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:

EAN:
