Infinia 232

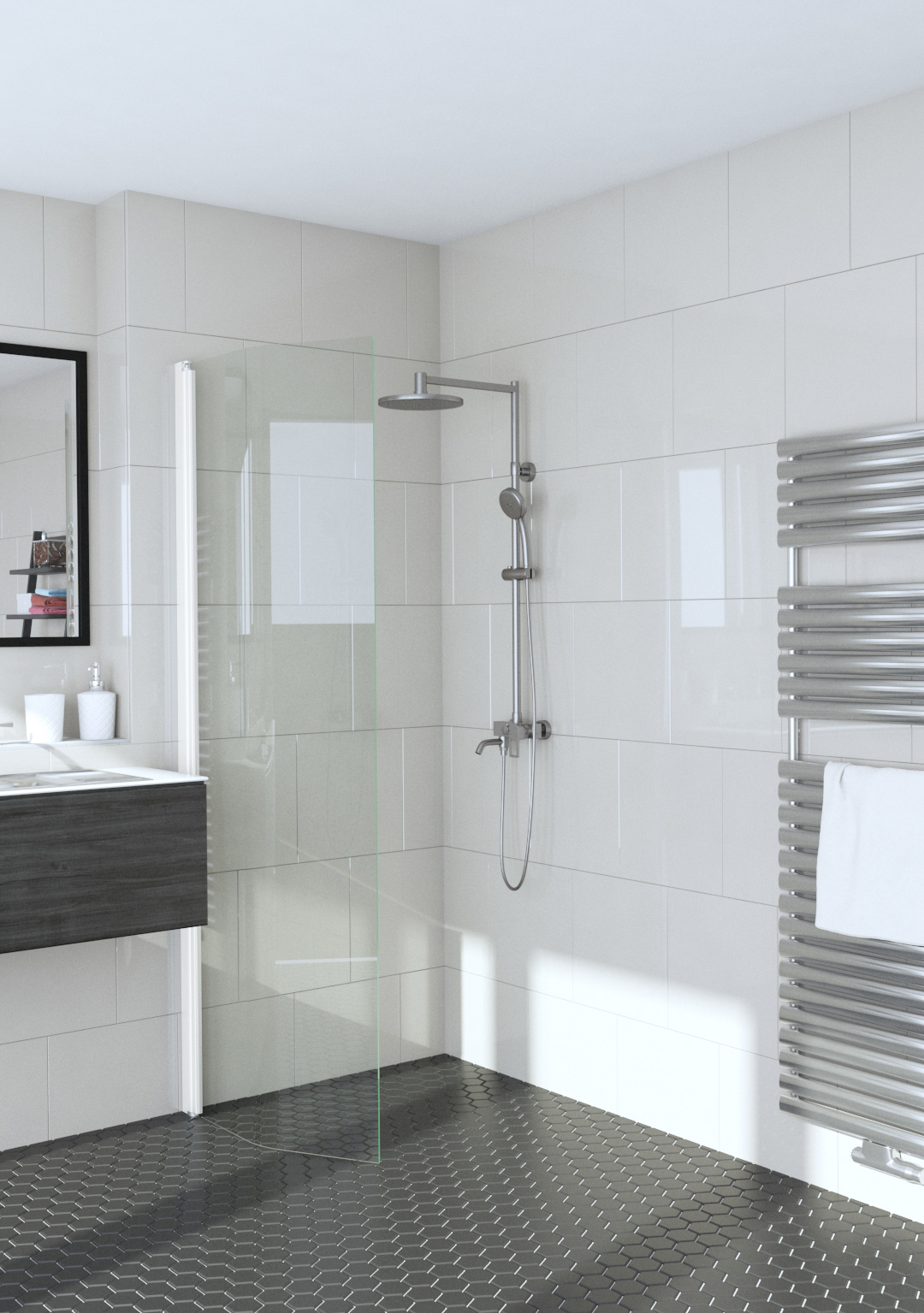

Bevelled hinged shower screen (Special batch)

The swinging shower screen protects the space and the fixtures located next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building.

The shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.

Special batch, product is available for limited time only.

The shower screen is attached to the building wall with a wall mountedprofile. The installation height is freely selectable. By installing the product close to the floor and installing a floor seal along the bottom edge of the panel the flow of water can be restricted. Installation guide

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, grey and bright profiles have chrome plated fittings.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower screen is selected from the standard dimensions. The wall mountedprofile has 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

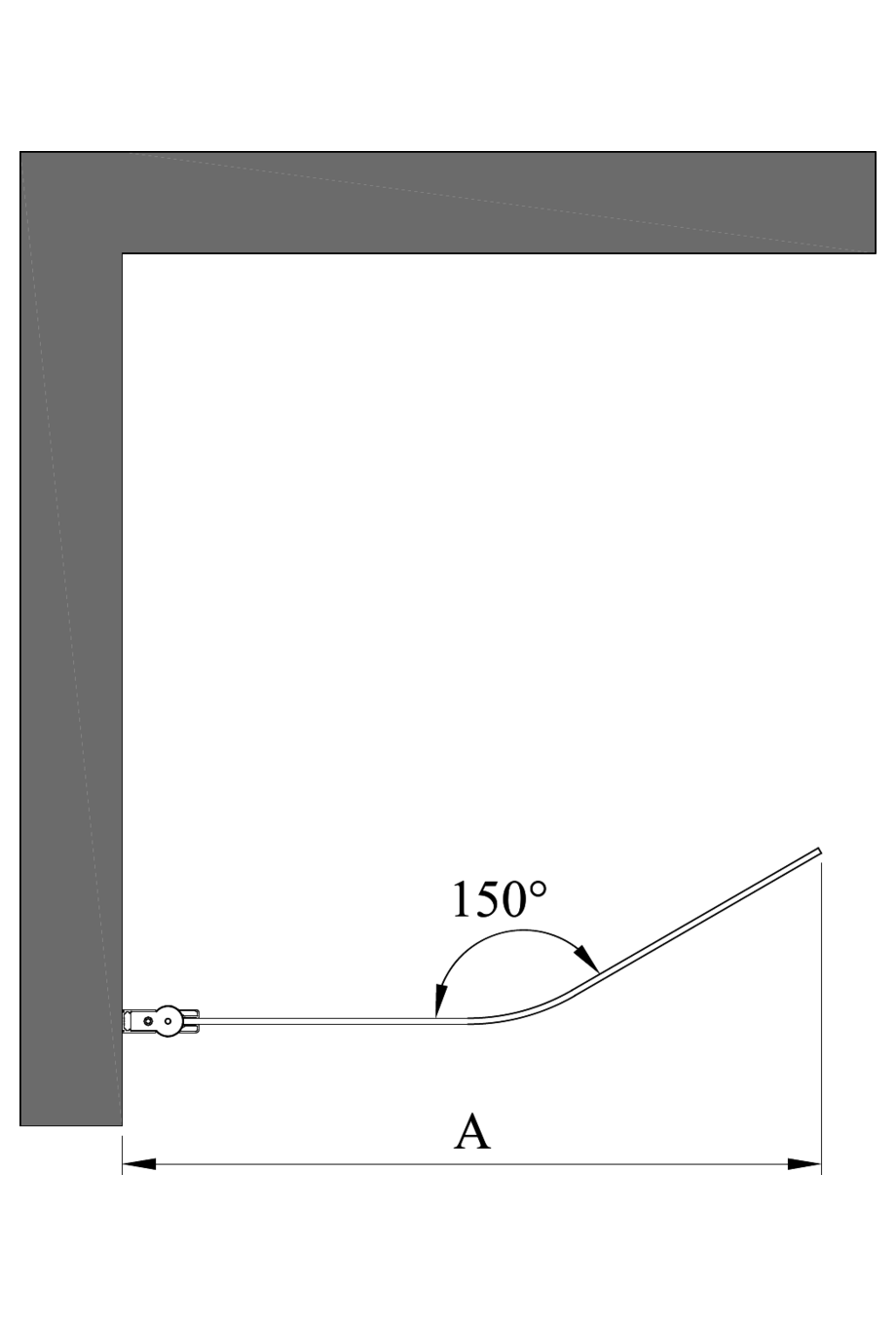

Hinged shower screen (A)

X

The total width of the selected product is:
- At its narrowest: 488mm
- At its widest: 503mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site.

The product can be equipped with a profile handle along the entire height of the panel, in order to facilitate use. The profile handle increases the width of the product by 10mm. Profile handle Is installed at the factory during the manufacturing of the product and cannot be removed later on.

Product

Product code

Price

1

Infinia 232

Product code

297-61-1

Price

0.00 €

2

Infinia 232 Hinged shower screen
White painted/Transparent/A=488 x 1900

Product code

232 61 0049

Price

461.00 €

3

TOTAL

Product code

Price

461.00 €

The total width of the selected product is:
- At its narrowest: 488mm
- At its widest: 503mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:

EAN:
