Forma F11

Fixed shower screen (Special batch)

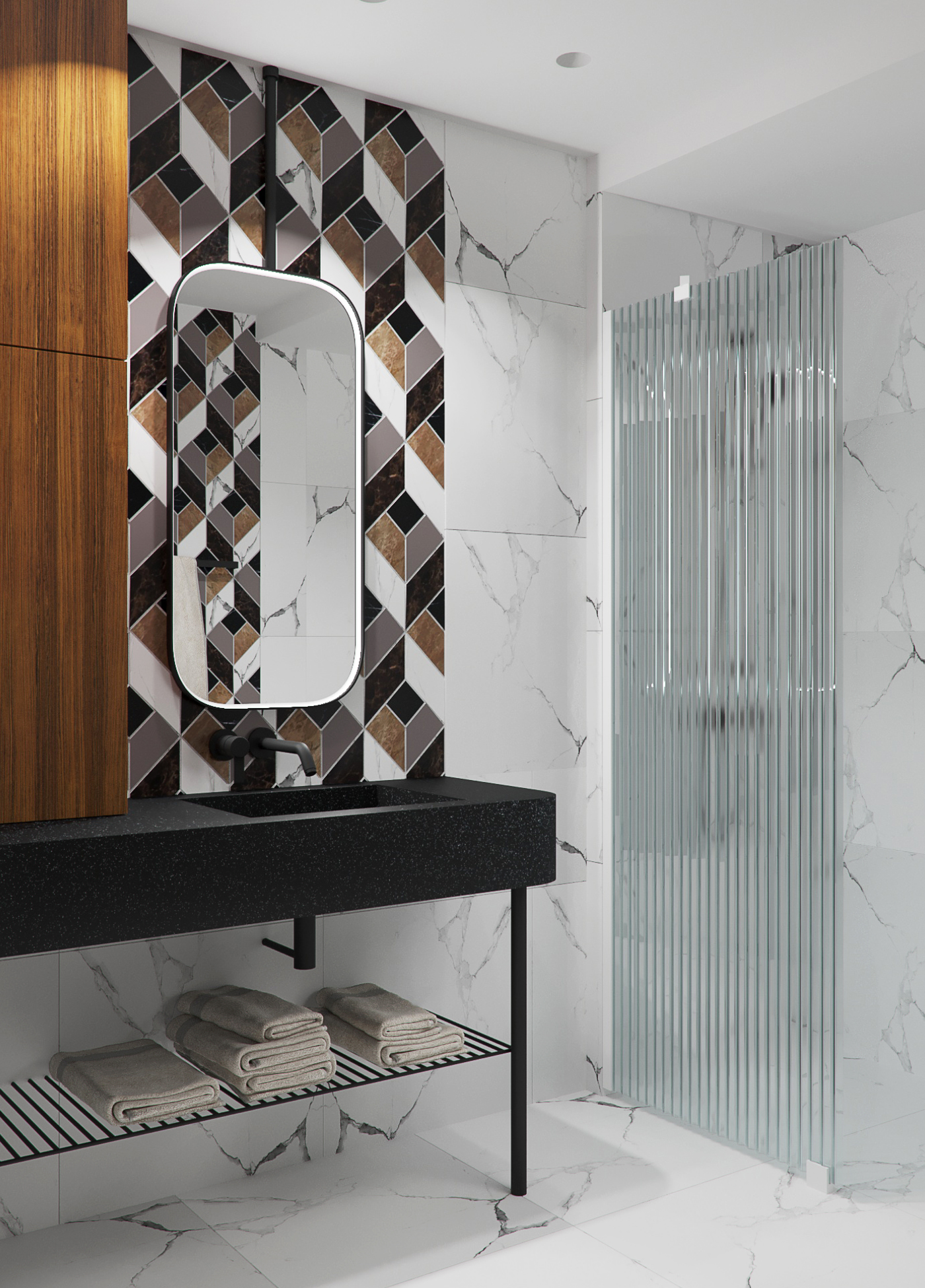

Fixed shower screen protects the space and the fixture next to the shower from splashing water. Fixed shower screen is sturdy and can be efficiently used for protection from water.

Special batch, product available for limited time only.

Shower screen is attached by its sides to the building wall with a wall mountedprofile. The panel is supported from the upper edge by the braces installed into the corner. The panel is supported from the bottom edge by the fitting glued to the floor, which means that there will be a 25mm gap between the panel and the floor. Between the panel and the floor a seal (standard part) may be installed, in order to prevent water from flowing under the panel. Installation guide

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White and black profiles have white or black painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.

The product is manufactured of 6mm thick tempered safety glass (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Other surface of the glass is patterned (reeded), other surface is smooth.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 20mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

Fixed screen (A)

X

The total width of the selected product is:
- At its narrowest: 380mm
- At its widest: 400mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:


The brace mounted to the upper edge of the panel can be replaced by a long side support mounted to the corner. The side support can be used for drying towels or as a rail for a shower curtain.An extension step can be placed under the glass clamp to raise it by 10mm.

Product

Product code

Price

1

Forma F11

Product code

F11-64-1

Price

0.00 €

2

Forma F11 Fixed screen
White painted/Reeded/A=380 x 2025

Product code

F11 64 0038

Price

723.00 €

3

TOTAL

Product code

Price

723.00 €

The total width of the selected product is:
- At its narrowest: 380mm
- At its widest: 400mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:

EAN:
