Classic D01 Special batch

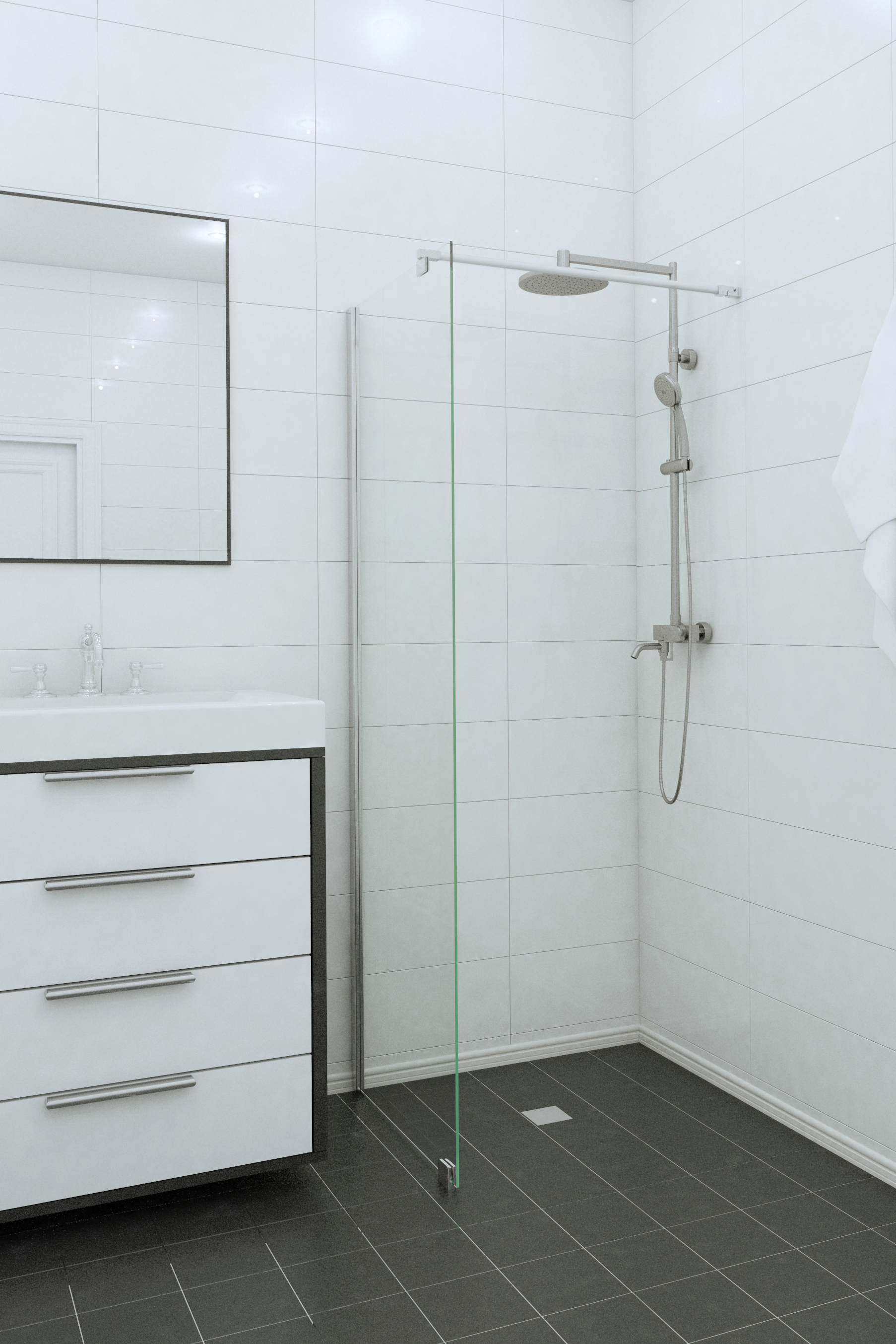

Fixed shower screen
The fixed shower screen protects the space and the fixtures located next to the shower from splashing water. The fixed shower screen is sturdy and can be efficiently used for protection from water.
Shower screen is attached by its sides to the building wall with a wall mounted profile. The panel is supported from the upper edge by a round supportrod which is mounted at a 90 degree angle between the glass and the building wall. The panel is supported from the bottom edge by a fitting glued to the floor, which means that there will be a 25mm gap between the panel and the floor. Between the panel and the floor a seal (standard part) may be installed, in order to prevent water from flowing under the panel. Installation guide
11 Working days
5 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The surface is anodized and the profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are chrome plated brass alloy.
The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear and grey are smooth surfaced and transparent panels
The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 13mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions.
Product size
The total width of the selected product is:
- At its narrowest: 478mm
- At its widest: 491mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
An extension step can be placed under the glass clamp to raise it by 10mm.
Product
Product code
Price
1
Classic D01 Special batch
Product code
D01-81-7
Price
0.00 €
2
Classic D01 Fixed screen
Aluminium/Transparent/A=478 x 1900
Product code
D01 81 0148
Price
150.00 €
3
TOTAL
Product code
Price
150.00 €
The total width of the selected product is:
- At its narrowest: 478mm
- At its widest: 491mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:
| EAN: |
|---|
