Forma 302

Hinged shower door

Hinged door protects the space and the furniture next to the shower from splashing water. When the shower is not in use, the shower screen can be turned against the wall of the building. The shower screen turns in both directions and is equipped with an adjustable centring. The centring attempts to return the shower screen back to the open and closed positions.

The shower screen is attached to the building wall with a wall mountedprofile. The installation height is freely selectable. By installing the product close to the floor and installing a floor seal along the bottom edge of the panel the flow of water can be restricted. Installation guide

Icon

19 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016), black (RAL 9005), Sand (RAL 1019) and Mocha (RAL 8025) surface treatment options are manufactured by powder coating. Grey and bright are anodized coatings. Profiles are sandblasted before anodization, so that the surface is as smooth as possible and there will be no fingerprints. The fittings used in the product, like square foot and brace bars, are made of brass alloy and correspond with the chosen profile color. White,black, Sand and Mocha profiles have painted fittings, bright profiles have chrome plated fittings and grey profiles have fittings with a brushed nickel finish.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). The safety panel can be treated in the factory with Cranith calcification prevention coating. The coating enables the panel to stay clean easier. Clear, grey and bronze are smooth surfaced and transparent glasses. Chinchilla, satin and reeded glasses are not fully transparent, details cannot be made out through the panel. Chinchilla and reeded are textured on one side and smooth on the other side. One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 15mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions. The width can be further extended by 34 mm via the extension profile (optional accessory). The extension profile can be grooved, for example, for the inlet of the surface water pipes.

Product size

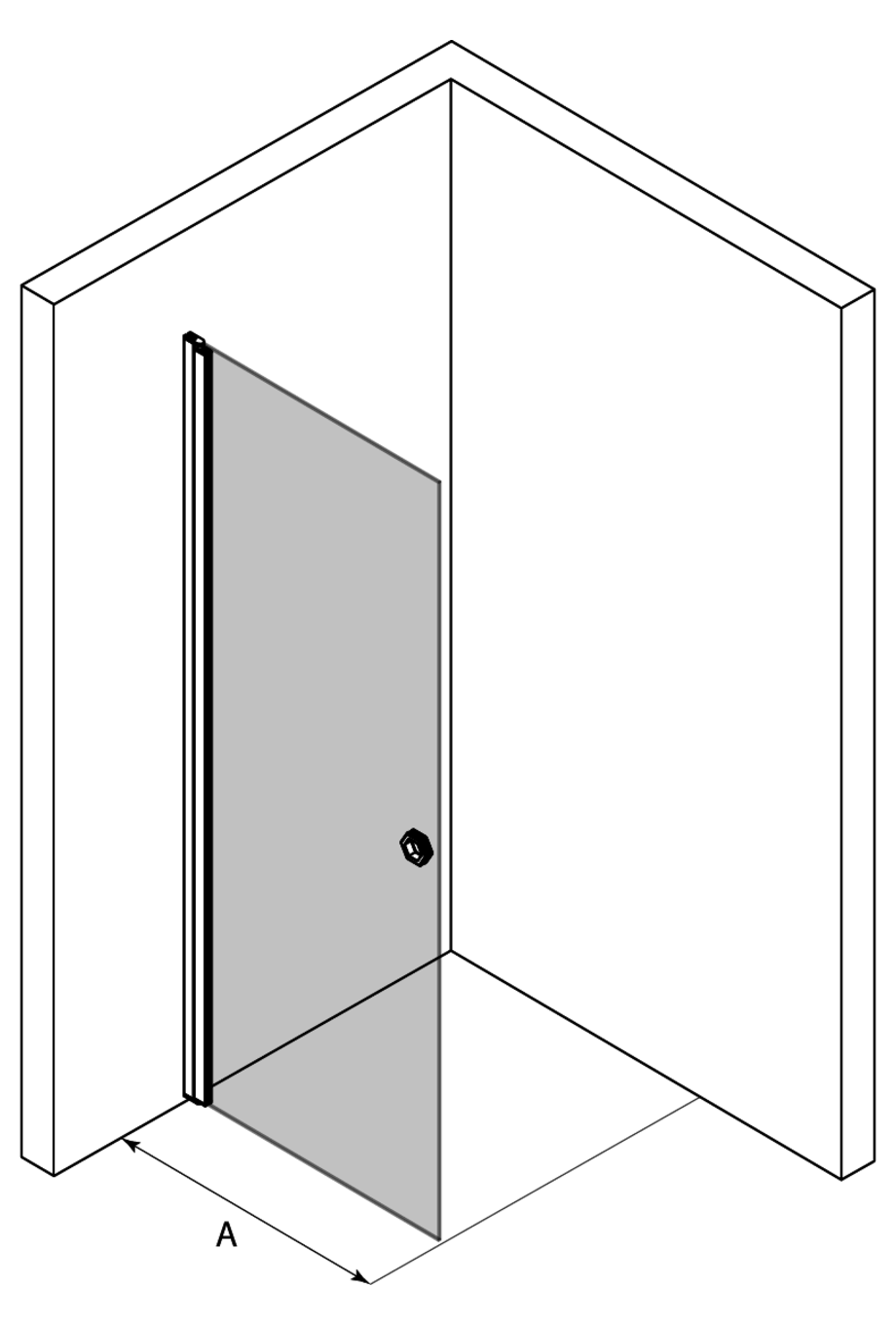

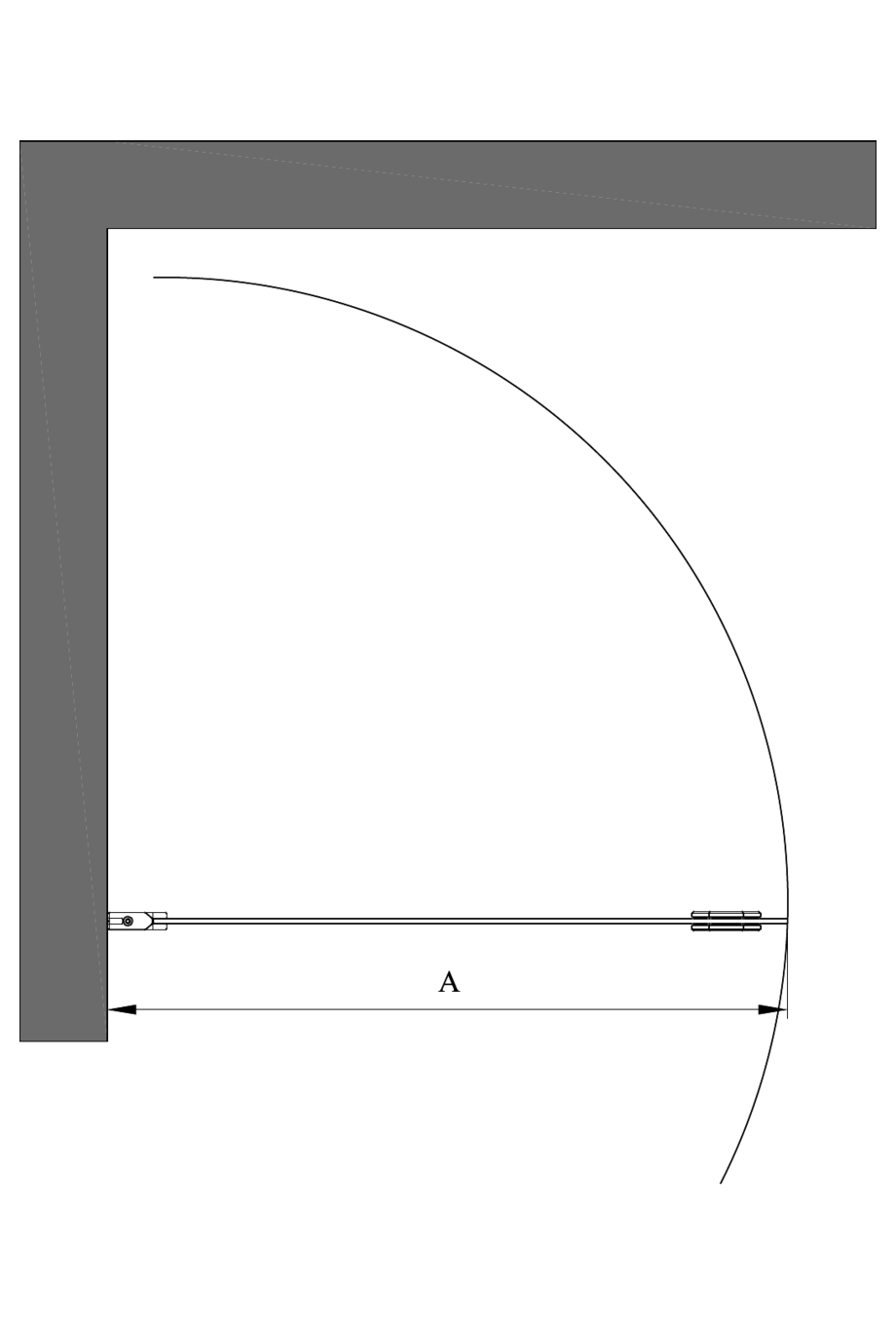

Hinged door (A)

X

The total width of the selected product is:
- At its narrowest: 385mm
- At its widest: 400mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Please select handle model:

Product

Product code

Price

1

Forma 302

Product code

302-61-1

Price

0.00 €

2

Forma 302 Hinged door
White painted/Transparent/A=385 x 2025

Product code

302 61 0038

Price

290.00 €

3

Hexagonal handle chrome

Product code

F01 RL MMMM

Price

60.00 €

4

Forma campaign 15.1.-14.4.2024 -20%

Product code

DISCOUNT

Price

-70.00 €

5

TOTAL

Product code

Price

280.00 €

The total width of the selected product is:
- At its narrowest: 385mm
- At its widest: 400mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:

EAN:
