Classic Ram F01

Fixed framed shower screen

The fixed and framed shower screen protects the space next to the shower from water splatter. The lean frame and no added seals creates an elegant touch to the bathroom.

Shower screen is attached by its side to the building wall with a wall mounted profile. The panel is supported from the upper edge by the braces installed into the corner. The panel is supported from the bottom edge by the fitting glued to the floor, which means that there will be a 25mm gap between the panel and the floor. Installation guide

Icon

19 Working days

Icon

5 year warranty

The profiles of the product are manufactured of aluminium and painted black (RAL 9005) through powder coating.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions. wall mountedprofiles have 13mm of adjustment range. The adjustment range can be used for levelling any tilt of the building s wall or for extension of the width of the shower screen in relation to the provided standard dimensions.

Product size

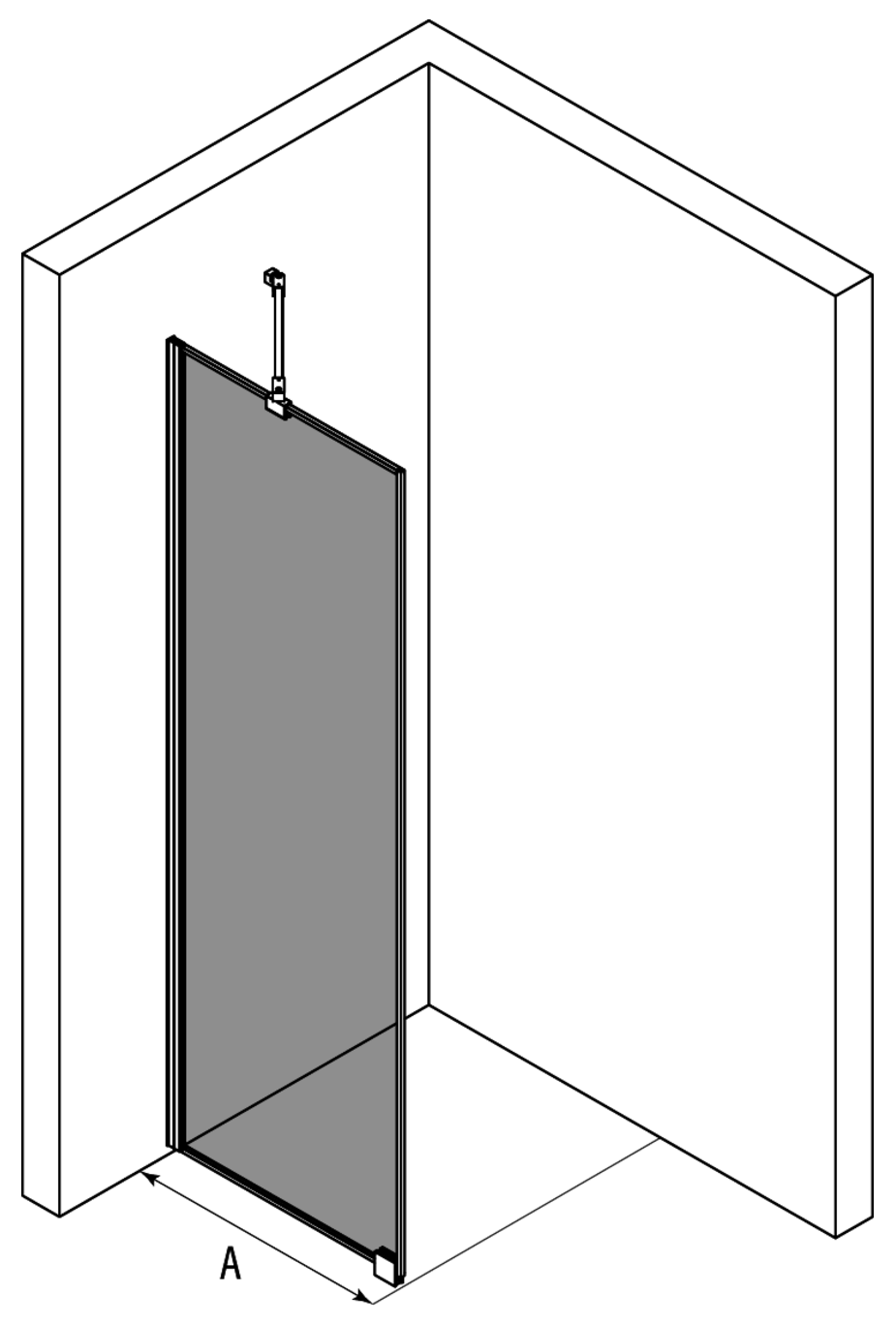

Fixed screen (A)

X

The total width of the selected product is:
- At its narrowest: 478mm
- At its widest: 491mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:


Product

Product code

Price

1

Classic Ram F01

Product code

F01-91-7

Price

0.00 €

2

Classic F01 Fixed screen
Black painted/Transparent/A=478 x 1900

Product code

CF1 91 0148

Price

300.00 €

3

TOTAL

Product code

Price

300.00 €

The total width of the selected product is:
- At its narrowest: 478mm
- At its widest: 491mm
Dimensions may deviate from the declared values if adjustment tolerance must be used to level the tilt of the building s walls.:

EAN:
