Vetro 535 (512+513)

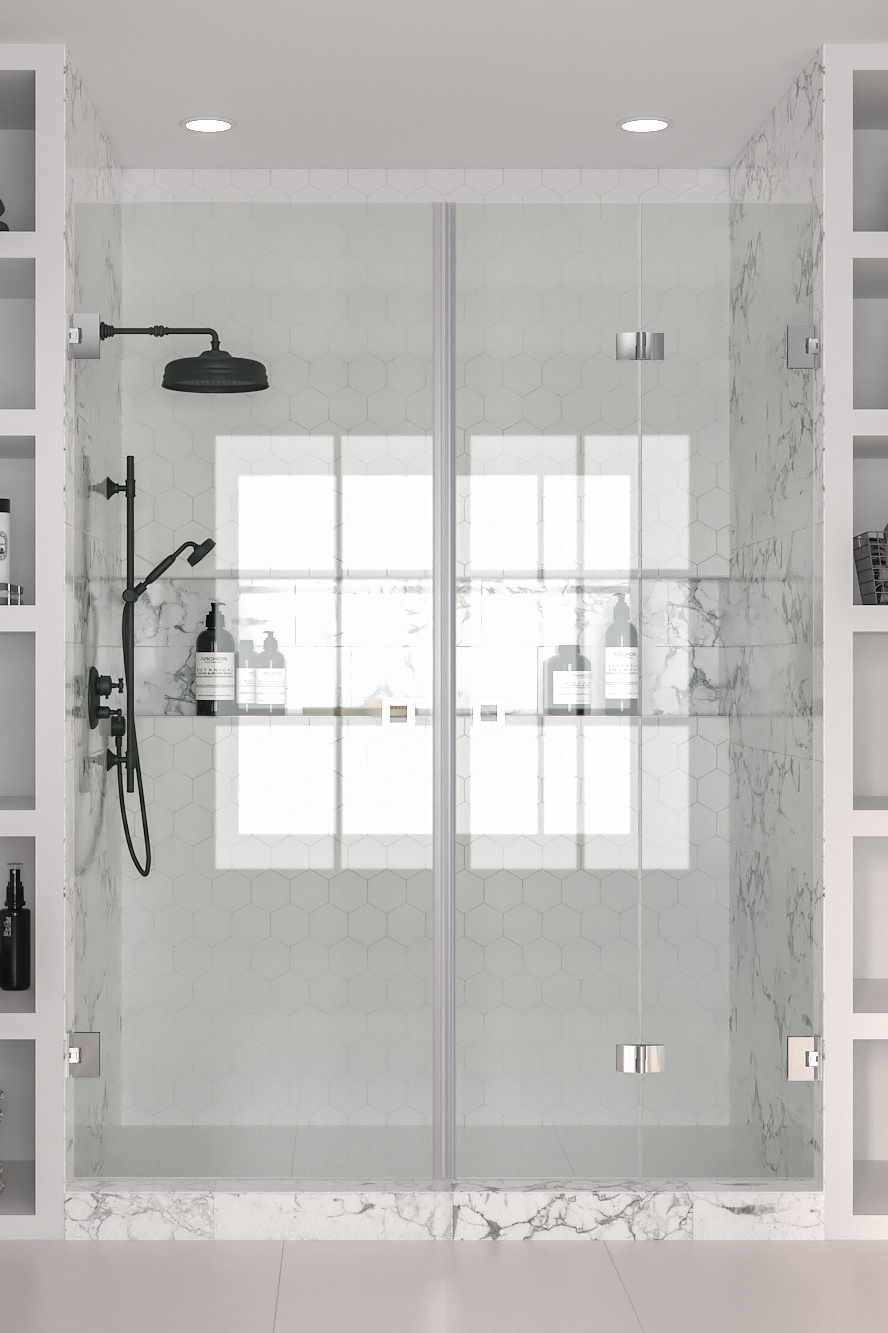

Alcove fitting with a hinged and a folding door

The alcove fixture consists of a hinged door and a folding door. The product is well-suited for a shower enclosure where doors do not have the space to properly open outward on both sides. The folding door does not require space from outside the shower area, but instead the door rotates folding inside the shower area so that the door panels fold into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use, the door can be turned against the walls of the building.

Doors rotate 90 degrees in both directionsand are equipped with adjustable centring. The centring attempts to return the doors back to the open and closed positions. In addition the outer panel of the folding door rotates 180 degrees in relation to the inner panel so that the panels fold against each other inside of the shower area. A magnet seal keeps the door tightly closed during showering.

The hinges of the door panels are mounted directly to the building wall. Floor seals can be installed along the bottom edge of the door panels, which restricts the flow of water. Installation guide

Icon

19 Working days

Icon

20 year warranty

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the alcove fitting can be selected from the standard sizes or it can be manufactured using custom dimensions.

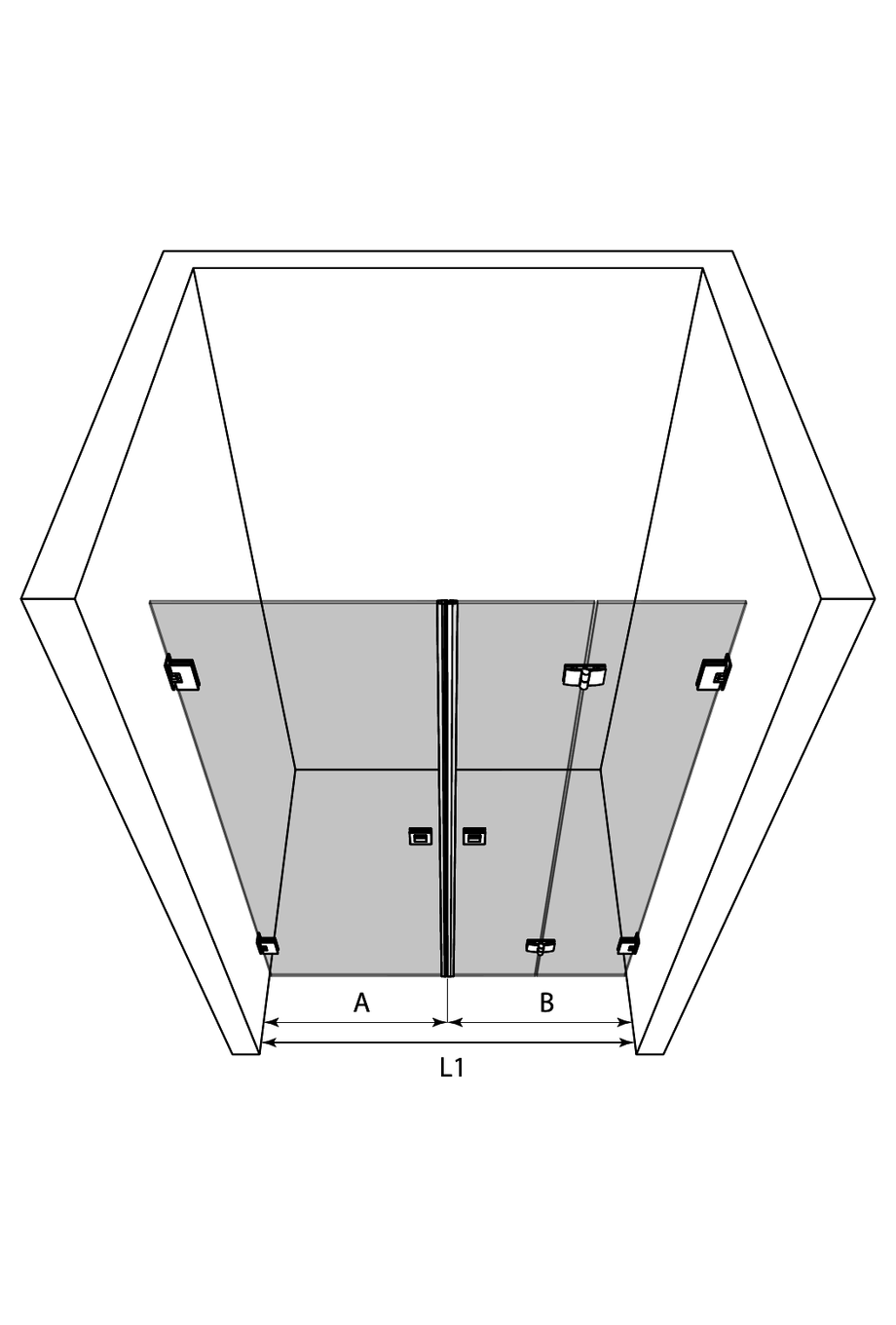

Product size

Alcove hinged door (A)

X

Alcove folding door (B)

X

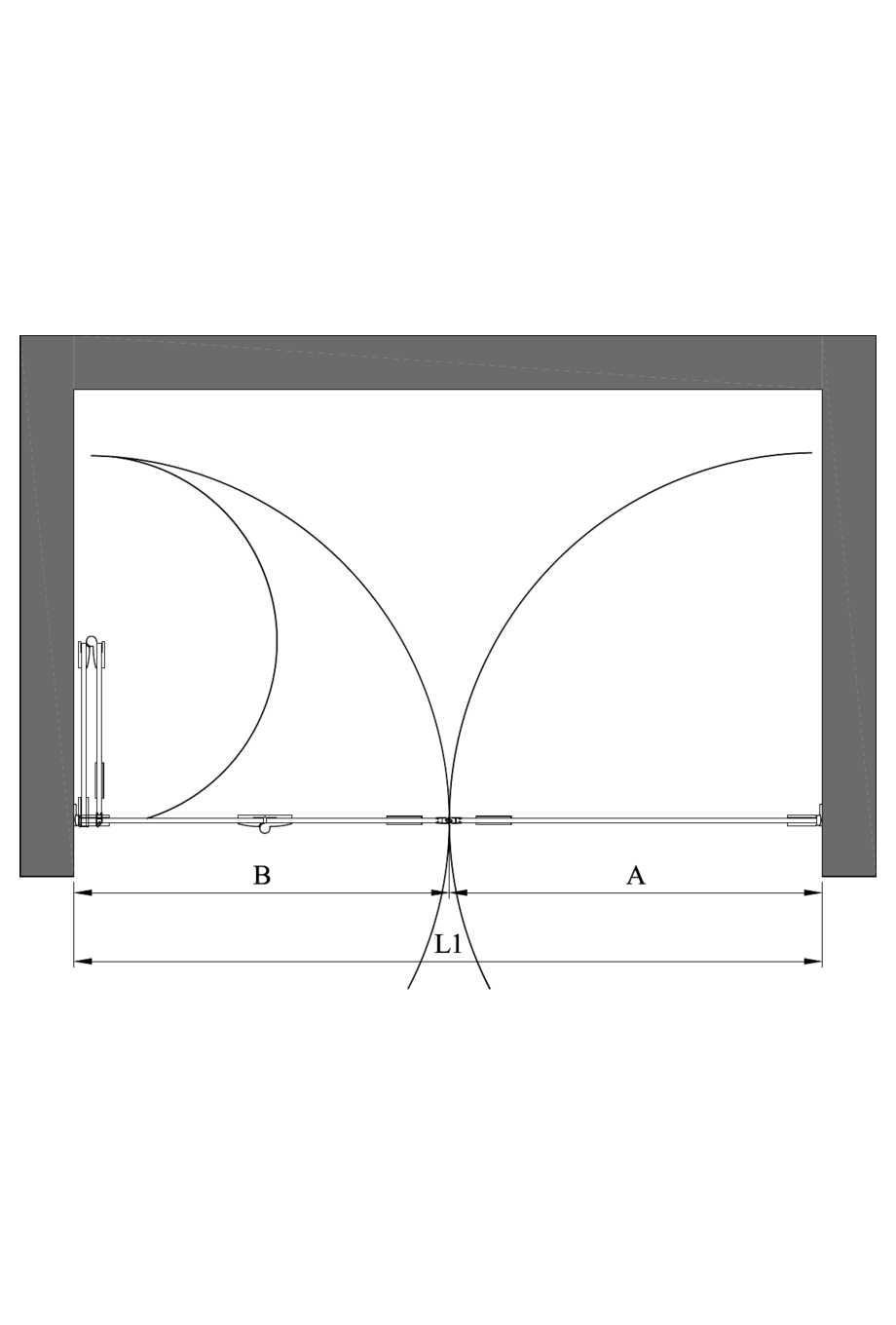

The selected combination can be installed into the opening (L1) the width of which is: 1089mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Choose handle

The middle hinges of the folding door have handedness. When ordering, you must choose whether the folding door is to be installed to the left or the right side when viewed from outside of the shower area. Changing handedness afterwards requires changing the middle hinges initially installed in the factory with others.

Product

Product code

Price

1

Vetro 535 (512+513)

Product code

535-21-42

Price

0.00 €

2

Vetro 512 Alcove hinged door
Chrome plated/Transparent/A=393 x 2000

Product code

512 21 0038

Price

410.00 €

3

Vetro 513 Alcove folding door
Chrome plated/Transparent/B=696 x 2000

Product code

513 21 0068

Price

510.00 €

4

Magnet seal pair

Product code

915 2L 0004

Price

40.00 €

5

Round handle

Product code

Y45 2L MMMM

Price

25.00 €

6

Left

Product code

961 RL MMMM

Price

0.00 €

7

Round handle

Product code

Y45 2L MMMM

Price

25.00 €

8

TOTAL

Product code

Price

1010.00 €

The selected combination can be installed into the opening (L1) the width of which is: 1089mm.
The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:

EAN:
