Bläk 977 New York

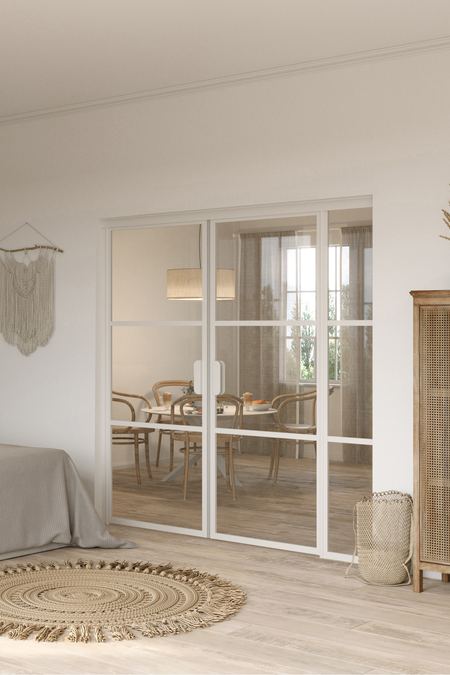

Glass wall with double doors and fixed panels on hinge sides

The glass wall configuration consists of a double door with fixed panels on both sides.

Doors open 180 degrees outside

The wall panels are mounted to the building wall on each side of the enclosure using wall mounting profiles and floor fitting profiles. The door panels are attached to the wall fixed panels from both sides. The panels are secured with self-drilling screws. The top of the glass wall is secured by a long profile, covering the top of the unit from one side, and a short profile, covering the fixed part on the side which the door opens to. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.

Icon

21 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.

The product is manufactured of 6mm thick tempered safety panel (EN 12150). One side of the satin panel is etched to acquire a velvety feel and the other side is smooth. When choosing a satin panel product, bear in mind that the etched surface of the panel is sensitive to scratches and stains.

Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is exact as indicated in total door measure.

Product size

The selected product can be installed into the opening the total width of which is 1900mm and the total length 2000mm.:


Product

Product code

Price

1

Bläk 977 New York

Product code

977-61-0000

Price

0.00 €

2

Bläk 734 Hinge side panel
White painted/Transparent=505 x 2000

Product code

U34 61 0000

Price

346.00 €

3

Bläk 734 Door
White painted/Transparent=472 x 1986

Product code

U34 61 1000

Price

440.00 €

4

Bläk 734 Door
White painted/Transparent=472 x 1986

Product code

U34 61 1000

Price

440.00 €

5

Bläk 734 Hingeside panel
White painted/Transparent=505 x 2000

Product code

U34 61 0000

Price

346.00 €

6

Bläk 704 Broad ceiling list
White painted/Transparent=10 x 1900

Product code

704 61 0000

Price

0.00 €

7

Blak full Blak full edge profile, middle part
White painted/=668

Product code

03A 6L 0000

Price

0.00 €

8

Blak full Blak full edge profile, middle part
White painted/=668

Product code

03A 6L 0000

Price

0.00 €

9

Magnet locking

Product code

758 6L MMMM

Price

0.00 €

10

TOTAL

Product code

Price

1572.00 €

The selected product can be installed into the opening the total width of which is 1900mm and the total length 2000mm.:

EAN: 6418379001568
