Bläk 722 Tokyo

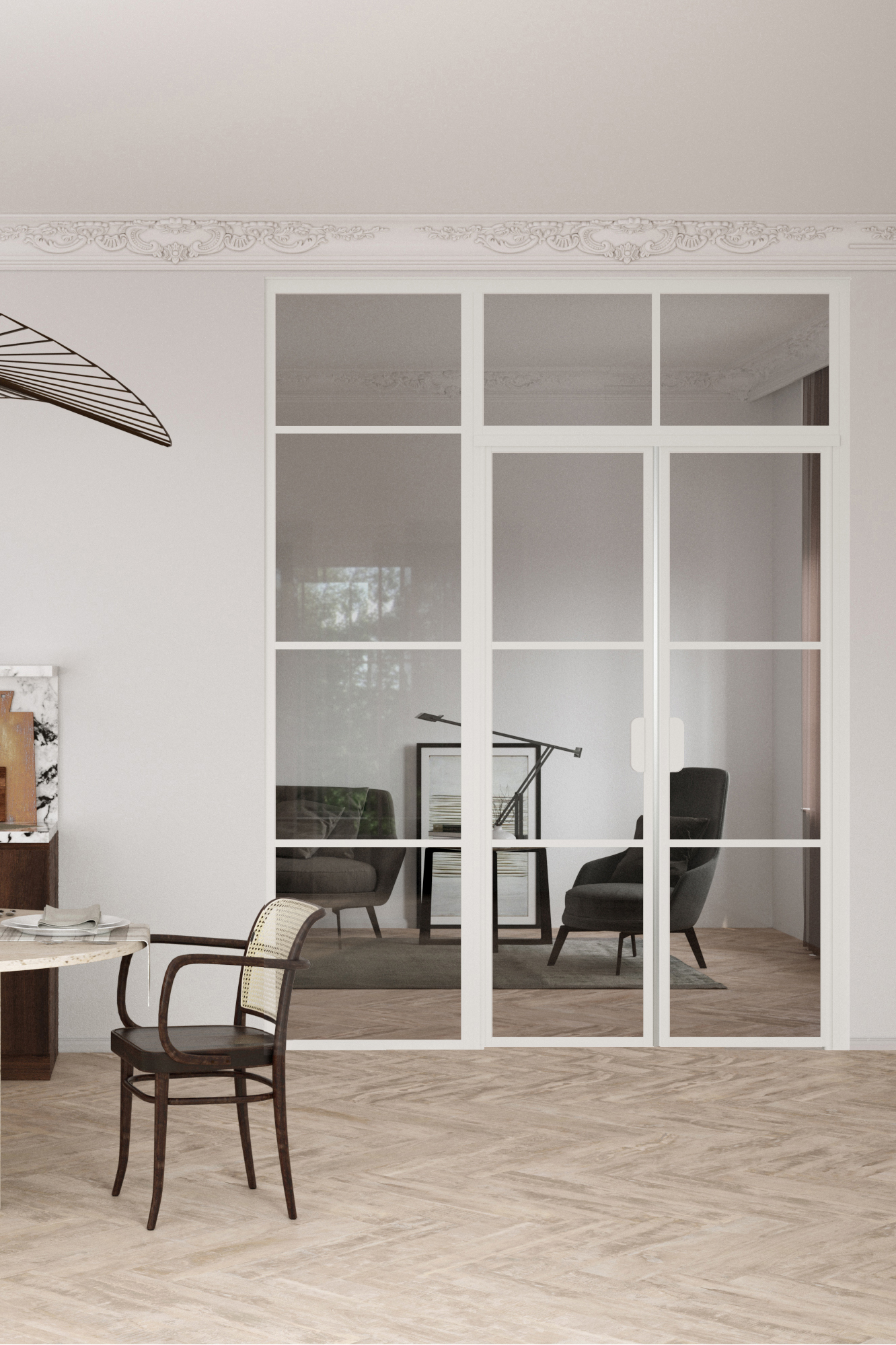

Glass wall with hinge side fixed panel, pair door and upper window

The glass wall configuration consists of an upper window, a double door and a fixed panel.

The doors open 90 degrees to the outside and are equipped with adjustable centring. The function of the centering is to return the door to the open and closed positions.

The door panel with fixed part is mounted by the fixed part to the building wall and floor using wall mounting profile and floor fitting profile. The door panel is mounted to the other side of the enclosure using wall mounting profile. The panels and the upper window are secured with self-drilling screws. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.

Icon

26 Working days

Icon

20 year warranty

The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.

The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).

Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 22mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is 146mm smaller than indicated total door measure .

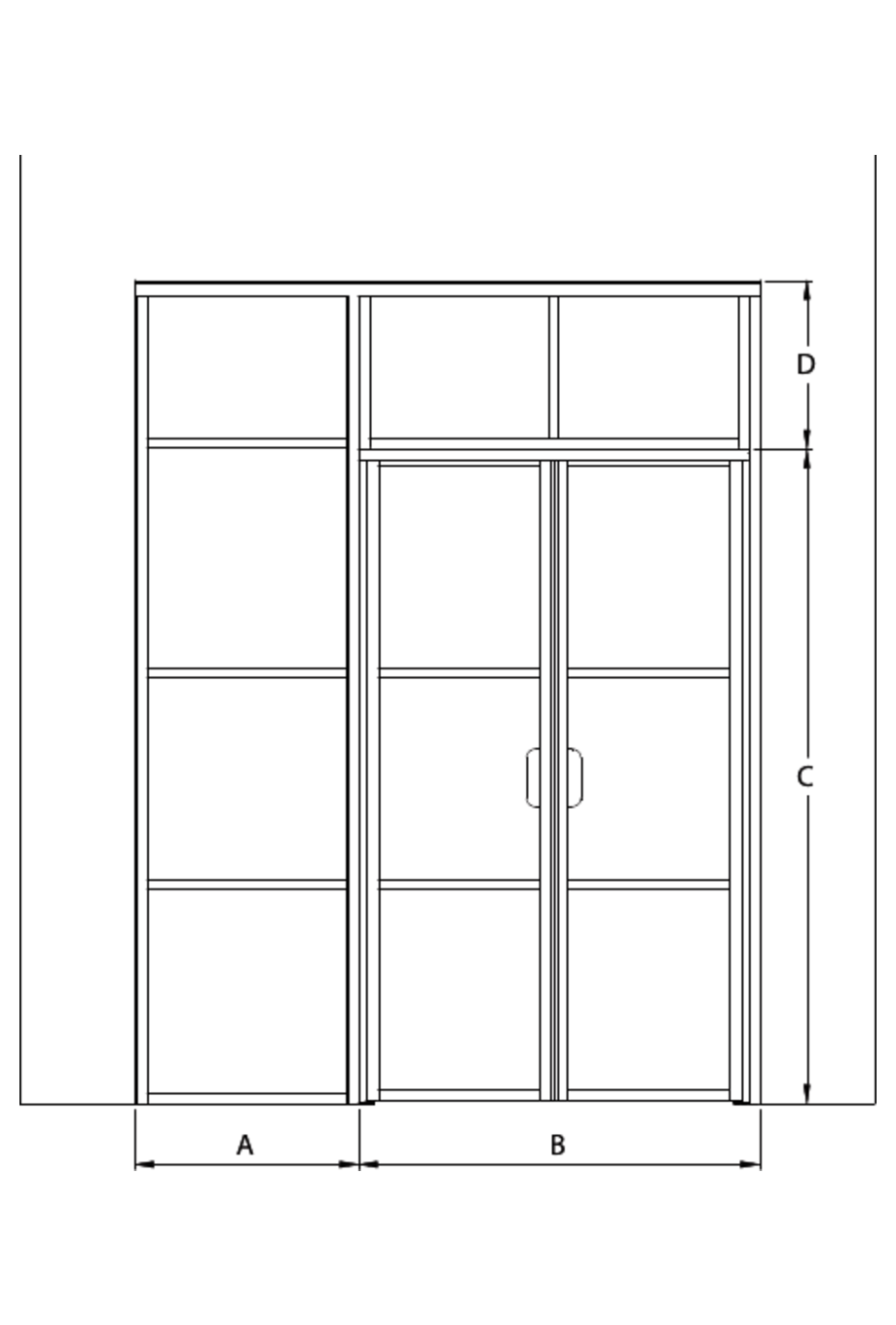

Product size

The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2400mm.:


Product

Product code

Price

1

Bläk 722 Tokyo

Product code

722-61-0000

Price

0.00 €

2

Blak 736 Door
White painted/Transparent=470 x 2000

Product code

736 61 0000

Price

440.00 €

3

Blak 736 Door
White painted/Transparent=470 x 2000

Product code

736 61 0000

Price

440.00 €

4

Bläk 735 Upper window
White painted/Transparent=966 x 400

Product code

735 61 0000

Price

231.00 €

5

Blak 737 Hinge side panel
White painted/Transparent=500 x 2400

Product code

737 61 0000

Price

378.00 €

6

Blak 736 Door and upper window mounting kit
White painted/Transparent=10 x 2400

Product code

725 61 0000

Price

0.00 €

7

Bläk 710 Broad ceiling list
White painted/=10 x 1500

Product code

778 6L 0000

Price

0.00 €

8

Maintenance manual Maintenance guide
/=

Product code

059 RL MMMM

Price

0.00 €

9

Magnet locking

Product code

726 RL MMMM

Price

0.00 €

10

Tokyo -grid

Product code

702 6L 0000

Price

63.00 €

11

Tokyo -grid

Product code

702 6L 0000

Price

63.00 €

12

Tokyo -grid

Product code

702 6L 0000

Price

63.00 €

13

Tokyo -grid

Product code

702 6L 0000

Price

63.00 €

14

BLÄK SERIES 01.08-30.11.2024 -20%

Product code

DISCOUNT

Price

-348.20 €

15

TOTAL

Product code

Price

1392.80 €

The selected product can be installed into the opening the total width L1 of which is 1500mm and the total length L2 2400mm.:

EAN: 6418379998707
