Bläk 987 Paris
Glass wall with double doors and fixed panels on hinge sides

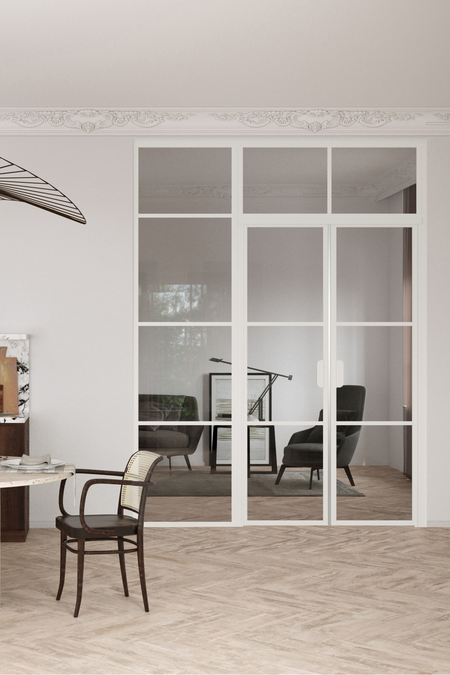

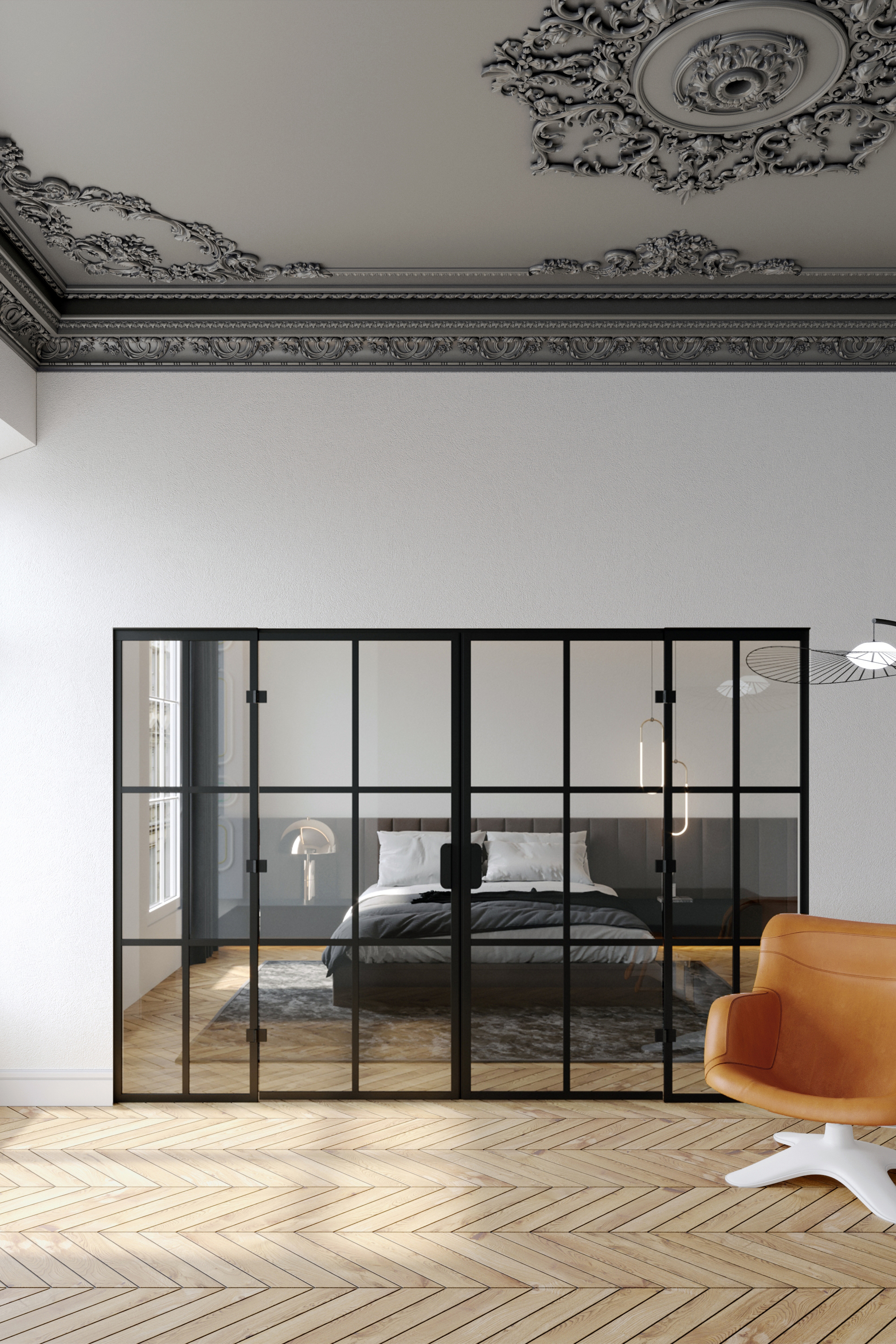

The glass wall configuration consists of a double door with fixed panels on both sides.

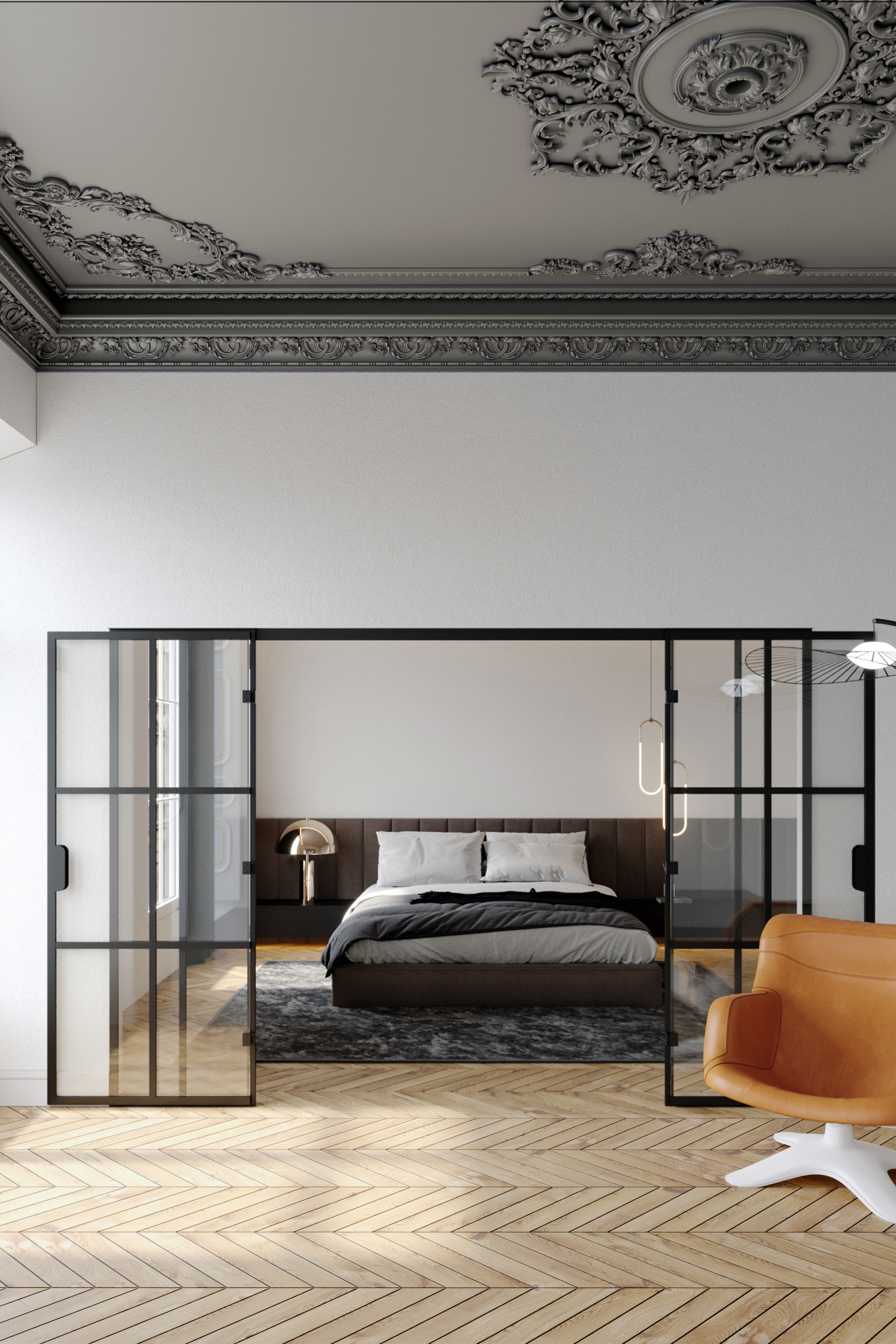

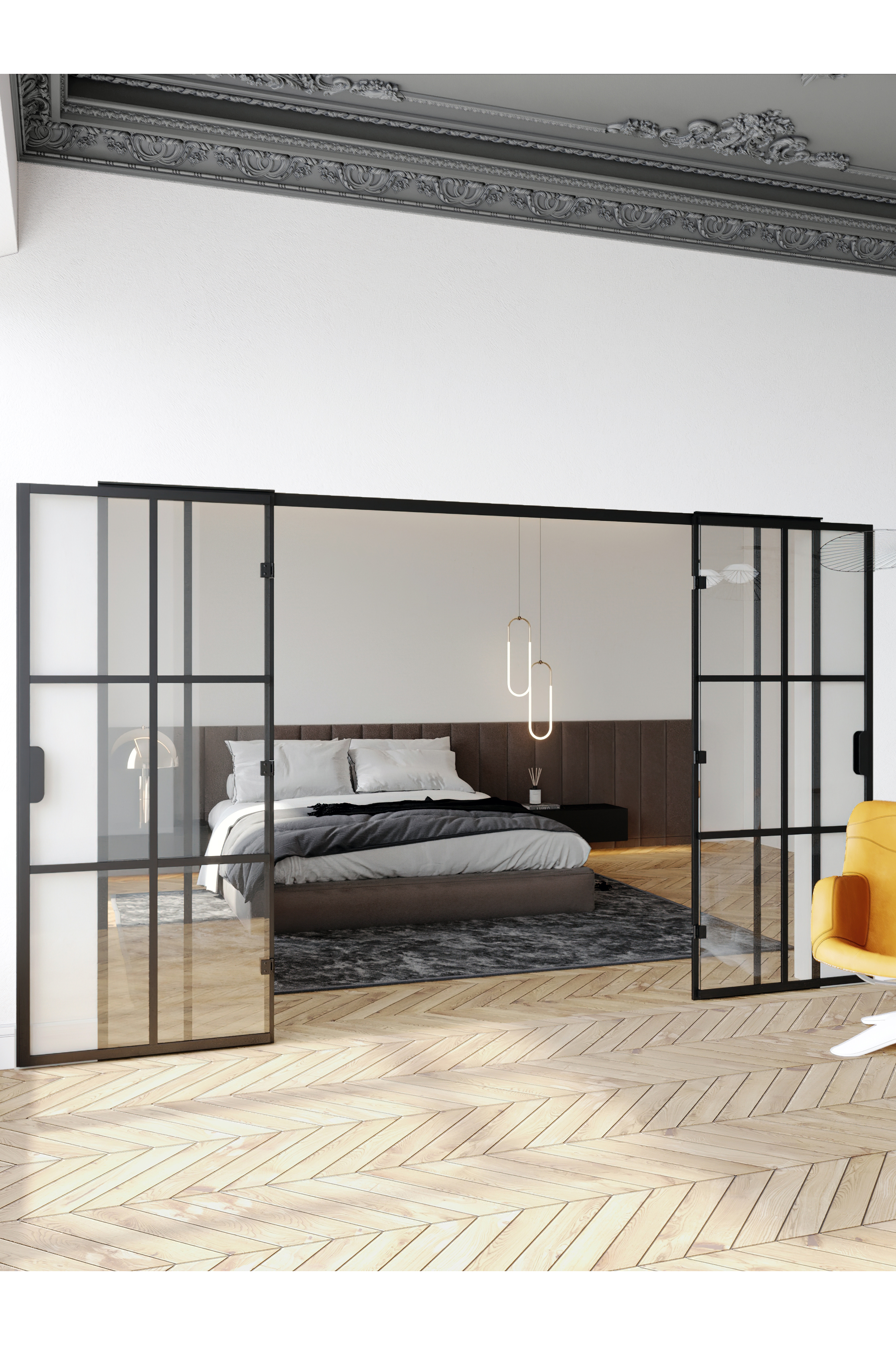

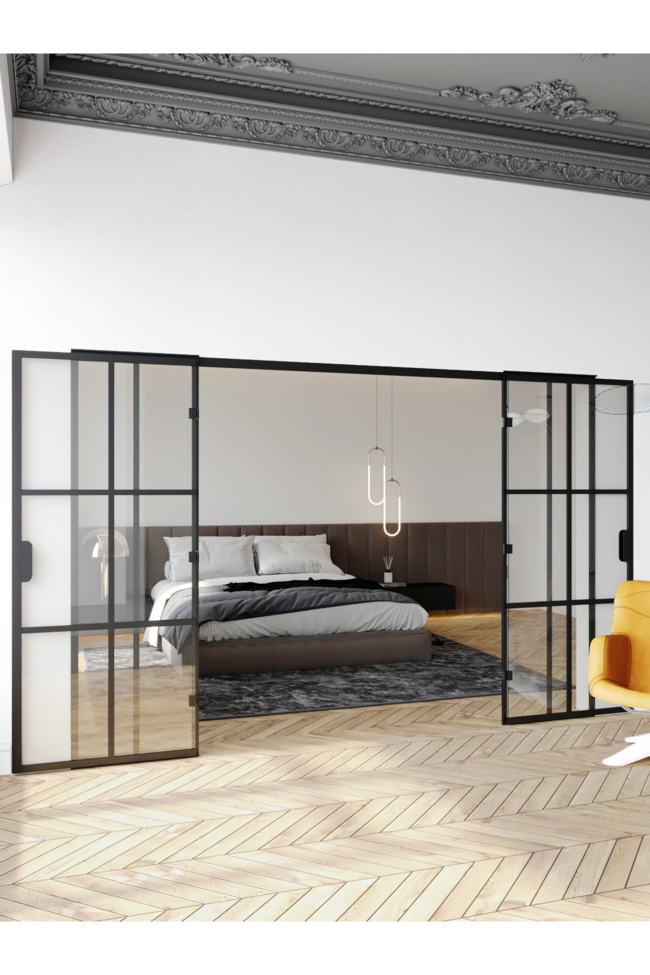

Doors open 180 degrees outside
The wall panels are mounted to the building wall on each side of the enclosure using wall mounting profiles and floor fitting profiles. The door panels are attached to the wall fixed panels from both sides. The panels are secured with self-drilling screws. Magnet seals are installed on each of the doorway panels to keep the door tightly closed.
26 Working days
20 year warranty
The profiles mounted to the edges of the panel are manufactured of aluminium. The white (RAL 9016) and black (RAL 9005) surface treatment options are manufactured by powder coating.
The product is manufactured from a 6mm thick clear tempered safety panel (EN 12150).
Glass wall is manufactured according to custom dimensions. The wallmounting profiles have the total of 14mm adjustment tolerance. The adjustment tolerance can be used for levelling any tilt in the building s walls as well as for accommodating the alcove fitting into the installation opening. Door opening is exactly the same as indicated in total door measure.

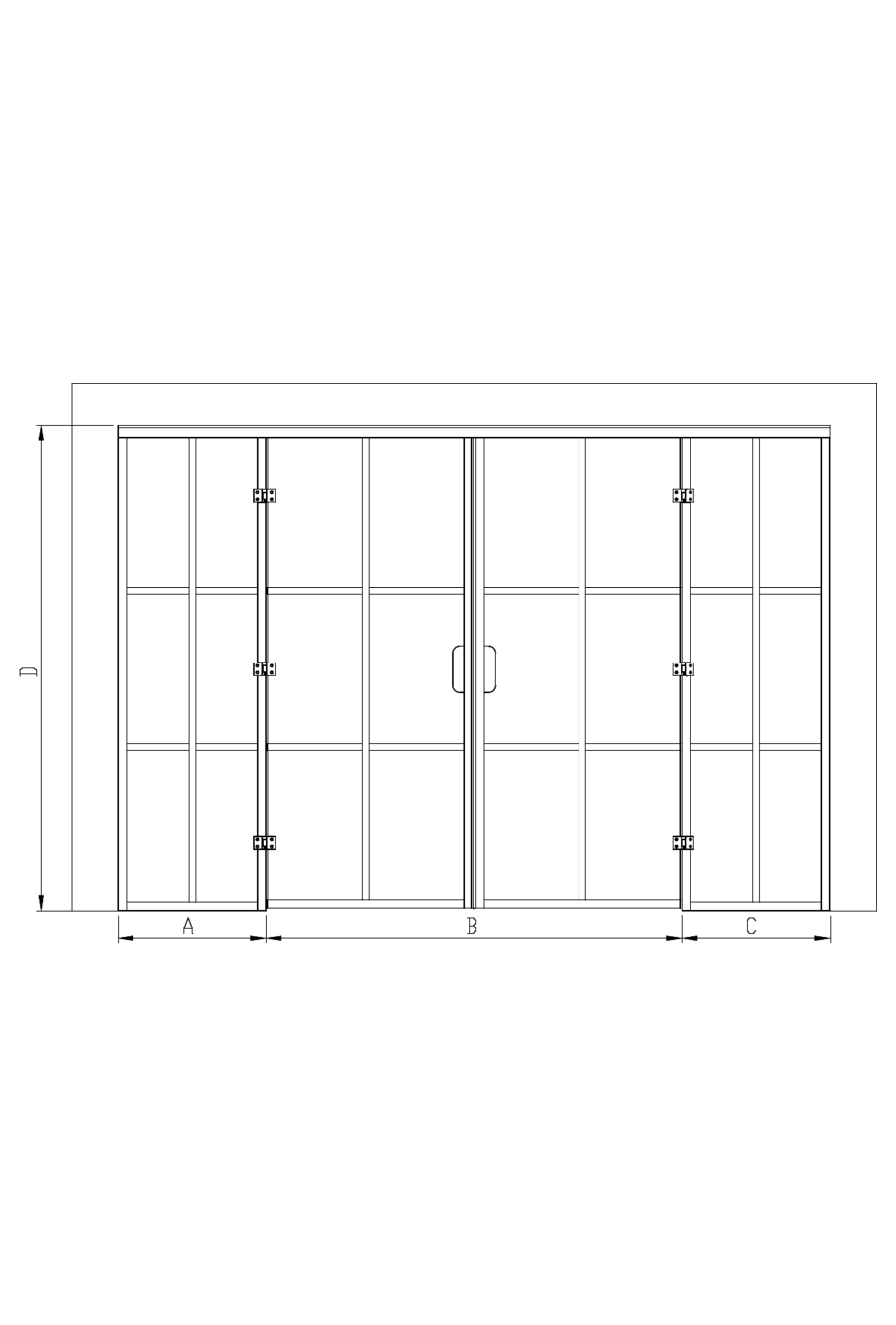

Product size
The selected product can be installed into the opening the total width L1 of which is 1900mm and the total length L2 2000mm.:
Product
Product code
Price
1
Bläk 987 Paris
Product code
987-61-0000
Price
0.00 €
2
Bläk 734 Hinge side panel
White painted/Transparent=505 x 2000
Product code
U34 61 0000
Price
330.00 €
3
Bläk 734 Door
White painted/Transparent=472 x 1986
Product code
U34 61 1000
Price
420.00 €
4
Bläk 734 Door
White painted/Transparent=472 x 1986
Product code
U34 61 1000
Price
420.00 €
5
Bläk 734 Hingeside panel
White painted/Transparent=505 x 2000
Product code
U34 61 0000
Price
330.00 €
6
Bläk 704 Broad ceiling list
White painted/Transparent=10 x 2900
Product code
704 61 0000
Price
0.00 €
7
Blak full Blak full edge profile, middle part
White painted/=668
Product code
03A 6L 0000
Price
0.00 €
8
Blak full Blak full edge profile, middle part
White painted/=668
Product code
03A 6L 0000
Price
0.00 €
9
Paris -frame
Product code
709 RL 0000
Price
200.00 €
10
Magnet locking
Product code
758 6L MMMM
Price
0.00 €
11
Paris -frame
Product code
709 RL 0000
Price
200.00 €
12
Paris -frame
Product code
709 RL 0000
Price
200.00 €
13
Paris -frame
Product code
709 RL 0000
Price
200.00 €
14
TOTAL
Product code
Price
2300.00 €
The selected product can be installed into the opening the total width L1 of which is 1900mm and the total length L2 2000mm.:
| EAN: | 6418379001728 |
|---|
