Vetro 542 (511x514)

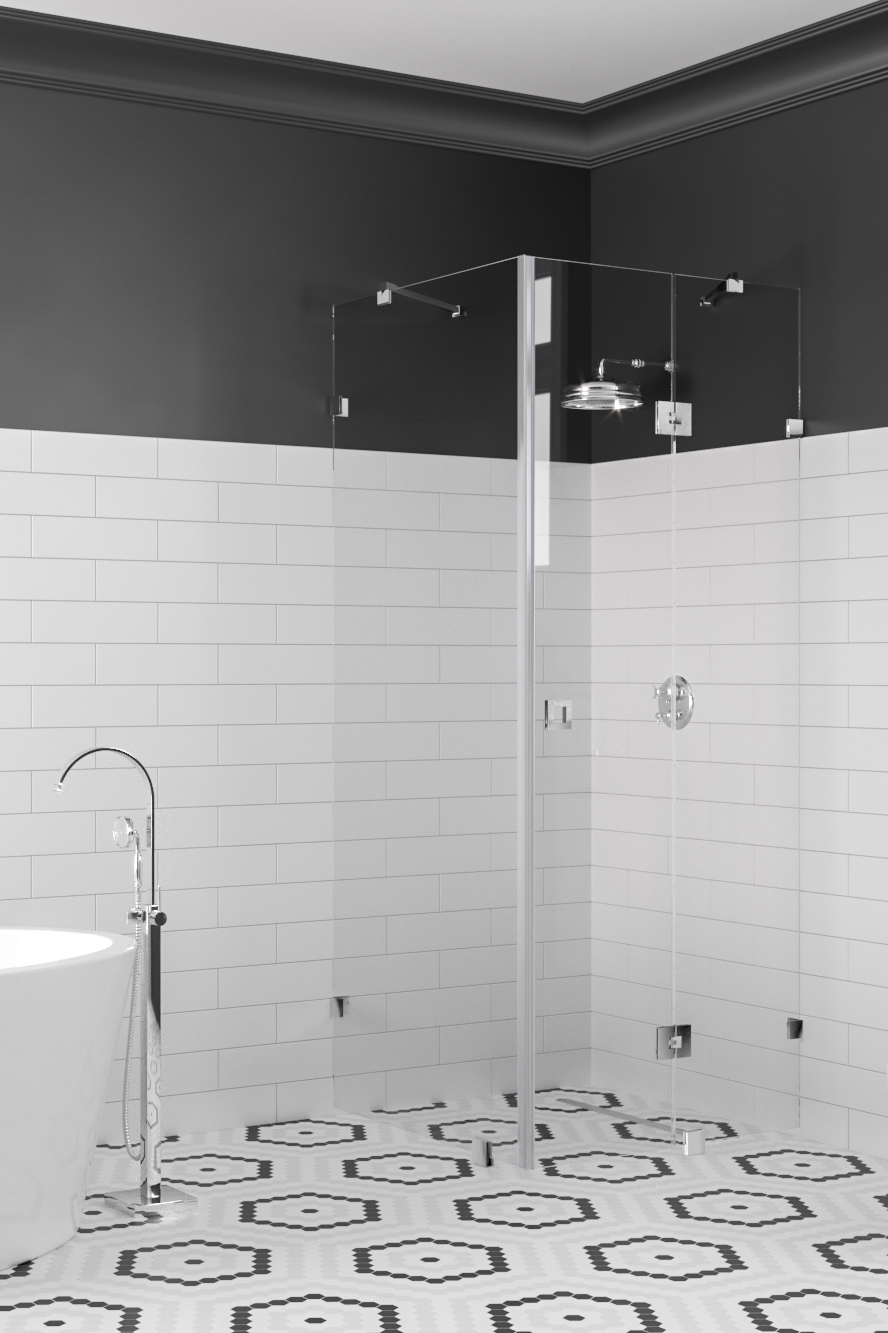

Shower enclosure with a fixed wall and a hinged door with a fixed part
The shower enclosure consists of two fixed walls, into one of which a hinged door has been attached. The product is well-suited for a shower corner on the outside of which are fixtures on both sides. Fixed walls can be measured according to the depth of the fixtures so that when opened, the door does not hit the fixtures
The door opens 90 degrees to the outside and is equipped with an adjustable centring. The centring tries to return the door back to the open and closed positions. A magnet seal keeps the door tightly closed during showering.
Fixed walls are attached to the wall of the building from the sides by means of wall mountedfittings and supported from the top edge by the braces installed in the corners as well as from the bottom edge by the fitting glued to the floor. Between the panels of the fixed walls and the floor will be a 25mm high gap. Between the panel and the floor may be installed seal (standard part)s , so that water will not be able to flow under the panels. At the bottom edge of the door panel can be installed which restricts the flow of water. Installation guide
19 Working days
20 year warranty

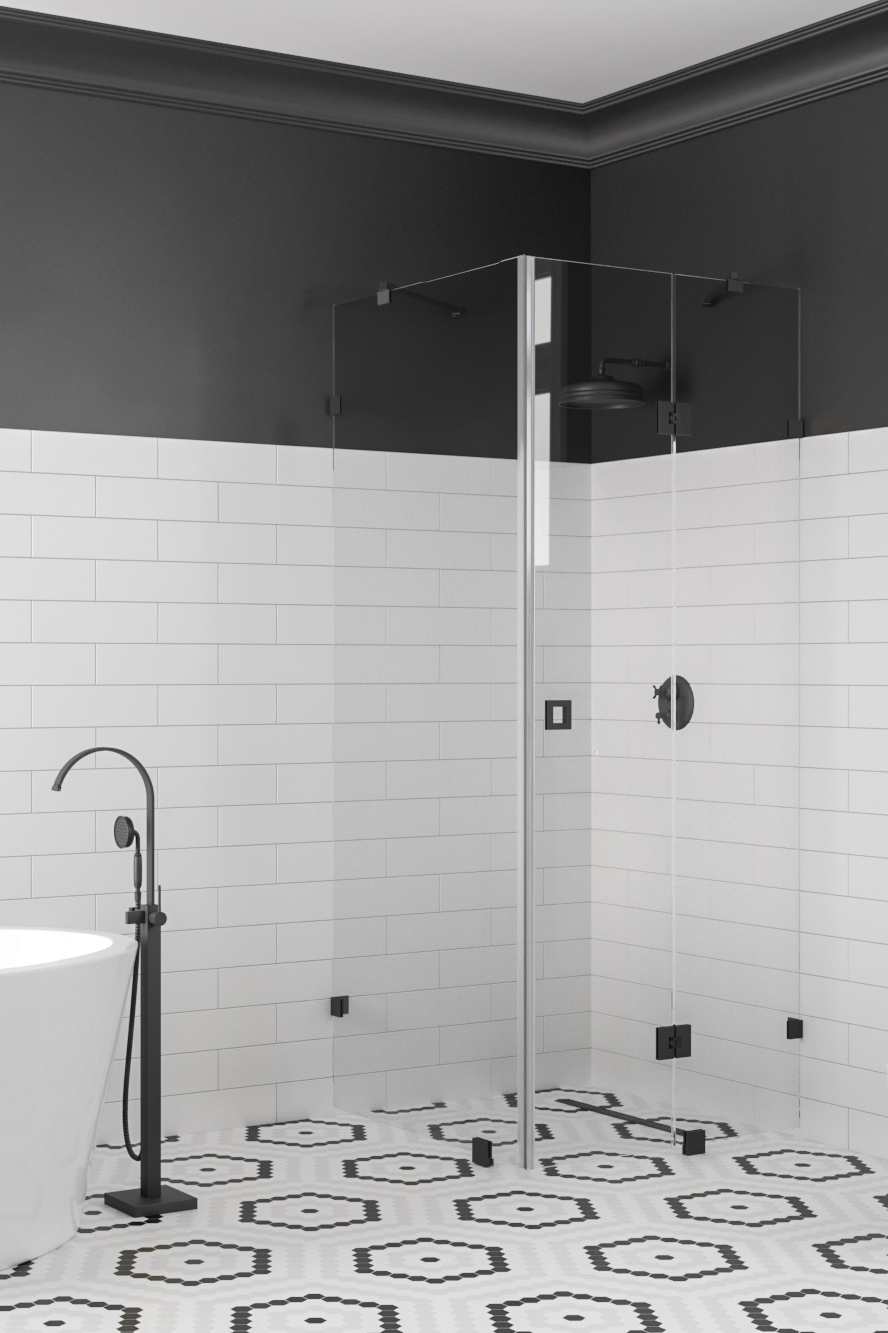

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.
The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.
The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.
Product size

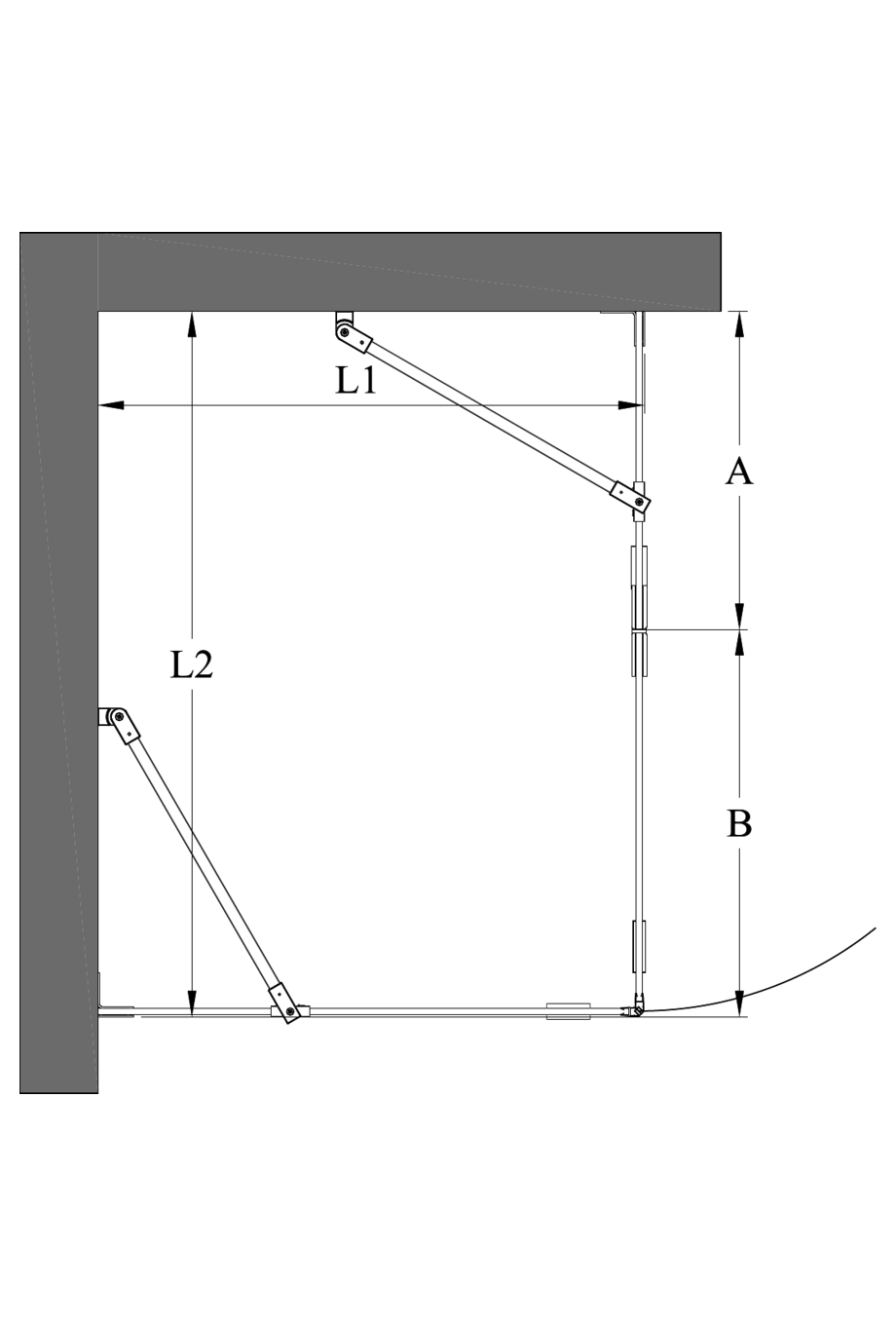

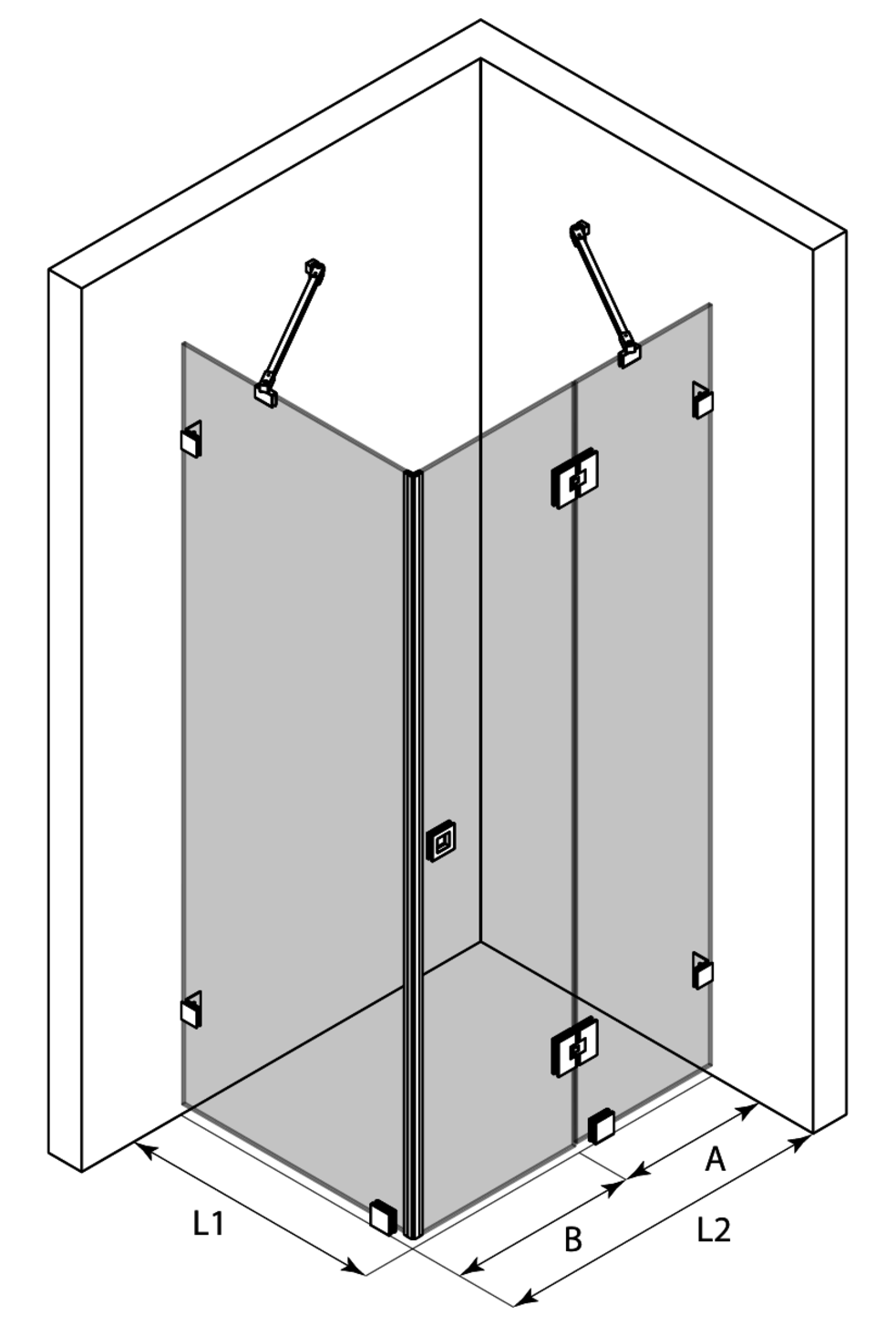

The installation dimensions of the selected combination are:
- Side L1 : 400mm
- Side L2 : 703mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm. An extension step can be placed under the glass clamp to raise it by 10mm.
Choose handle
Product
Product code
Price
1
Vetro 542 (511x514)
Product code
542-21-424
Price
0.00 €
2
Vetro 511 Shower enclosure fixed screen
Chrome plated/Transparent/L1=400 x 2000
Product code
511 21 0038
Price
451.00 €
3
Vetro 514 Shower enclosure fixed screen
Chrome plated/Transparent/A=305 x 2000
Product code
514 21 0030
Price
357.00 €
4
Vetro 514 Shower enclosure hinged door
Chrome plated/Transparent/B=398 x 2000
Product code
514 21 1038
Price
357.00 €
5
Magnet seal pair
Product code
915 2L 0004
Price
42.00 €
6
Round handle
Product code
Y45 2L MMMM
Price
27.00 €
7
TOTAL
Product code
Price
1234.00 €
The installation dimensions of the selected combination are:
- Side L1 : 400mm
- Side L2 : 703mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible. Note! The parts of the shower enclosure may also be installed in the opposite direction than presented in the layout.:
