Vetro 546 (513x513)

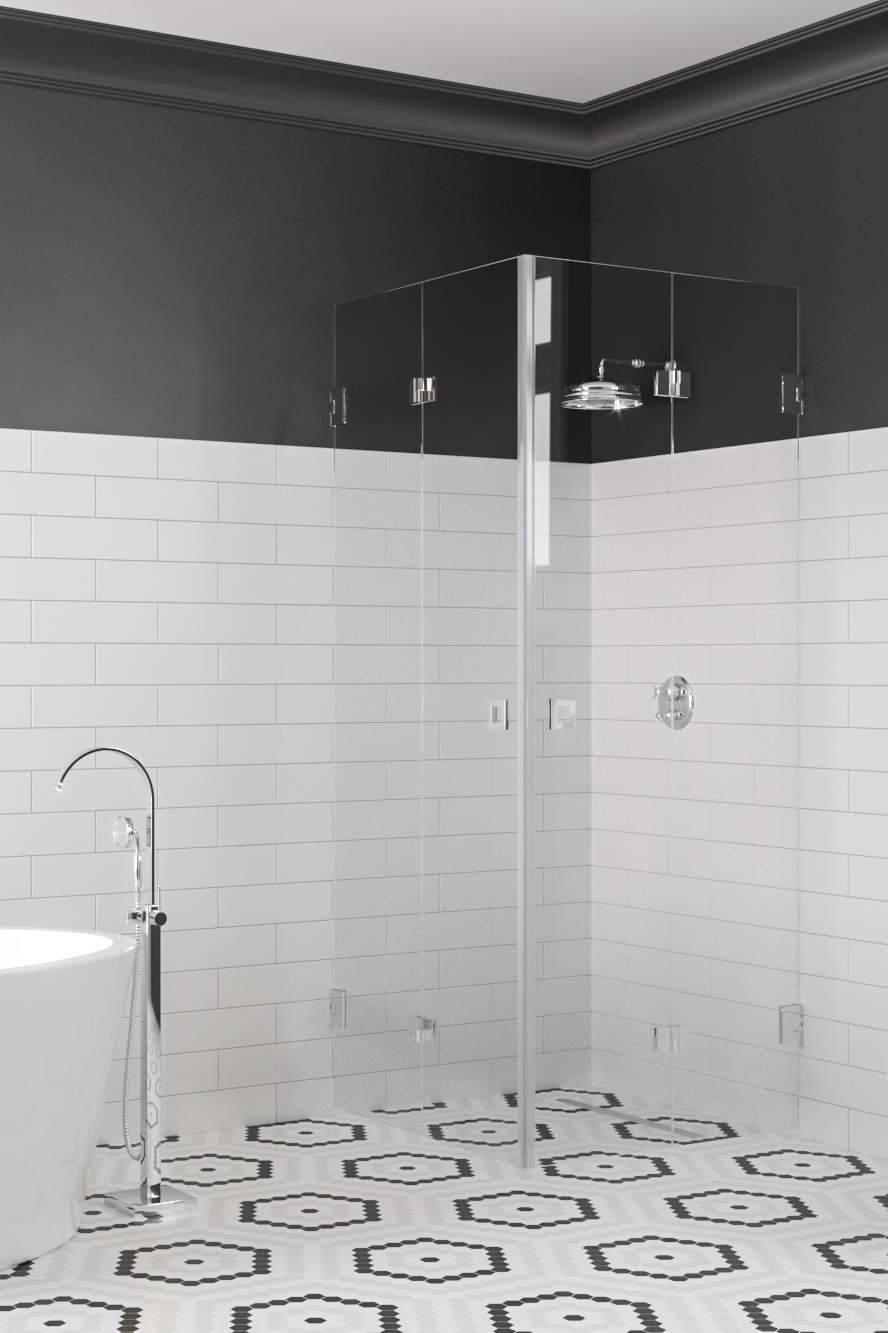

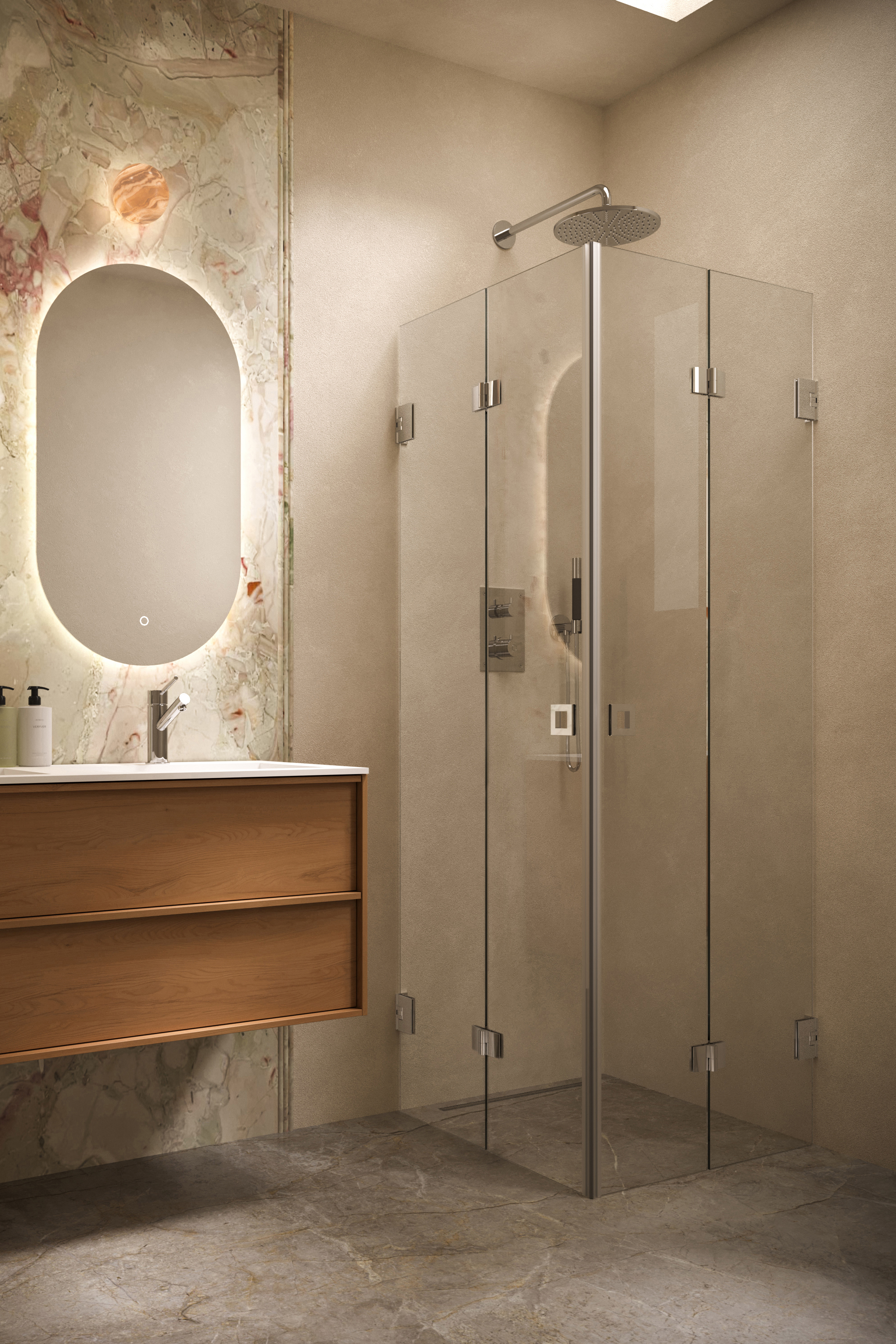

Shower enclosure with folding doors

The shower enclosure consists of two folding doors. The product is well-suited for a shower corner where doors may not have the space to properly open outwards. The folding door does not require space for opening from outside the shower area; instead, the door folds inside the shower area, with the door panels folding into a small space against the wall of the building. The doors can be dimensioned symmetrically or so that the doors are of different sizes. When the shower is not in use the doors can be turned in against the building walls. Doors rotate 90 degrees in both directions and are equipped with adjustable centring. The centring attempts to return the door back to the open and closed positions. In addition, the outermost panels turn in relation to the innermost panels so that the panels of the doors fold against each other to the internal side of the shower area. A magnet seal keeps the door tightly closed during showering.

The hinges of the door panels are mounted directly to the building wall. Floor seals can be installed along the bottom edge of the door panels, which restricts the flow of water. Installation guide

Icon

19 Working days

Icon

20 year warranty

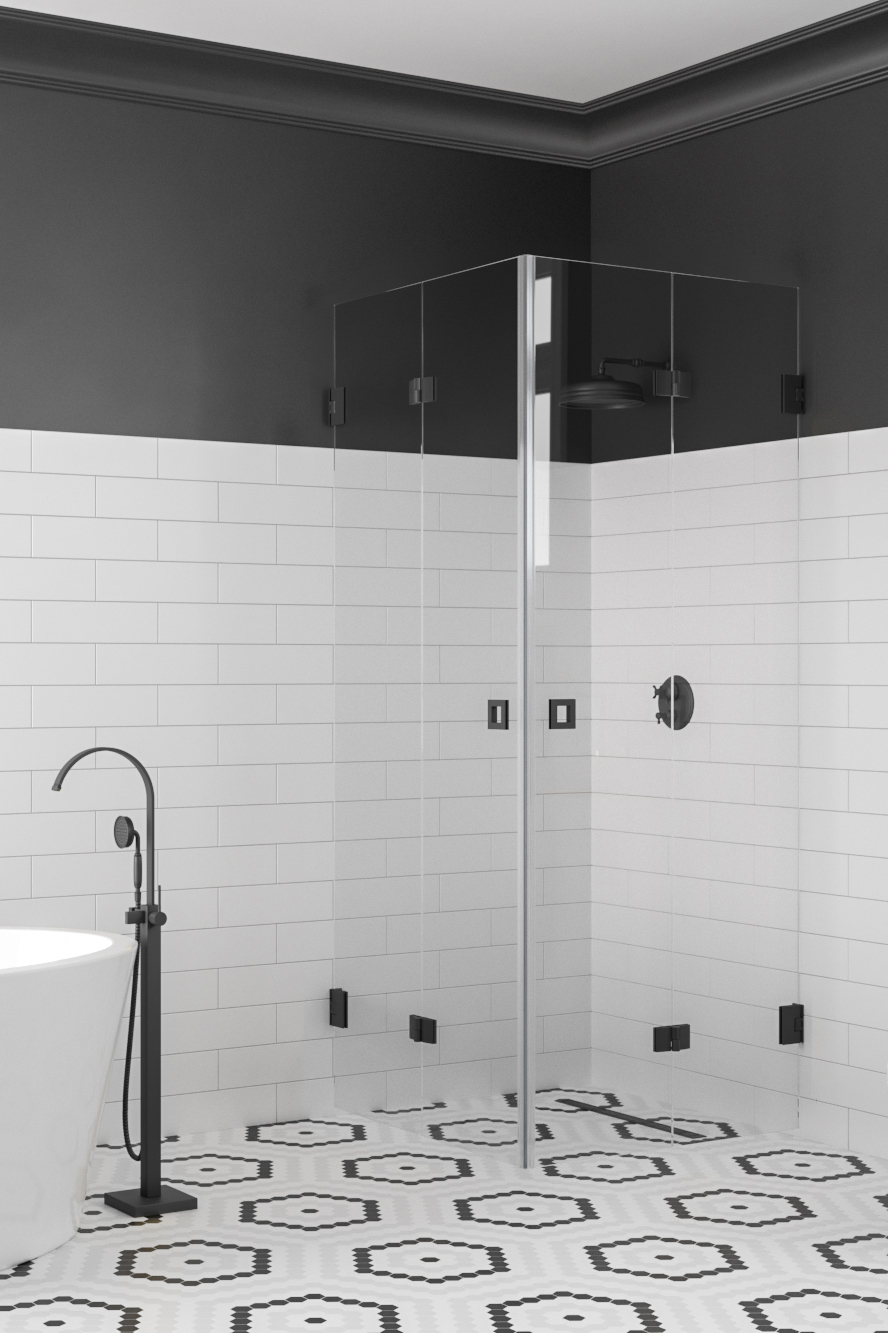

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower enclosure can be selected from the standard dimensions or it can be manufactured custom dimensions.

Product size

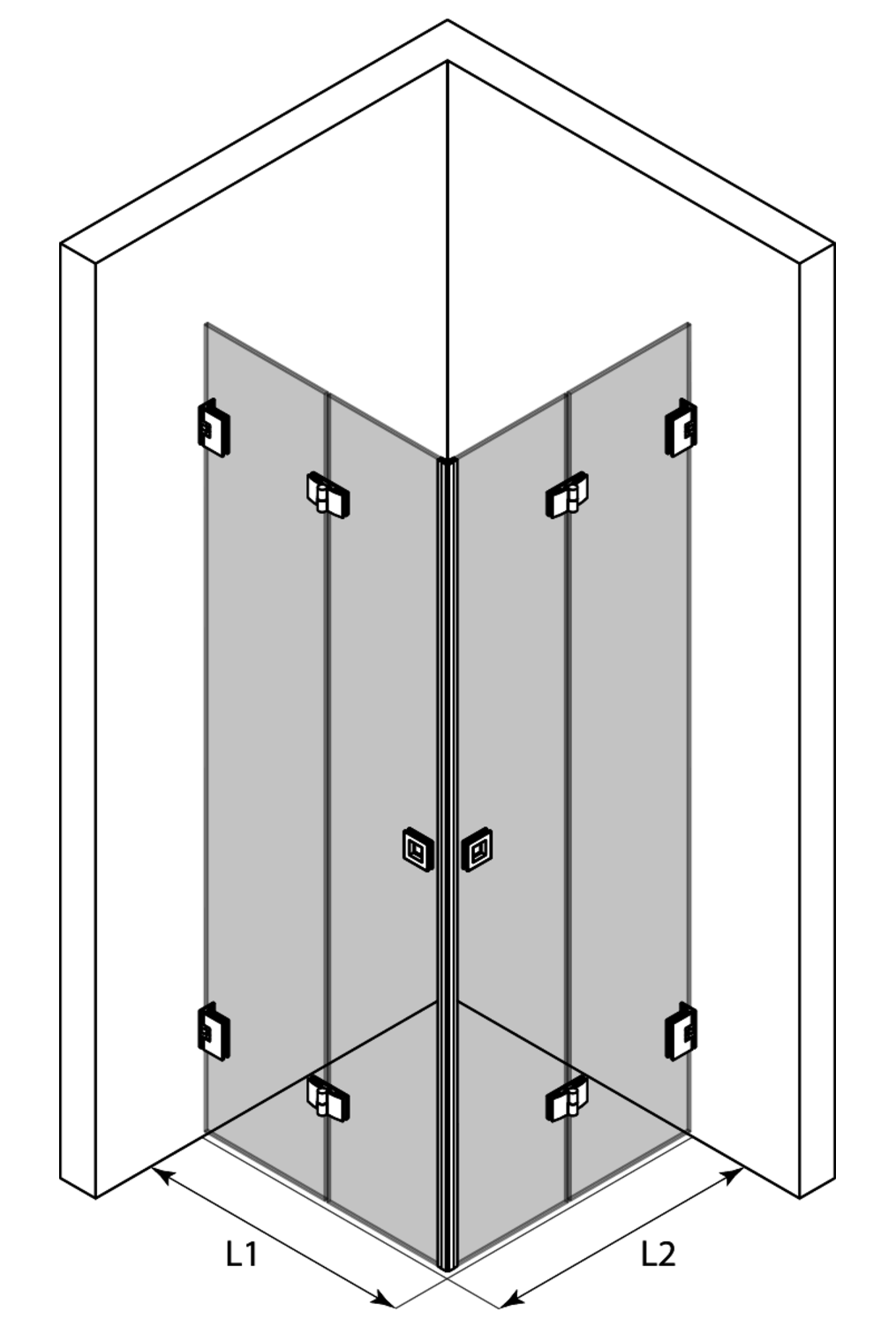

Shower enclosure folding door (L1)

X

Shower enclosure folding door (L2)

X

The installation dimensions of the selected combination are:
- Side L1 : 705mm
- Side L2 : 705mm

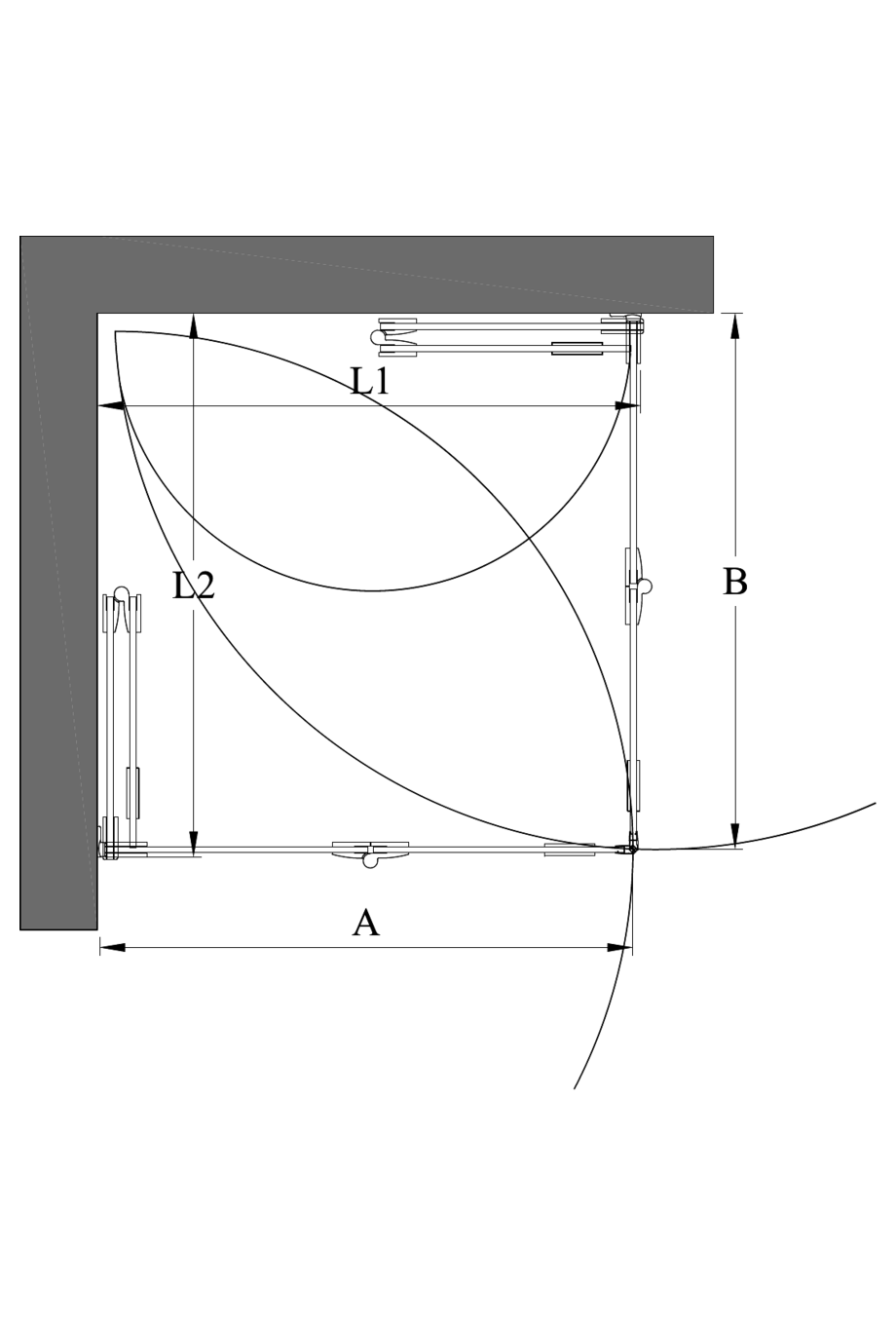

Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:


The product is supplied as standard with a 33 mm high floor seal. The optional accessories are a 50 mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000 mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10 mm and its width is 16 mm.

Choose handle

The middle hinges of the folding door have handedness. When ordering, you must choose whether the folding door is to be installed to the left or the right side when viewed from outside of the shower area. Changing handedness afterwards requires changing the middle hinges initially installed in the factory with others.

Product

Product code

Price

1

Vetro 546 (513x513)

Product code

546-21-22

Price

0.00 €

2

Vetro 513 Shower enclosure folding door
Chrome plated/Transparent/L1=705 x 2000

Product code

513 21 0068

Price

535.00 €

3

Vetro 513 Shower enclosure folding door
Chrome plated/Transparent/L2=705 x 2000

Product code

513 21 0068

Price

535.00 €

4

Magnet seal pair

Product code

915 2L 0002

Price

42.00 €

5

Round handle

Product code

Y45 2L MMMM

Price

27.00 €

6

Door L1 left, Door L2 right

Product code

962 RL MMMM

Price

0.00 €

7

Round handle

Product code

Y45 2L MMMM

Price

27.00 €

8

TOTAL

Product code

Price

1166.00 €

The installation dimensions of the selected combination are:
- Side L1 : 705mm
- Side L2 : 705mm
Installation dimension means the location of the outermost edge of the fitting mounted to the wall on the building wall measured from the corner of the shower area. The product does not include width adjustment options, therefore wall mountedsurfaces should be as straight as possible.:

EAN:
