Vetro 561

U-shaped enclosure with two fixed walls and a folding door

The enclosure consists of two fixed walls and a folding door. The product is assembled with hinges on all corners to create a frameless look.

Fixed wall and door are attached to the wall of the building from the sides by means of wall mounted fittings and hinges. The fixed wall is supported from the top edge by a brace installed in the corner and from the bottom edge by a fitting glued to the floor. Between the panel of the fixed wall and the floor will be a 25mm high gap. Between the panel and the floor may be installed a seal (standard part) in order to prevent water from passing through under the panel. Floor seals (standard equipment) can be installed at the bottom edges of the door panels, which will restrict the flow of water. Installation guide

Icon

26 Working days

Icon

20 year warranty

The fittings used in the product, like square foot and brace bars, are manufactured of brass alloy. Surface treatment options is chrome plated.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The showercorner is manufactured according to custom measures.

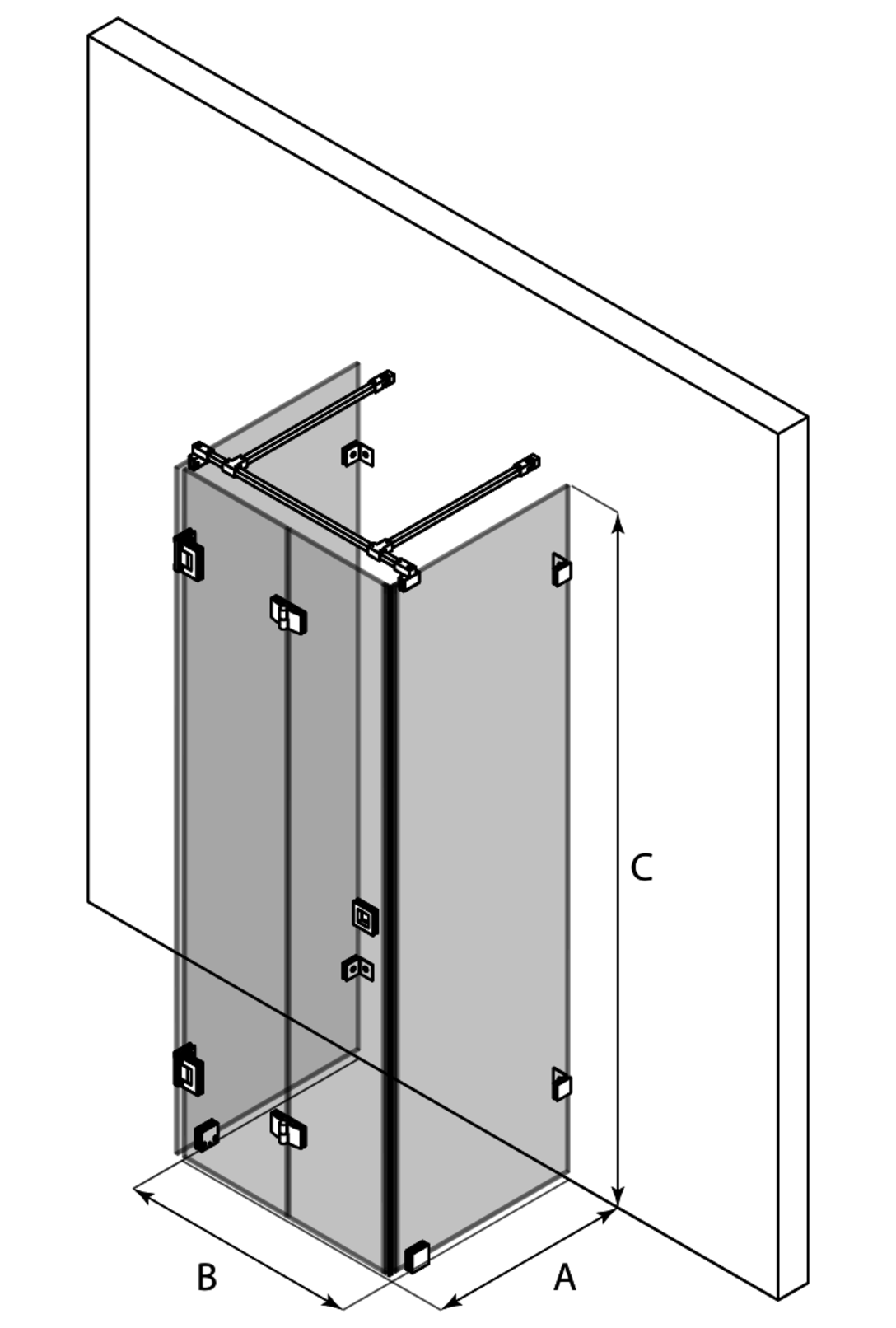

Product size

:


If the size of the door exceeds 1.7m2 an additional hinge is necessary to provide additional support. The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site.

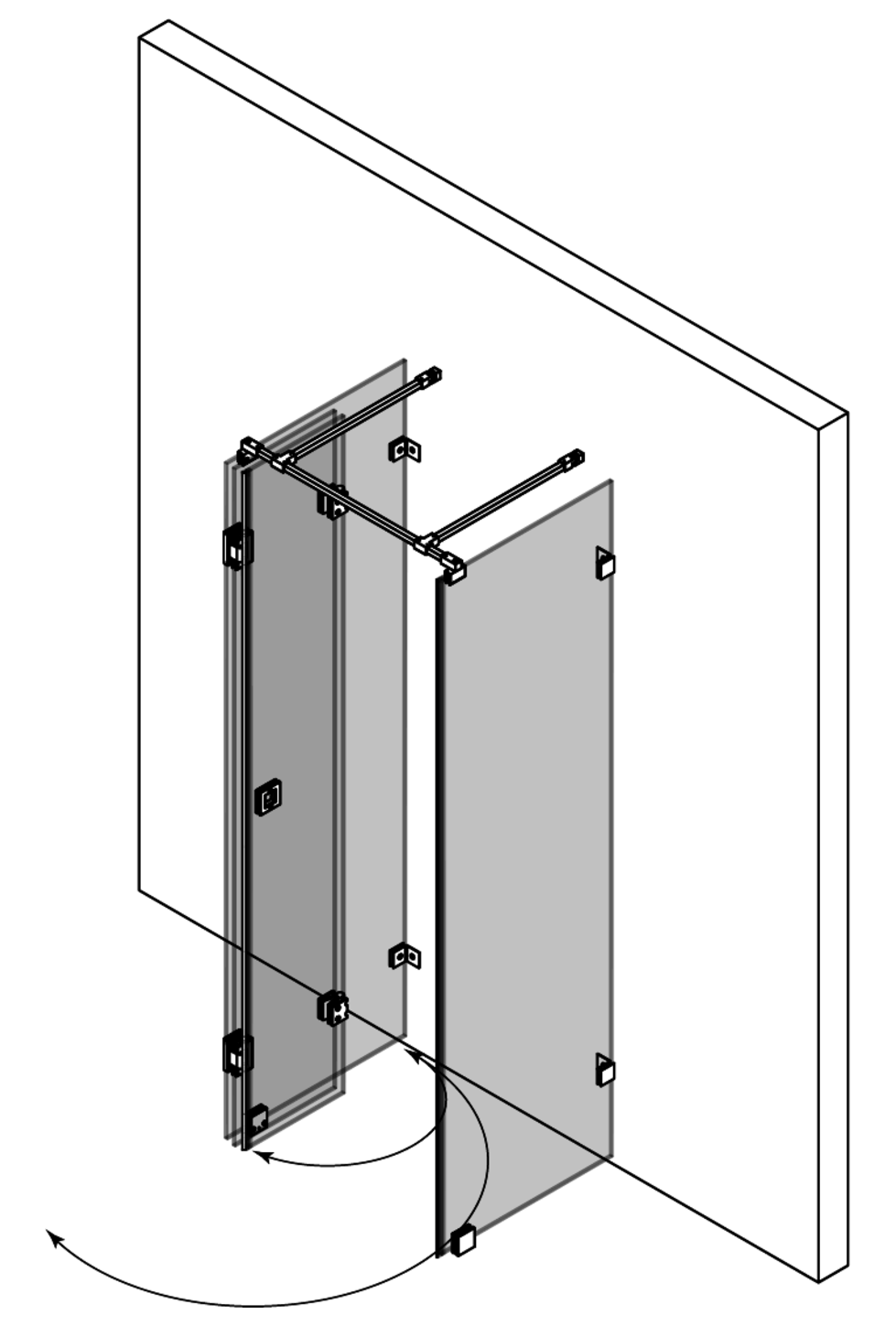

The middle hinges of the folding door have handedness. When ordering, you must choose whether the folding door is to be installed to the left or the right side when viewed from outside of the shower area. Changing handedness afterwards requires changing the middle hinges initially installed in the factory with others. The default option is for the door panel to be opened to the left( as shown in image). If the size of the door exceeds 1.7m2 an additional hinge is necessary to provide additional support.

Product

Product code

Price

1

Vetro 561

Product code

561-21-000

Price

2410.00 €

2

Vetro 514 Fixed screen
Chrome plated/Transparent=605 x 2000

Product code

530 21 0000

Price

0.00 €

3

Vetro 513 Folding door
Chrome plated/Transparent=683 x 2000

Product code

533 21 0000

Price

0.00 €

4

Vetro 511 Handle side panel
Chrome plated/Transparent=578 x 2000

Product code

532 21 0000

Price

0.00 €

5

Support bar

Product code

90B 2L MMMM

Price

0.00 €

6

Magnet seal pair

Product code

915 2L 0000

Price

0.00 €

7

TOTAL

Product code

Price

2410.00 €

:

EAN:
