Vetro 514

Hinged shower screen with a fixed part

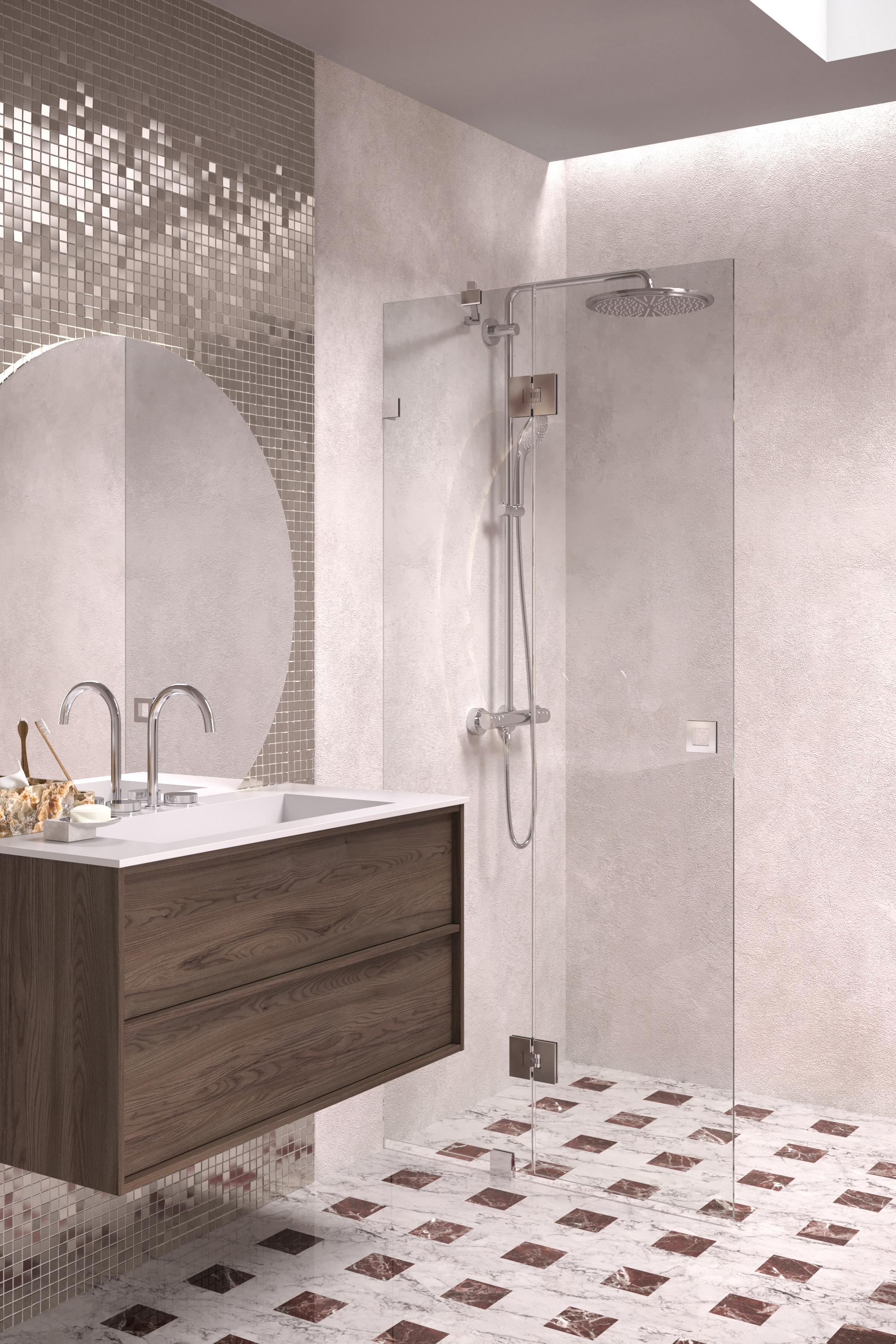

The shower screen consisting of a fixed part and of a hinged part hinged to it the shower screen protects the space and the fixtures next to the shower from splashing water. The fixed part efficiently restricts water and when the shower is not in use the hinged part can be turned to the side. Due to the combination of the fixed and the hinged part the shower screen can be dimensioned also in a cramped space so that the hinged part does not hit other fixtures.

The hinged part of the shower screen turns 90 degrees in both directions and is equipped with adjustable centring. The centring attempts to return the hinged part back to the open and closed positions.

Shower screen is attached by its sides to the building wall by means of wall mountedfittings. The fixed part is supported from the top edge with the brace installed in the corner and from the bottom corner with the fitting glued to the floor. Between the panel of the fixed part and the floor will be a 25mm high gap. Between the panel and the floor may be installed a seal (standard part) , so that water will not be able to flow under the panel. A floor seal can be installed in the bottom edge of the swinging part, which restricts the flow of water. Installation guide

Icon

19 Working days

Icon

20 year warranty

The fittings used in the product are manufactured of brass alloy. Surface treatment options are chrome plated, brass and black painted.

The product is manufactured of 8mm thick clear tempered safety panel (EN 12150). The safety panel can be treated in the factory with a Cranith calcification prevention coating. The coating enables the panel to stay clean easier.

The size of the shower screen can be selected from the standard dimensions or it can be manufactured custom dimensions.

Product size

Shower screen fixed part (A)

X

Shower screen hinged part (B)

X

The total width of the selected product is 681mm.:


The product is supplied as standard with a 28mm high floor seal. The optional accessories are a 50mm high floor seal for shower areas where the floor tilting is higher than normal. The length of the floor seal is 1000mm and it is cut to a suitable length on site. The watertight quality of the product can be improved by installing a step profile under the door. The step profile is cut into a suitable length on the side and glued to the floor. The height of a shaped step profile is 10mm and its width is 16mm. An extension step can be placed under the glass clamp to raise it by 10mm.
